Clutch Controls
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

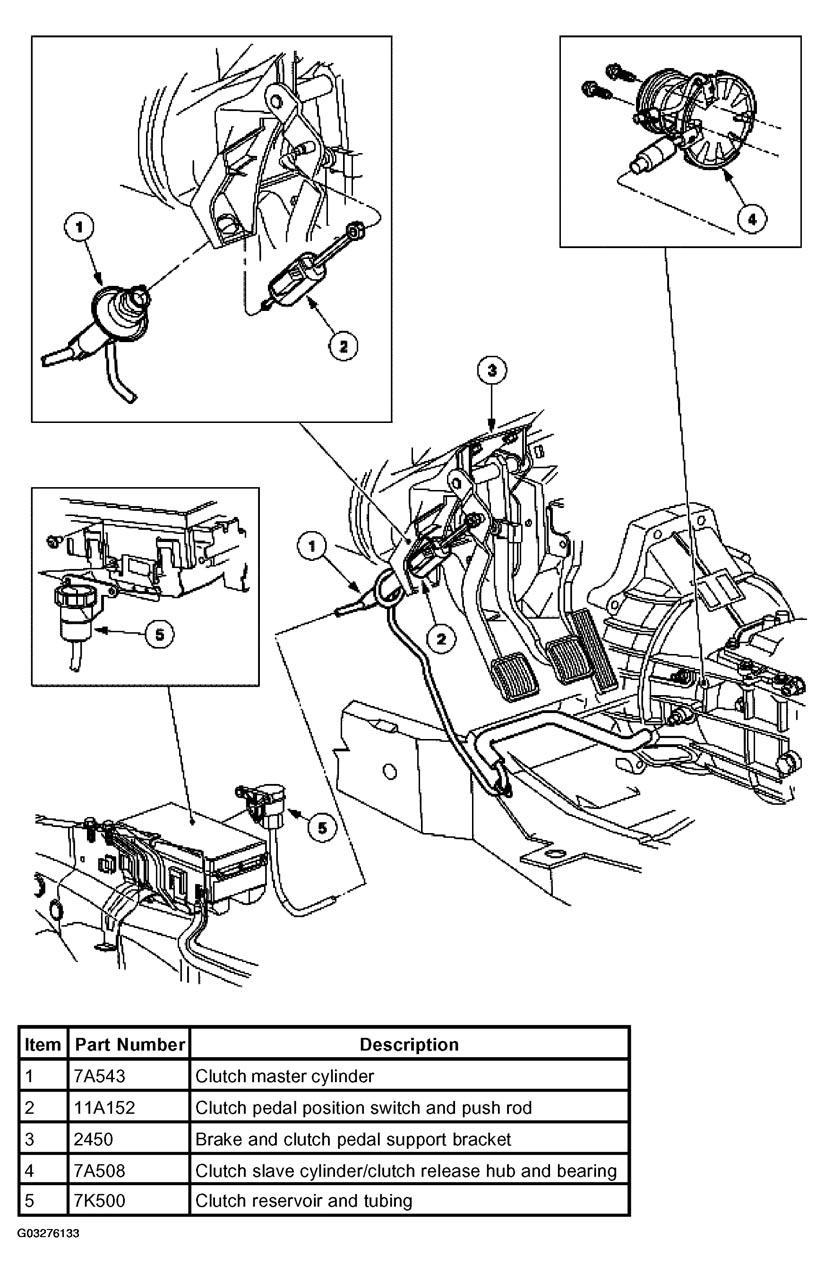

The clutch control system consists of the following components:
The clutch control system actuates the clutch system. When the clutch pedal is depressed it pushes the clutch master cylinder plunger which transmits hydraulic pressure to the clutch slave cylinder. The clutch slave cylinder engages and compresses the clutch pressure plate diaphragm spring, releasing the pressure on the clutch disc which in turn disengages the transmission from the engine.
- The hydraulic clutch system adjusts automatically to compensate for clutch disc wear.
- The clutch pedal position (CPP) switch is attached to the clutch pedal via the push rod assembly. Depressing the clutch pedal manually closes the switch and allows engine cranking. The switch also deactivates the speed control system and signals the EEC module when the clutch pedal is depressed.
