Protocol 3
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

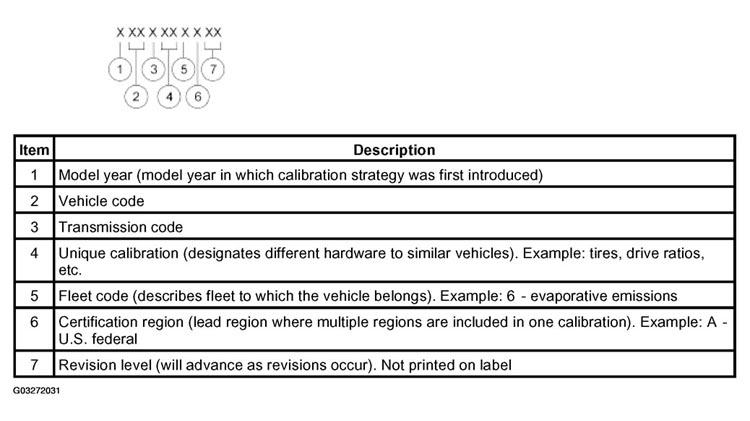

The following offers a more detailed explanation of the coding strategy for Protocol 3.
MODEL YEAR
- 0 - 2000
- 1 - 2001
- 2 - 2002
- 3 - 2003
- 4 - 2004
VEHICLE LINE
TRANSMISSION
- 1 - Automatic transmission
- 2 - Manual transmission
