Compass Zone Adjustment
WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

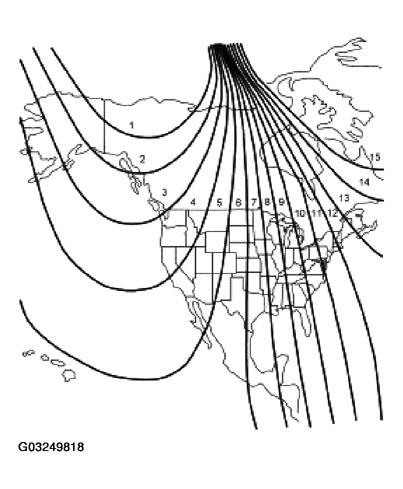

- Refer to the compass calibration zone map to select the correct compass zone setting for your geographical location.
- Turn the ignition key to the ON position.
- Press and release the MODE button until the compass directional heading is displayed.
- Hold down the MODE button for 5 seconds to enter ZONE mode.
- The display will read PRESS RESET TO SET ZONE XX where XX is the current zone.
- Repeatedly press and release the RESET button to advance through the zones (1-15) until the desired zone is displayed.
- Press the MODE button to save the new zone setting and return to the compass normal mode.
NOTE:
The compass exits the zone setting mode and returns to its previous zone setting after one minute of no activity.
NOTE:
If power is interrupted during the zone setting process, the compass resets to the same zone it was set to before the zone change process was started.
