Pulley-Pump, On-Bench: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thread the forcing bolt into the power steering pump and turn the Steering Pump Pulley Replacer to install the pump pulley.

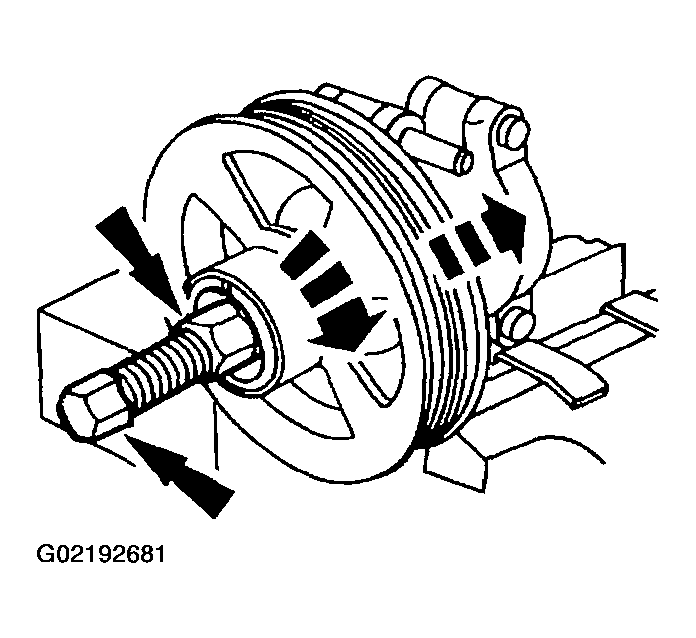

    Fig 1: Installing Pump Pulley
    G02192681Courtesy of FORD MOTOR CO.
  2. Install the power steering pump. Refer to PUMP .
