Removal And Installation: Hose: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. When connecting a fitting with a seal ring, the ring must be replaced.
    • The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.

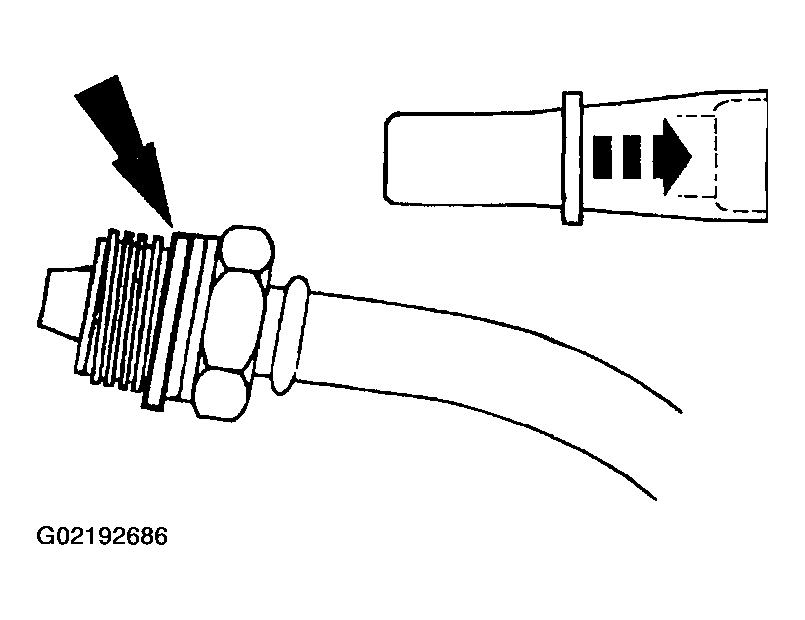

      Fig 1: Locating Seal Ring
      G02192686Courtesy of FORD MOTOR CO.
  2. Fill, purge and leak check the system. Refer to GENERAL PROCEDURES .
