Steering System Components

WARNING: This page is about a different car, the 2002 Ford Pickup and 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

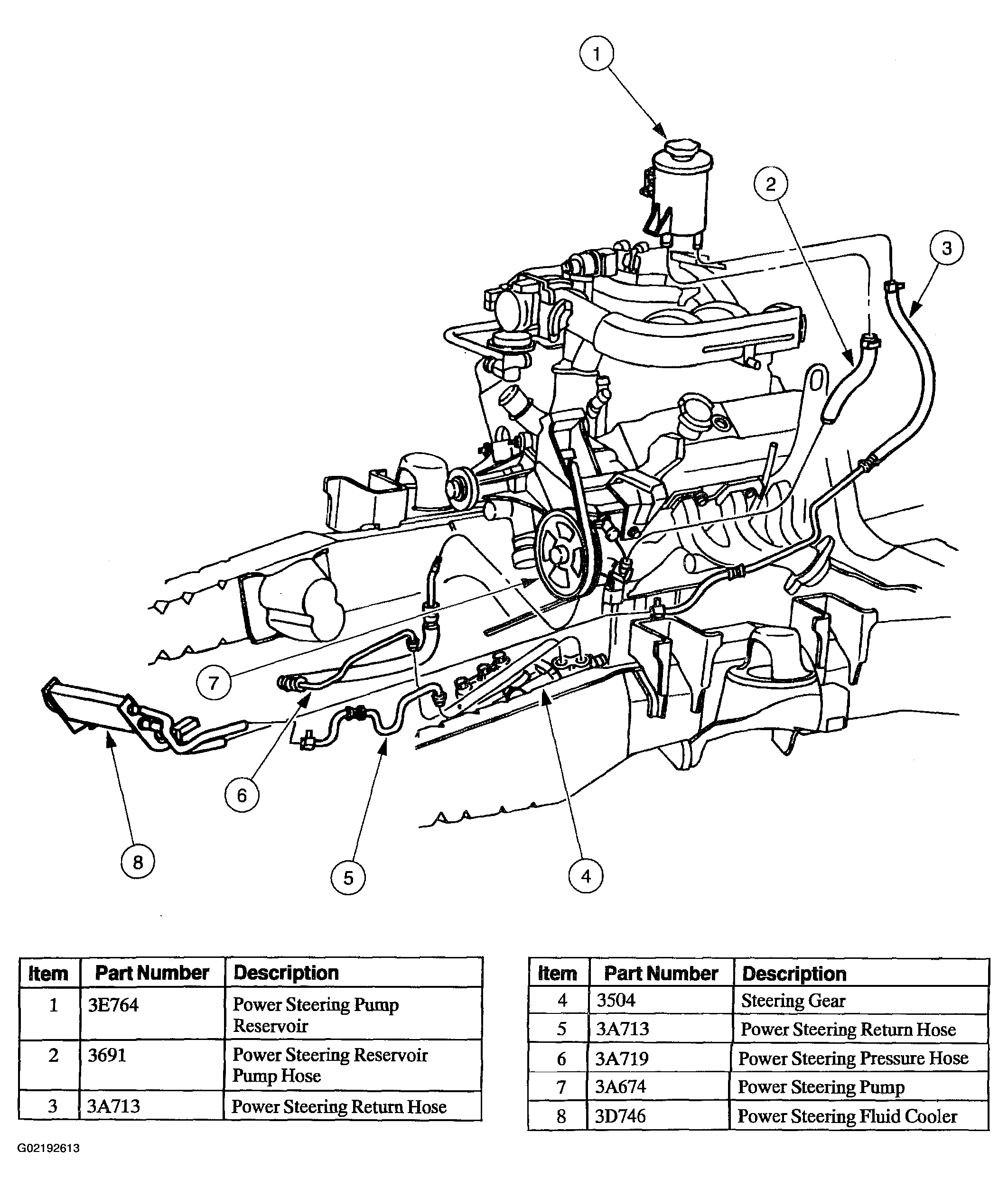

Fig 1: Identifying Steering System Components

Courtesy of FORD MOTOR CO.

For information on the power steering pump reservoir (3E764), refer to POWER STEERING SYSTEM - F150 for 2001, or POWER STEERING for 2002 .

For information on the steering wheel and column assembly, refer to STEERING COLUMN - TRUCKS - EXCEPT ESCAPE, EXCURSION, E350, F250/350/450/550 SUPER DUTY & STRIPPED CHASSIS for 2001, or STEERING COLUMN for 2002.

For information on the power steering fluid lines, refer to POWER STEERING SYSTEM - F150 for 2001, or POWER STEERING for 2002.

For information on the front wheel spindles (4x2), Refer to FRONT - 2WD - F150 PICKUP .

For information on the power steering fluid cooler (3D746), refer to POWER STEERING SYSTEM - F150 for 2001, or POWER STEERING for 2002.

For information on the power steering pump (3A674), refer to POWER STEERING SYSTEM - F150 for 2001, or POWER STEERING for 2002.

For information on the steering gear (3504), refer to POWER STEERING SYSTEM - F150 for 2001, or POWER STEERING for 2002.

For information on the steering linkage, Refer to STEERING LINKAGE .

For information on the wheel hub (1104) (4x4), Refer to FRONT - 4WD TORSION BAR .
