Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable. For additional information, see BATTERY DISCONNECT .
Remove the subwoofer assembly. See SUBWOOFER SPEAKER .
Remove the screws.

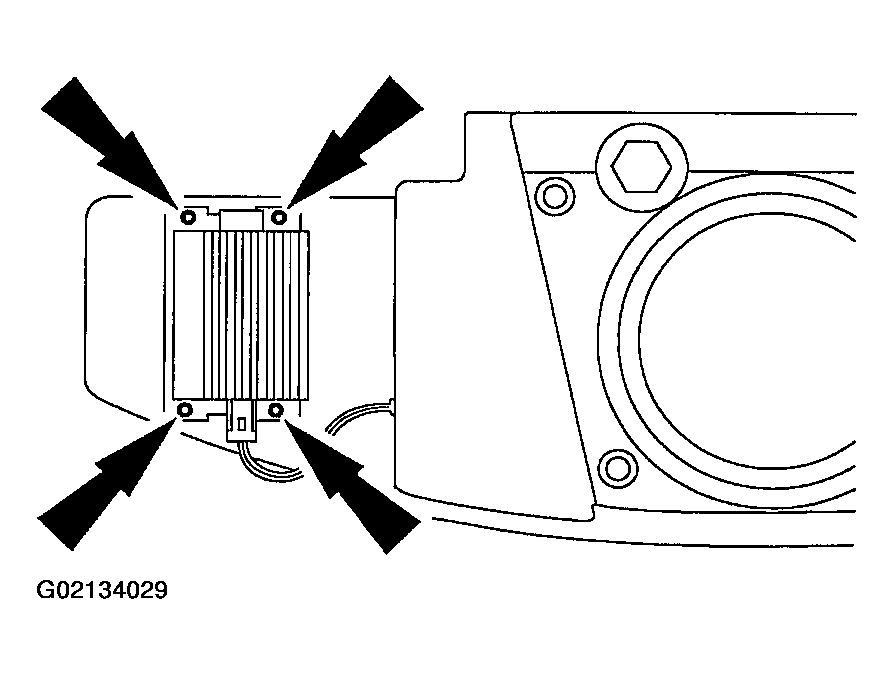

Fig 1: Removing Subwoofer Amplifier Screws
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

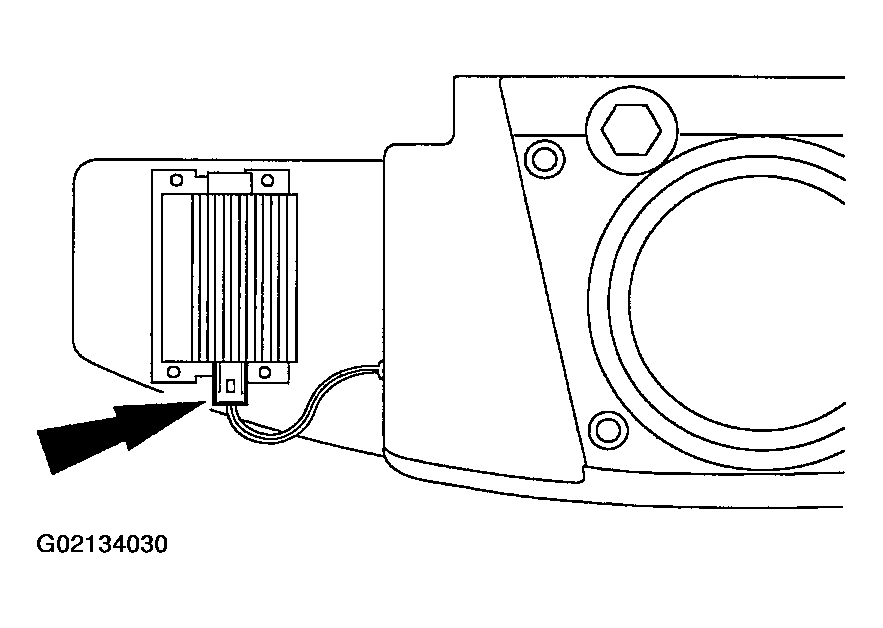

Fig 2: Disconnecting Subwoofer Amplifier Electrical Connector
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
