Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster finish panel.
Remove the in-vehicle temperature sensor.
1. Remove the screws.
2. Disconnect the aspirator hose and the in-vehicle temperature sensor electrical connector.
3. Remove the in-vehicle temperature sensor.

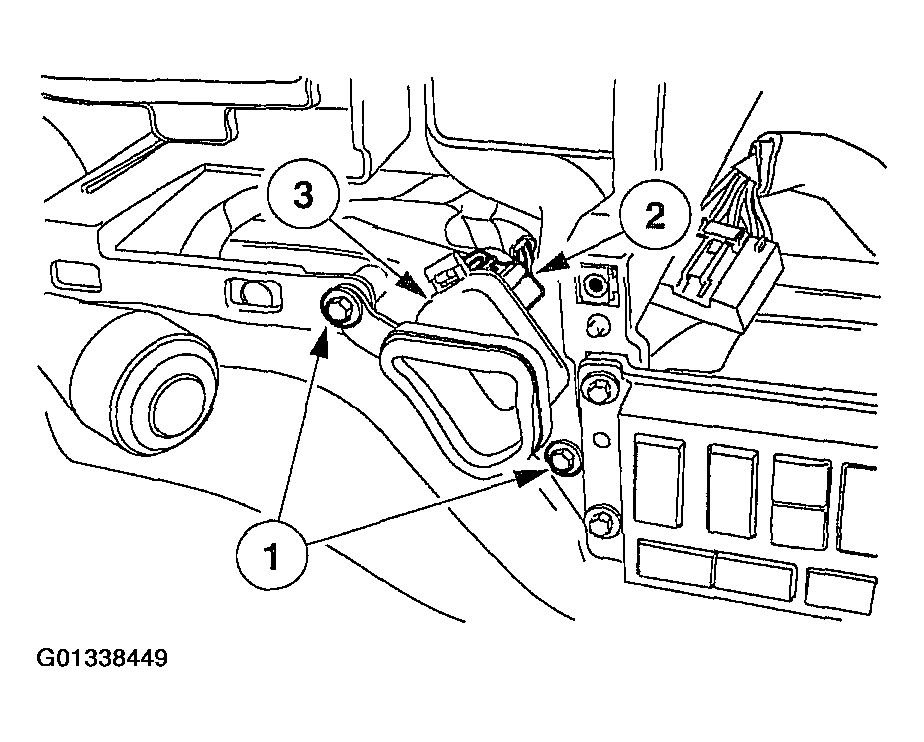

Fig 1: Removing In-Vehicle Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
