Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster finish panel.
  2. Remove the screws.

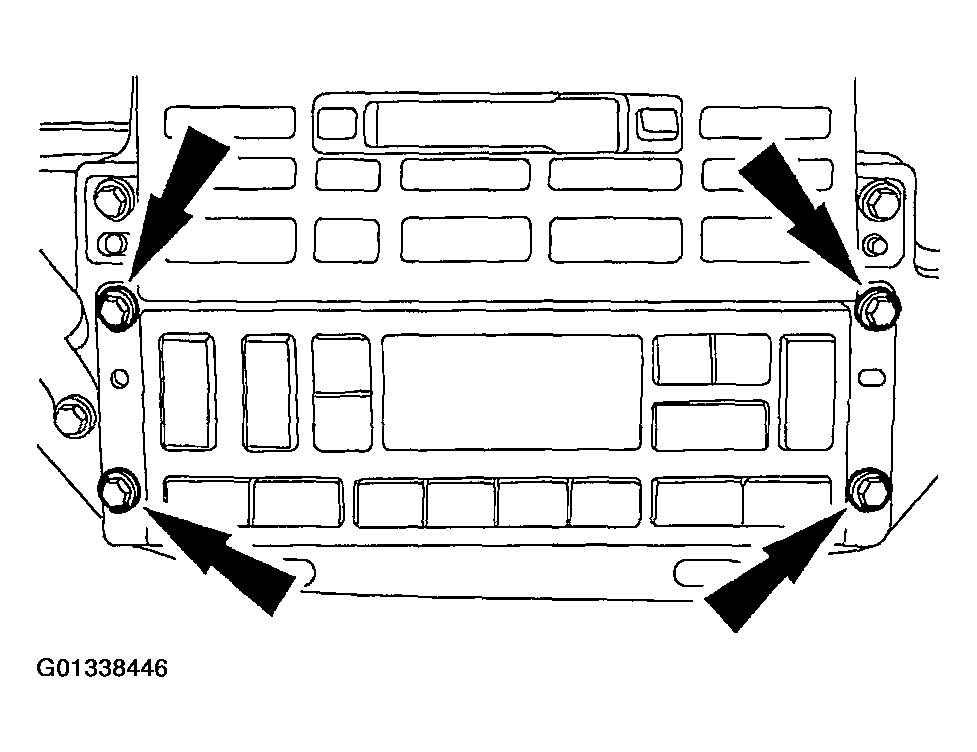

    Fig 1: Removing Climate Control Assembly Screws
    G01338446Courtesy of FORD MOTOR CO.
  3. Disconnect the climate control assembly electrical connectors and remove the climate control assembly.

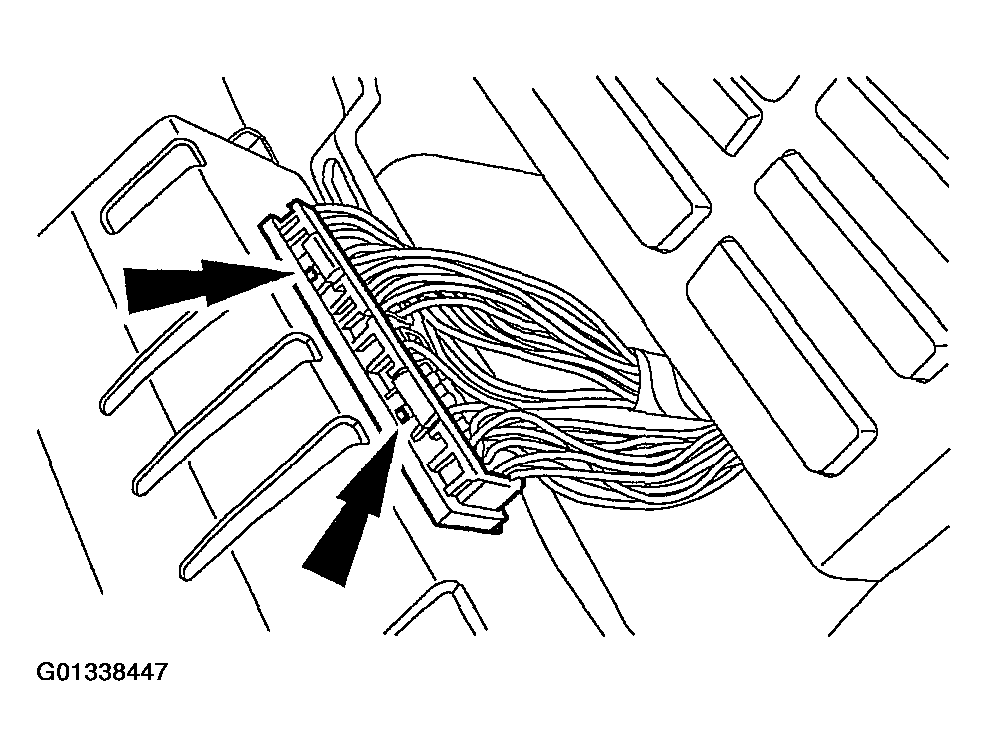

    Fig 2: Disconnecting Climate Control Assembly Electrical Connectors
    G01338447Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
