WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

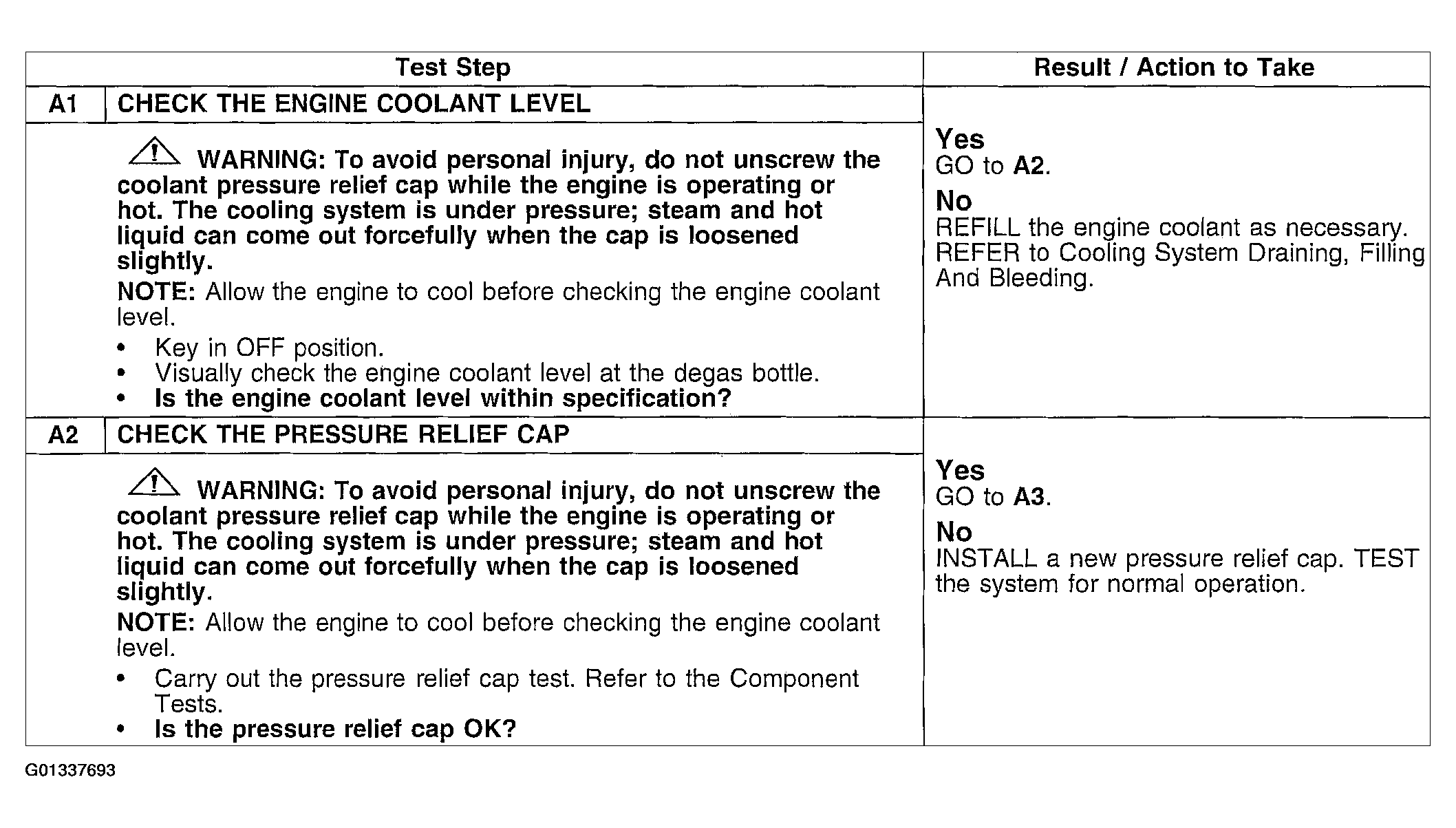

Fig 1: Pinpoint Test A: Loss Of Engine Coolant (1 Of 2)
Courtesy of FORD MOTOR CO.

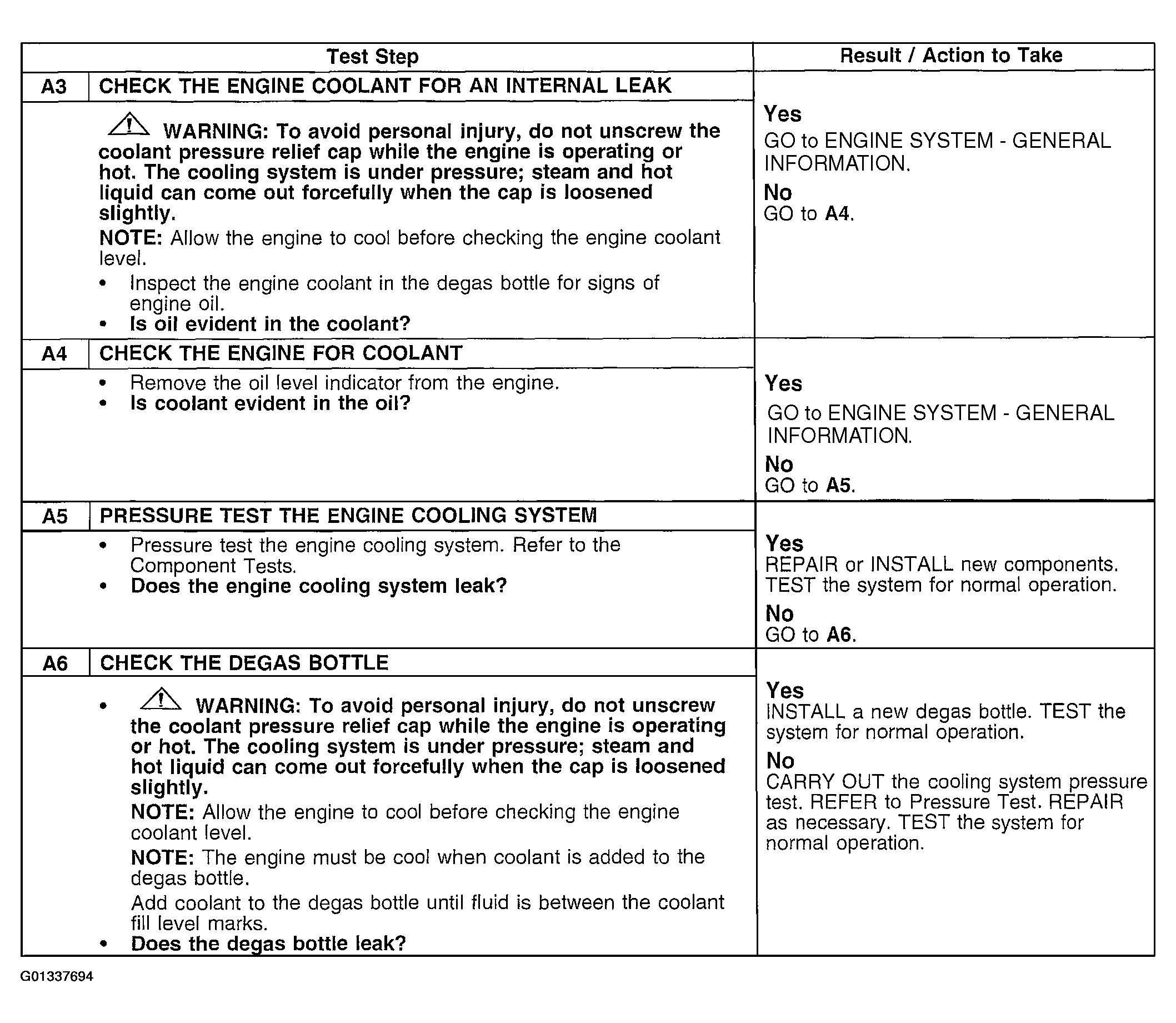

Fig 2: Pinpoint Test A: Loss Of Engine Coolant (2 Of 2)
Courtesy of FORD MOTOR CO.

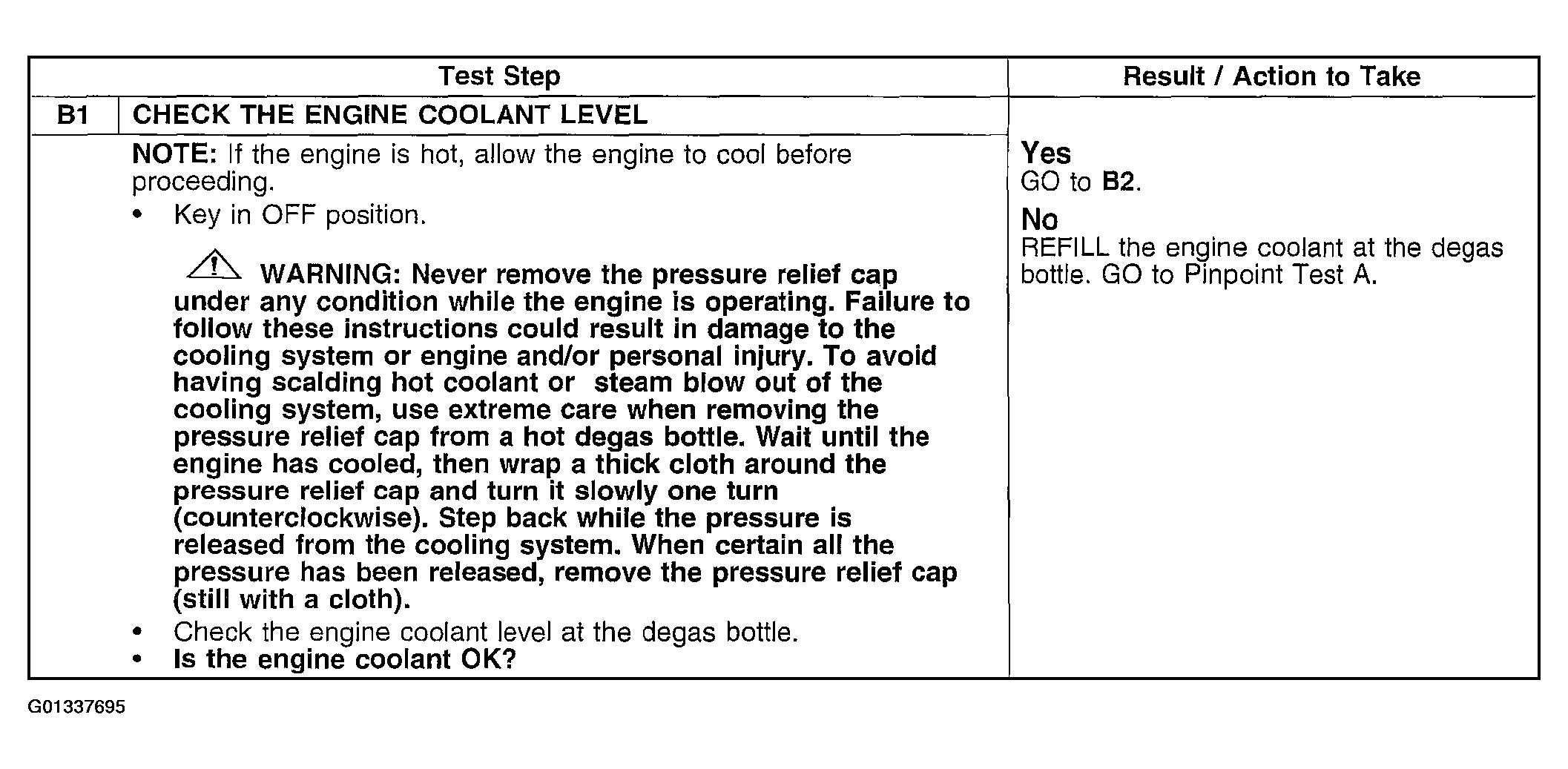

Fig 3: Pinpoint Test B: The Engine Overheats (1 Of 2)
Courtesy of FORD MOTOR CO.

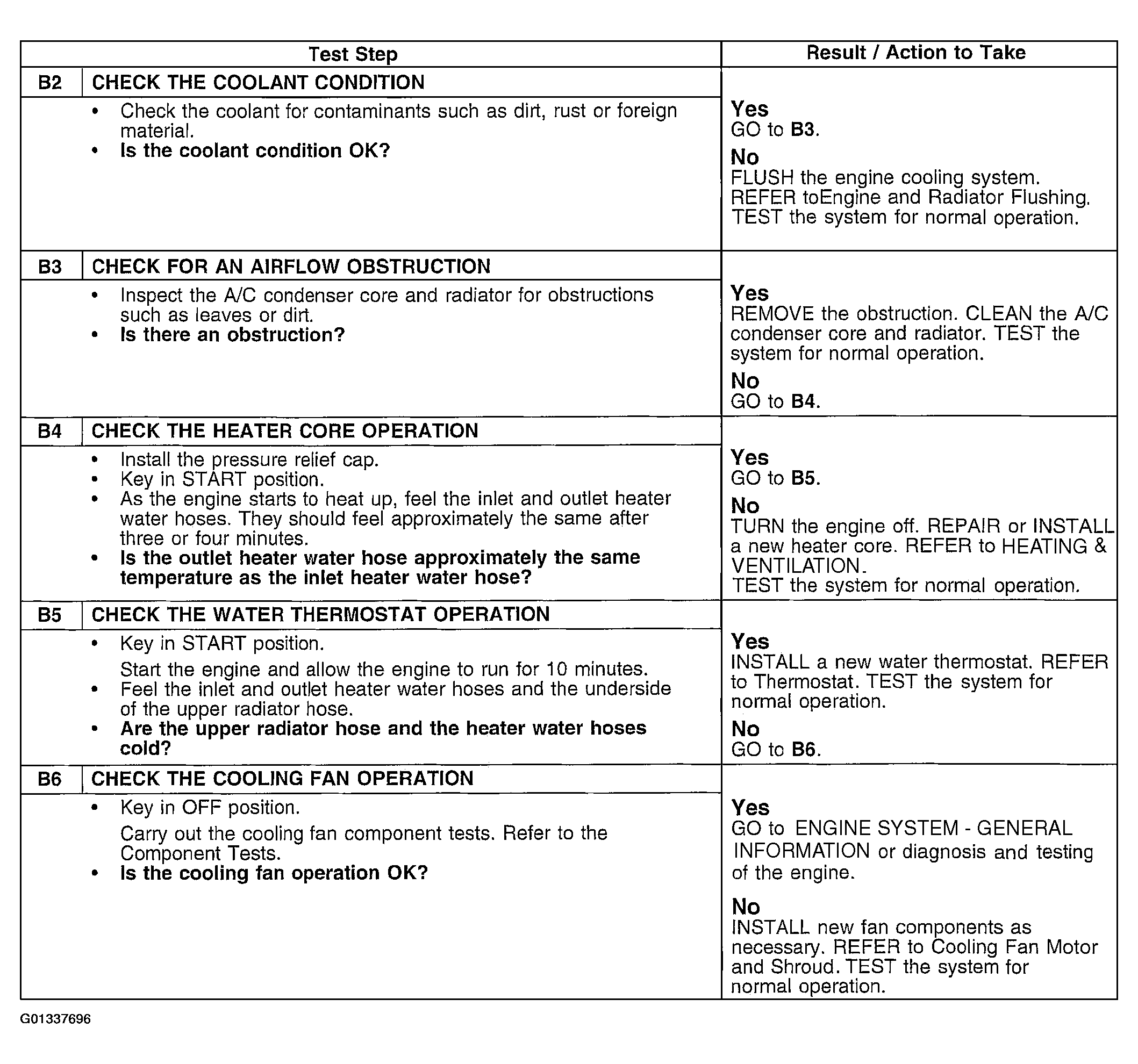

Fig 4: Pinpoint Test B: The Engine Overheats (2 Of 2)
Courtesy of FORD MOTOR CO.

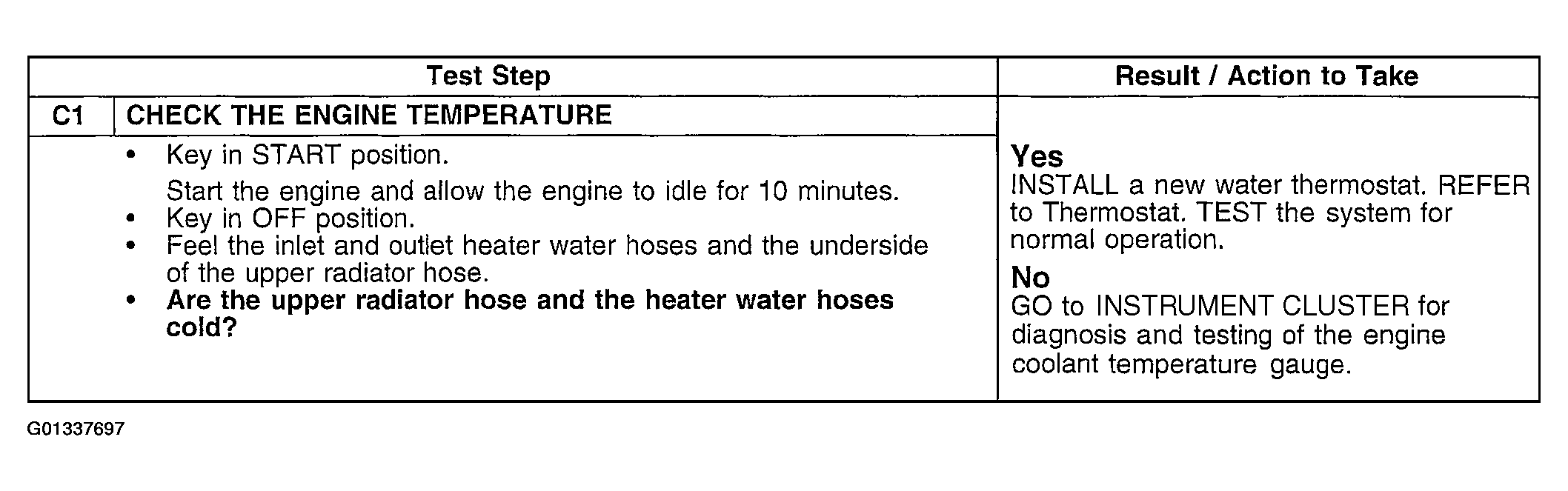

Fig 5: Pinpoint Test C: The Engine Does Not Reach Normal Operating Temperature
