Fittings - Vapor Tube: Connect

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the fitting and the tube for damage.
Remove any dirt or obstructions.
Push the tube into the fitting until it snaps in place.

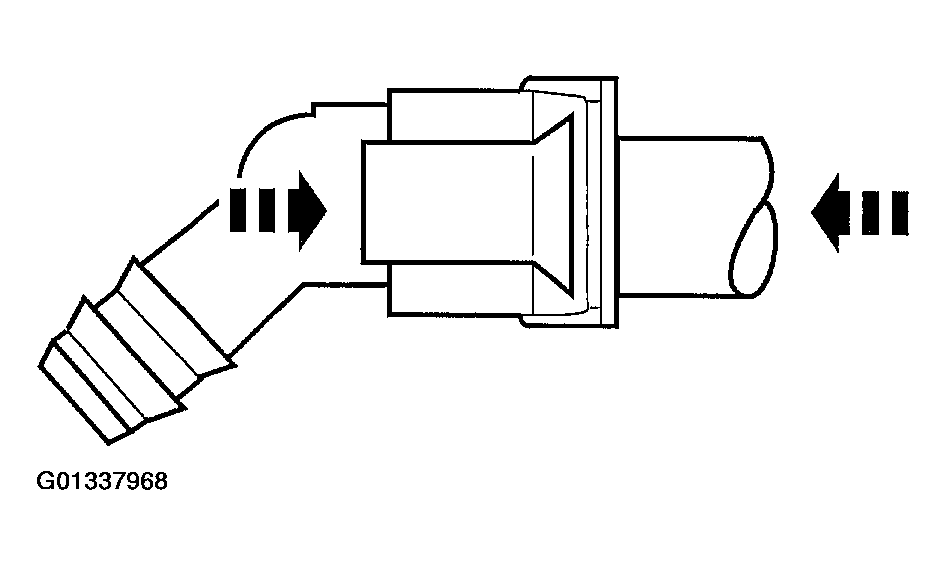

Fig 1: Connecting Vapor Tube Fitting
Courtesy of FORD MOTOR CO.
Pull on the connection to make sure the fitting is secure.

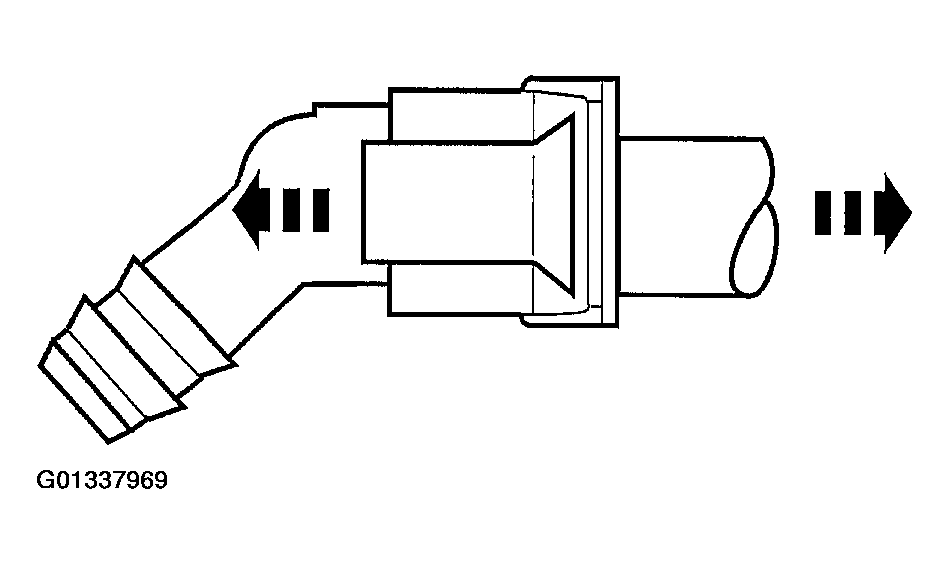

Fig 2: Checking Vapor Tube Fitting Connection
Courtesy of FORD MOTOR CO.
