Inertia Fuel Shutoff (IFS) Switch

  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

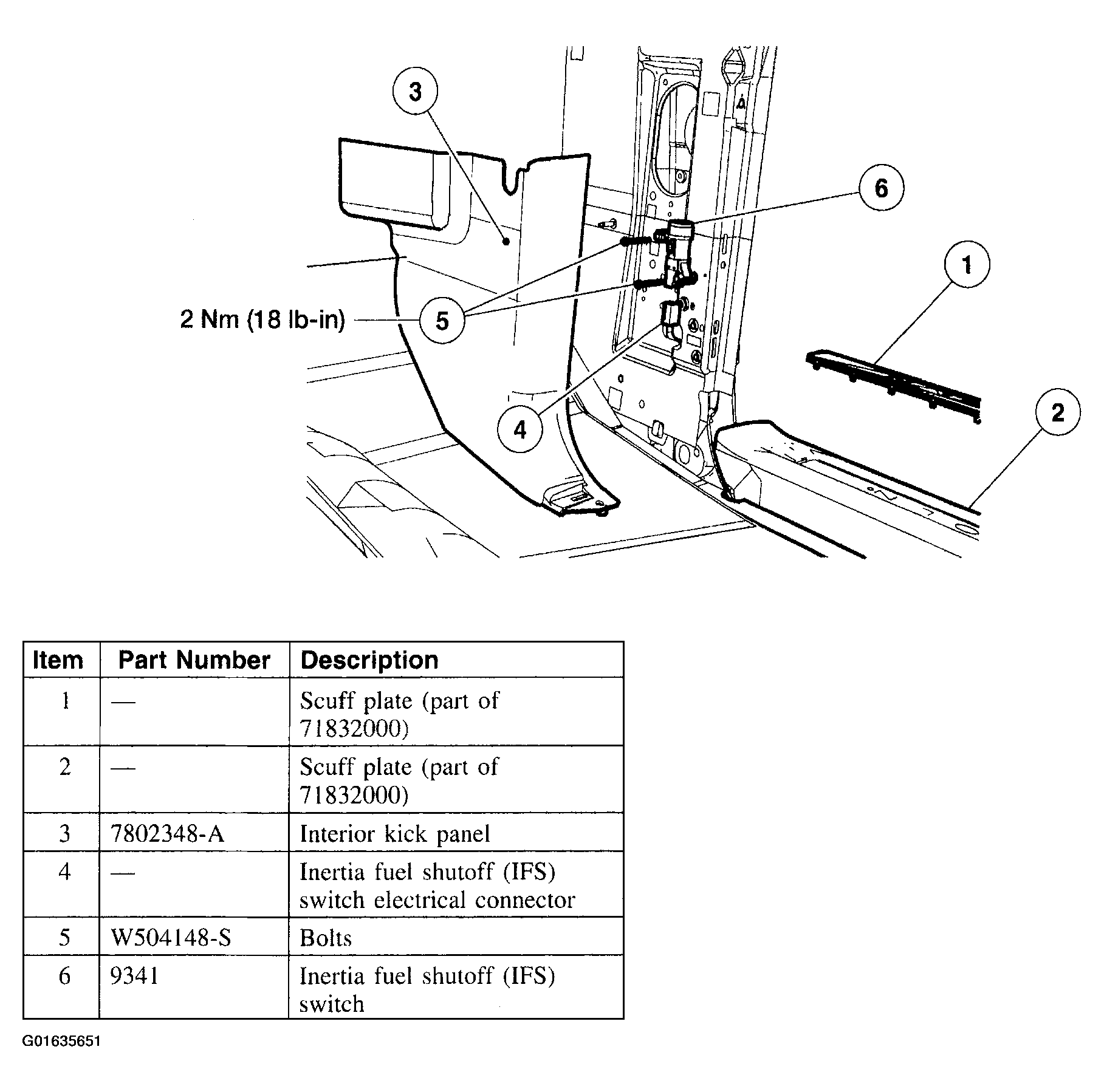

    Fig 1: Removal Sequence Of Inertia Fuel Shutoff (IFS) Switch
    G01635651Courtesy of FORD MOTOR CO.
