Accelerator Pedal and Shaft

NOTE: Make sure that the adjustable pedals assembly is at the full forward position (pedals positioned toward the front of the vehicle). The accelerator pedal and shaft can be serviced separately from the adjustable pedals assembly. However, the accelerator pedal and shaft itself is serviced only as an assembly.
1. Remove the components in the order indicated in the following illustration.
2. To install, reverse the removal procedure.

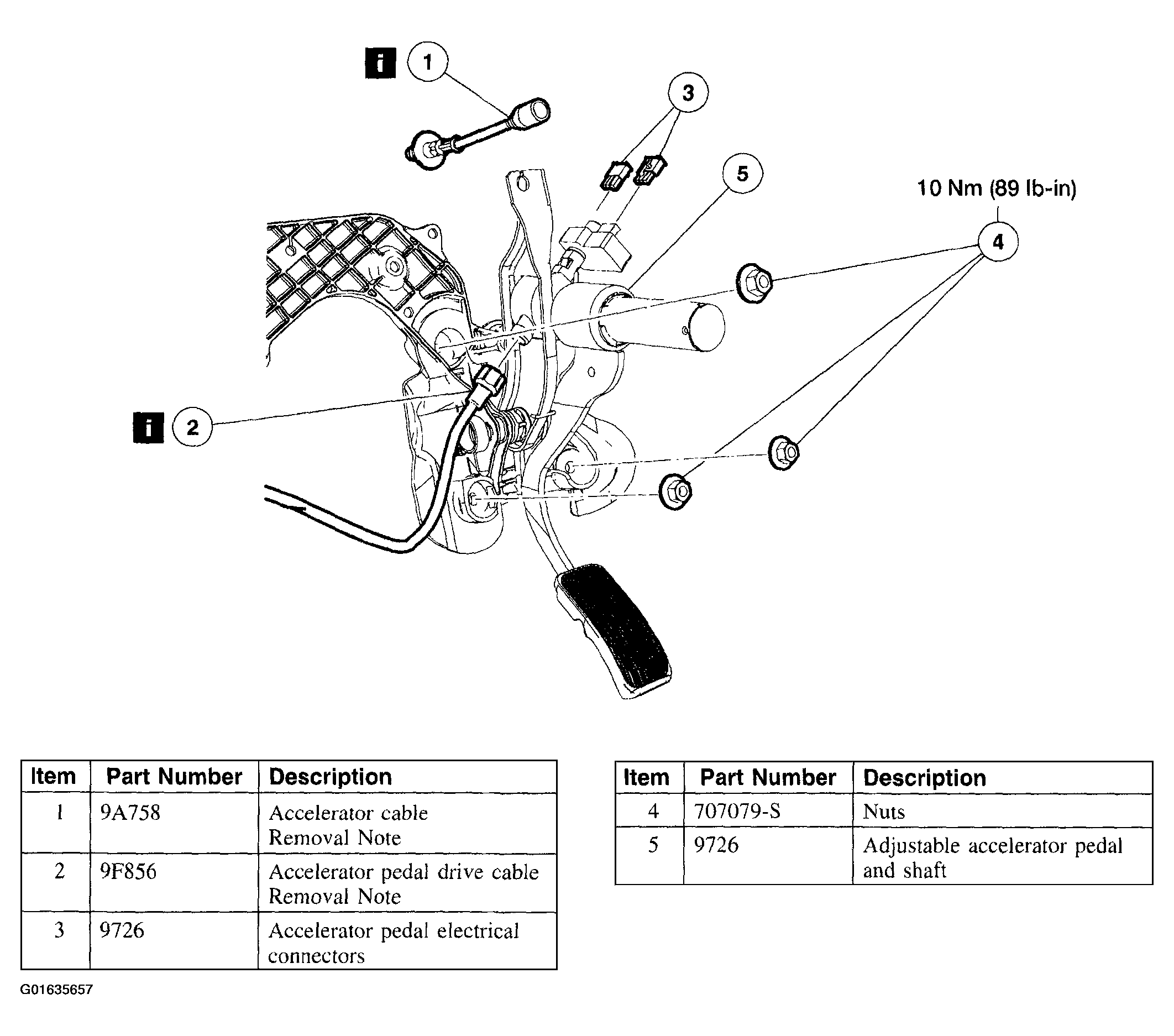

   Fig 1: Removal Sequence Of Accelerator Pedal And Shaft

   Courtesy of FORD MOTOR CO.

Item 1: Accelerator Cable Removal Note

1. Remove the accelerator cable from the rubber plunger.
   Fig 2: Removing Accelerator Cable From Rubber Plunger

   Courtesy of FORD MOTOR CO.
2. Position the rubber plunger rearward and remove the cable from the accelerator pedal.
   Fig 3: Removing Cable From Accelerator Pedal

   Courtesy of FORD MOTOR CO.

Item 2: Accelerator Pedal Drive Cable Removal Note

1. Depress the locking tabs on the pedal drive cable and remove the drive cable from the accelerator cable assembly.

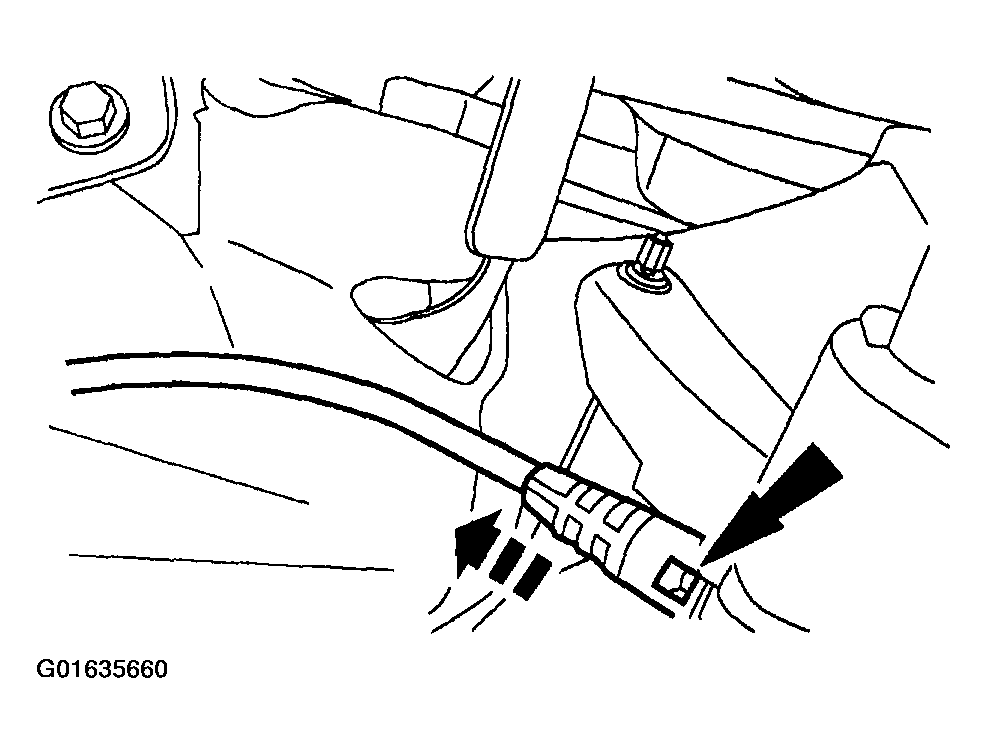

   Fig 4: Depressing Locking Tabs On Pedal Drive Cable

   Courtesy of FORD MOTOR CO.
