Exhaust Gas Recirculation (EGR) Valve

1. Remove the engine cover.
2. Remove the RH front wheel and tire assembly. For additional information, refer to SUSPENSION SYSTEM .
3. To remove individual components, carry out only the listed steps.

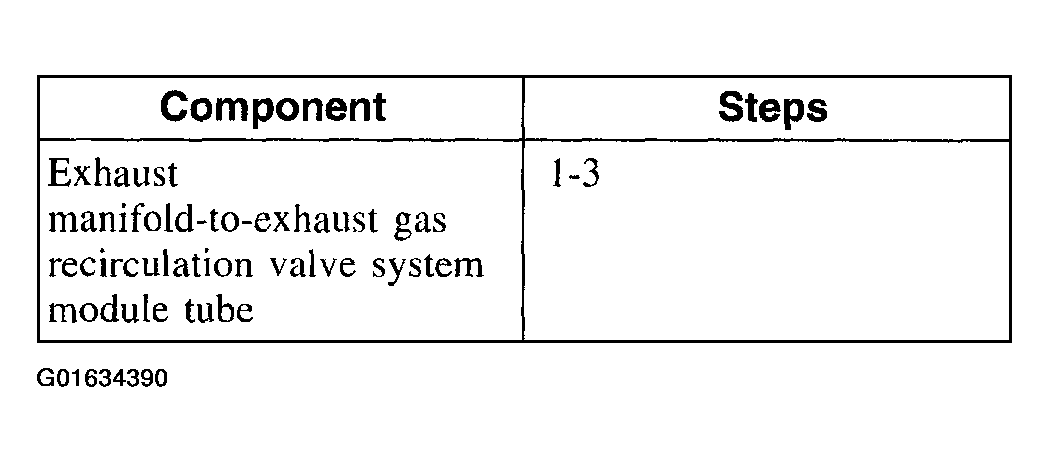

   Fig 1: Components Removal Steps List (1 Of 2)

   Courtesy of FORD MOTOR CO.

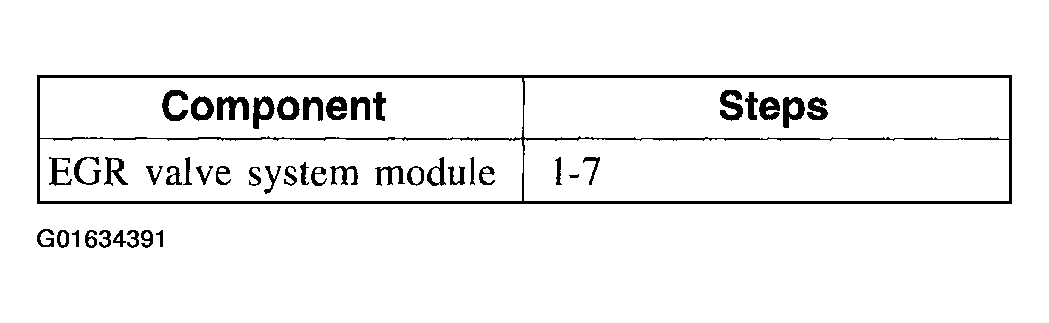

   Fig 2: Components Removal Steps List (2 Of 2)

   Courtesy of FORD MOTOR CO.
4. Remove the components in the order indicated in the following illustration.
5. To install, reverse the removal procedure.

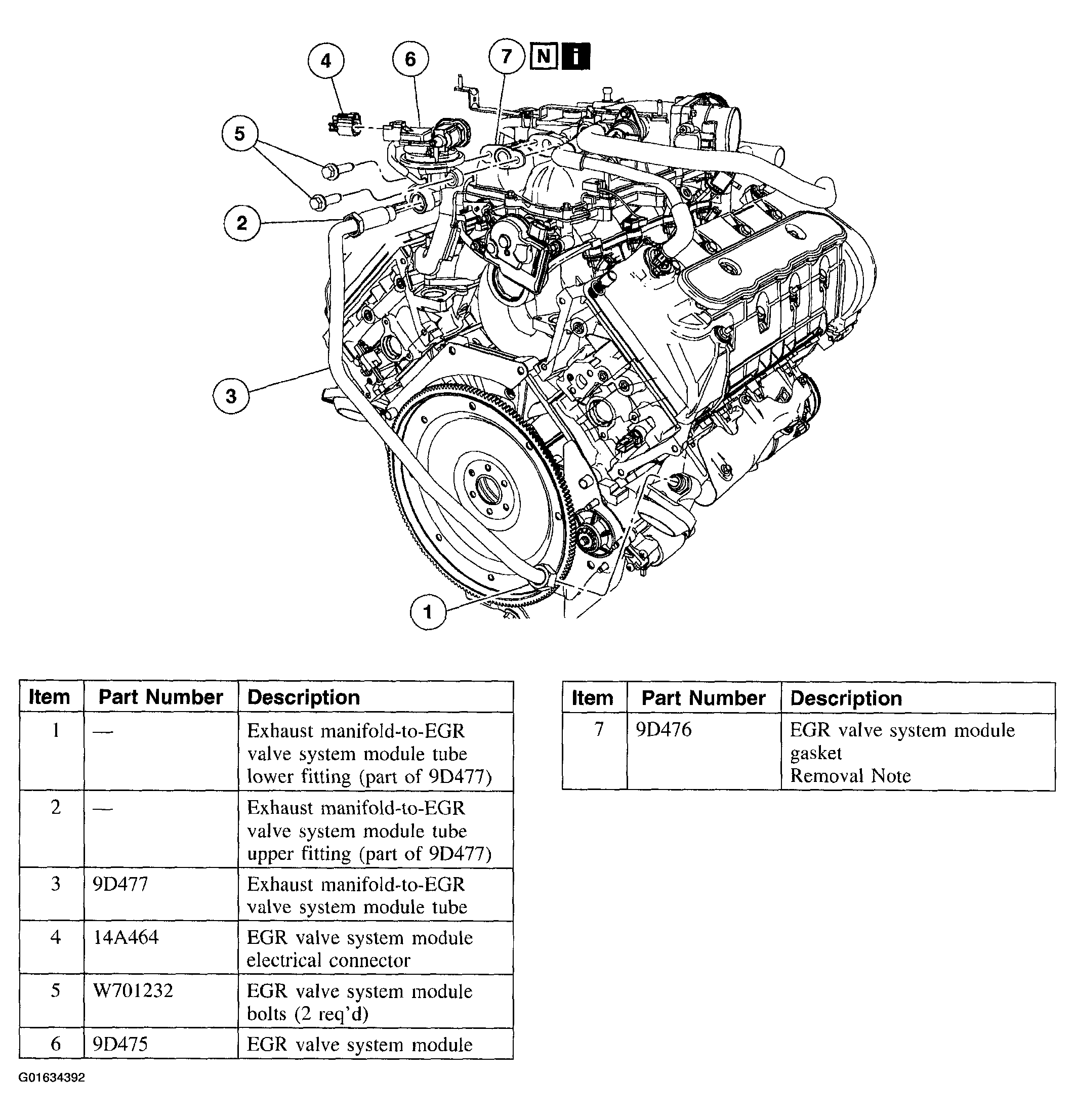

   Fig 3: Removal Sequence Of Exhaust Gas Recirculation (EGR) Valve

   Courtesy of FORD MOTOR CO.

Item 7: EGR Valve System Module Gasket Removal Note

NOTE: The EGR valve sealing surfaces are soft metals.
1. Carefully clean the EGR sealing surfaces.
