Removal And Installation: Battery

Disconnect the battery. For additional information, refer to BATTERY DISCONNECT .
To remove individual components, only carry out the listed steps.

Fig 1: Battery Components Removal Steps Table
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration.

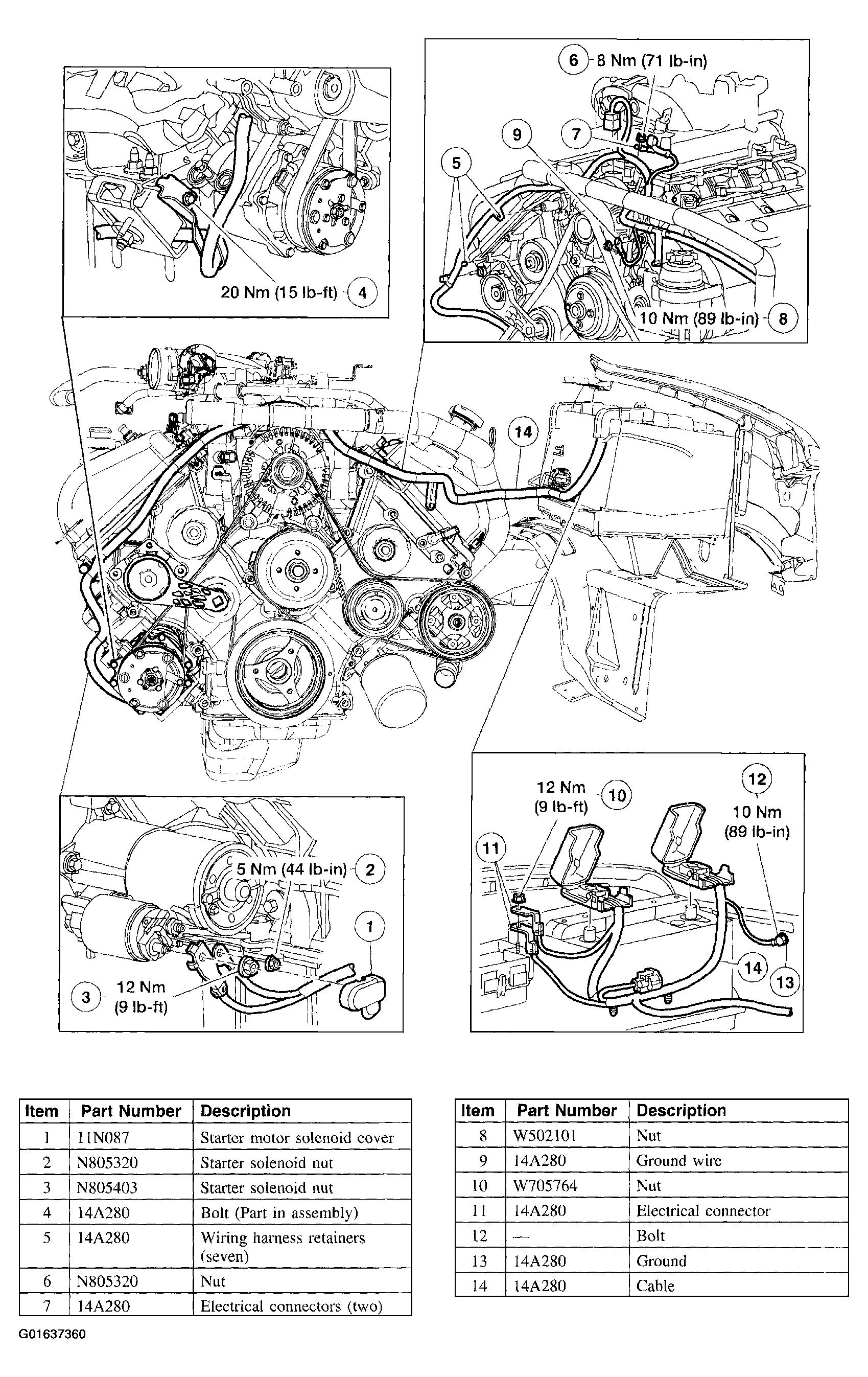

Fig 2: Removal Procedure Of Battery/Charging Component (Steps 1-14)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration.

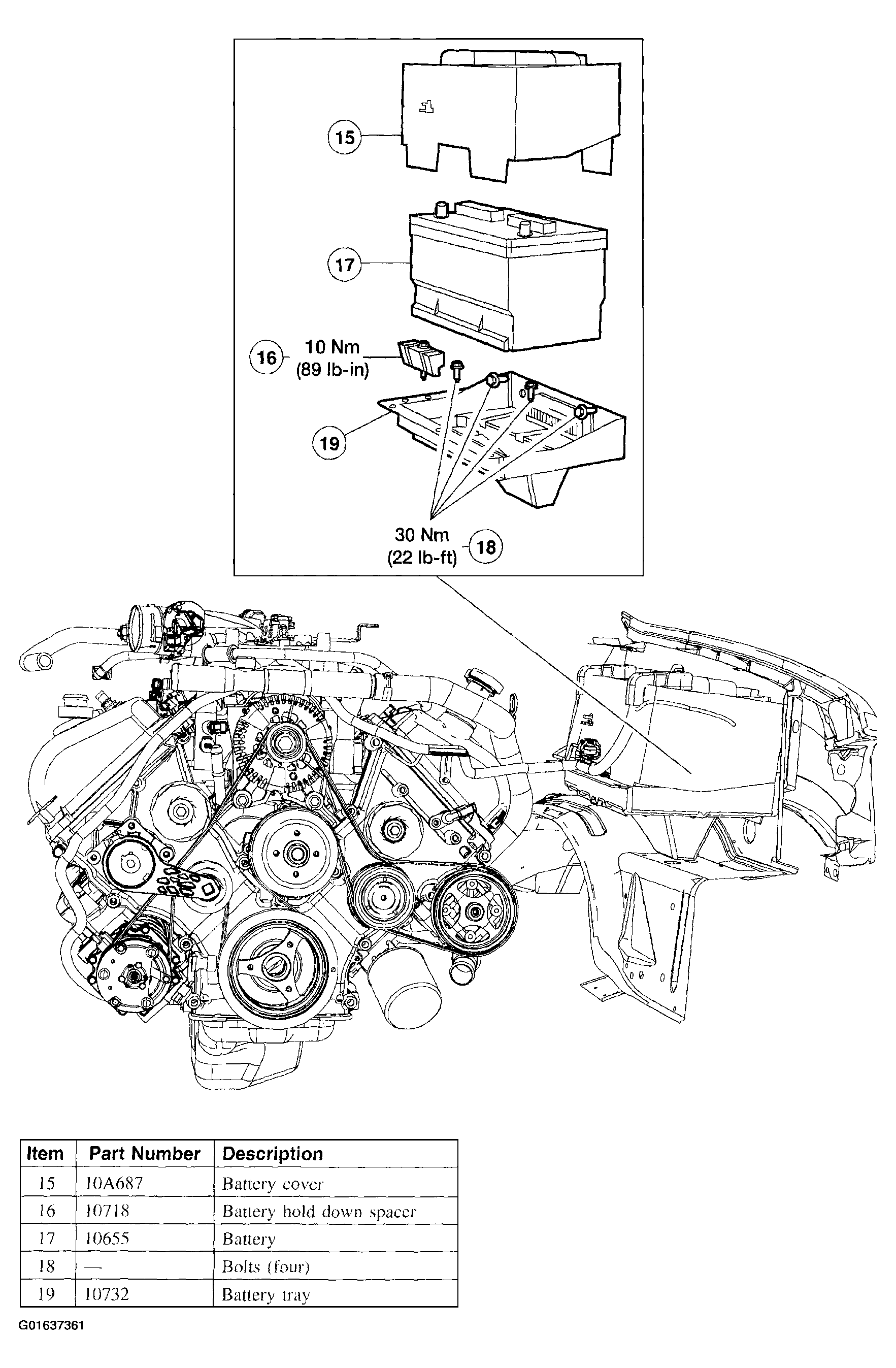

Fig 3: Removing Procedure Of Battery Components (Steps 15-19)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
