Windshield Wiper

1. Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the listed steps.

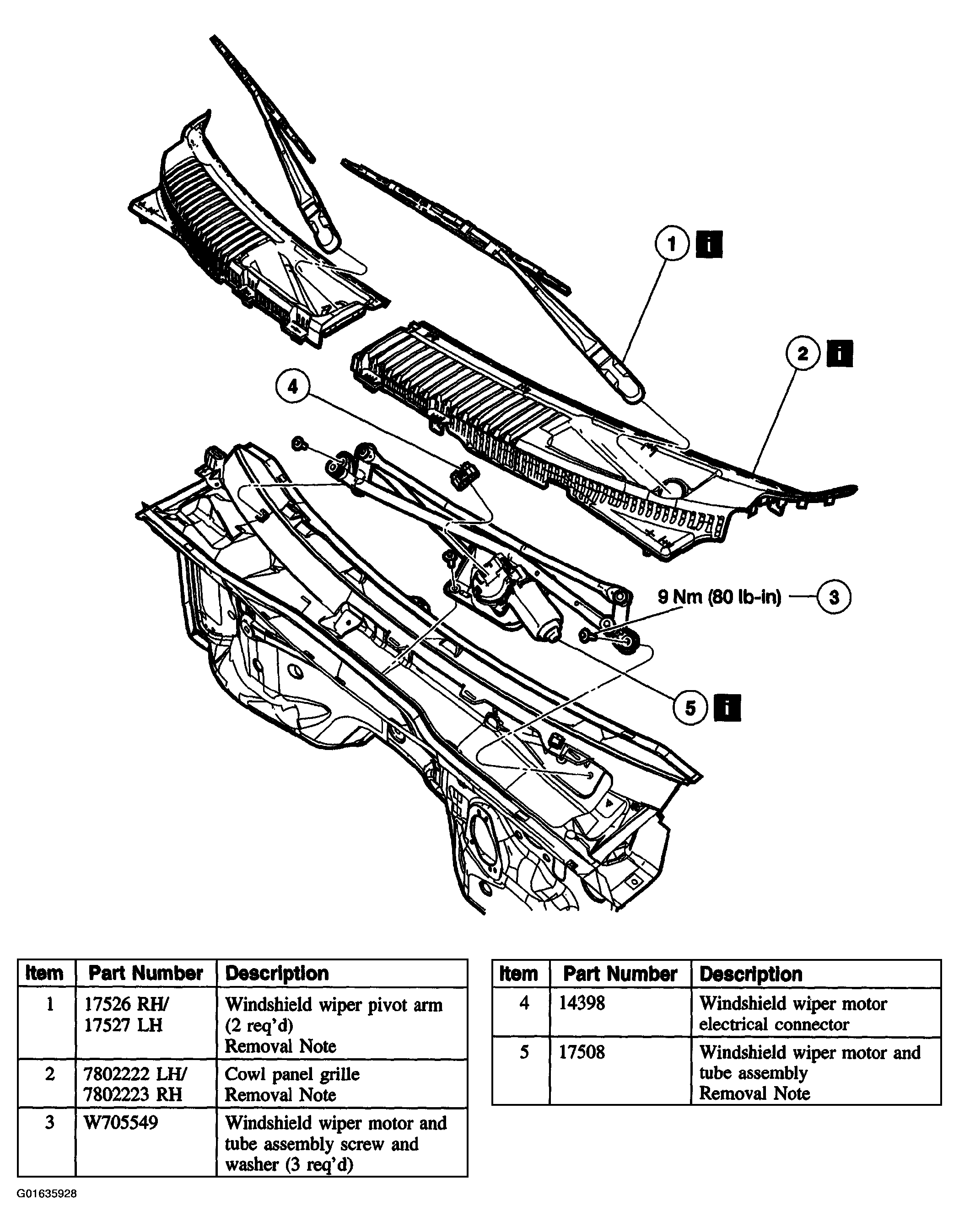

   Fig 1: Individual Components Removing Steps

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.
   Fig 2: Windshield Wiper Removal Procedure

   Courtesy of FORD MOTOR CO.

Item 1: Windshield Wiper Pivot Arm Removal Note

1. Remove the pivot arm.
   1. Pull up on the pivot arm.
   2. Pull out on the retainer tab and remove the pivot arm.

Fig 3: Removing Pivot Arm

Courtesy of FORD MOTOR CO.

Item 2: Cowl Panel Grille Removal Note

NOTE: The cowl panel grille is held in place by clips.
1. Remove the RH side cowl grille panel before removing the LH side cowl panel grille.

Item 5: Windshield Wiper Motor and Tube Assembly Removal Note

CAUTION: The internal permanent magnets used in the windshield wiper motor are made of a glass-like material. To avoid damaging the magnets, do not strike the motor with a hammer or any other object.
1. Remove the bolts and wiper motor.

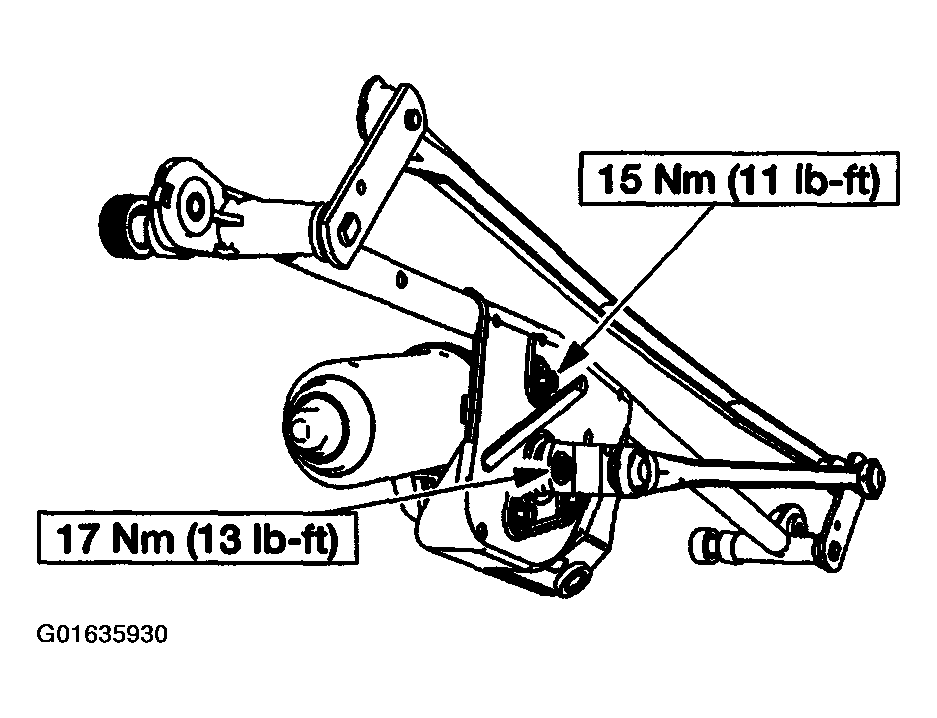

Fig 4: Removing Windshield Wiper Motor And Tube Assembly

Courtesy of FORD MOTOR CO.
