Rear Window Wiper

1. Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the listed steps.

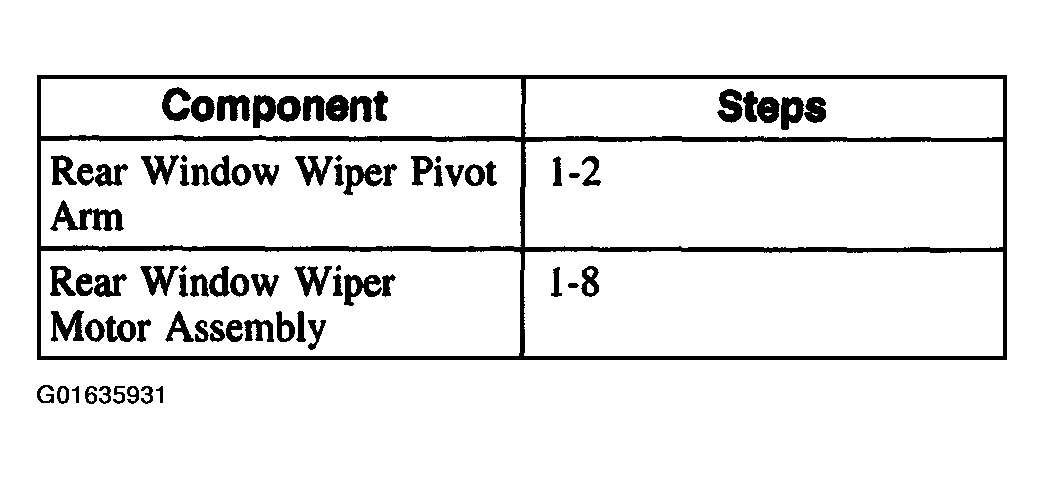

   Fig 1: Individual Components Removing Steps

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.

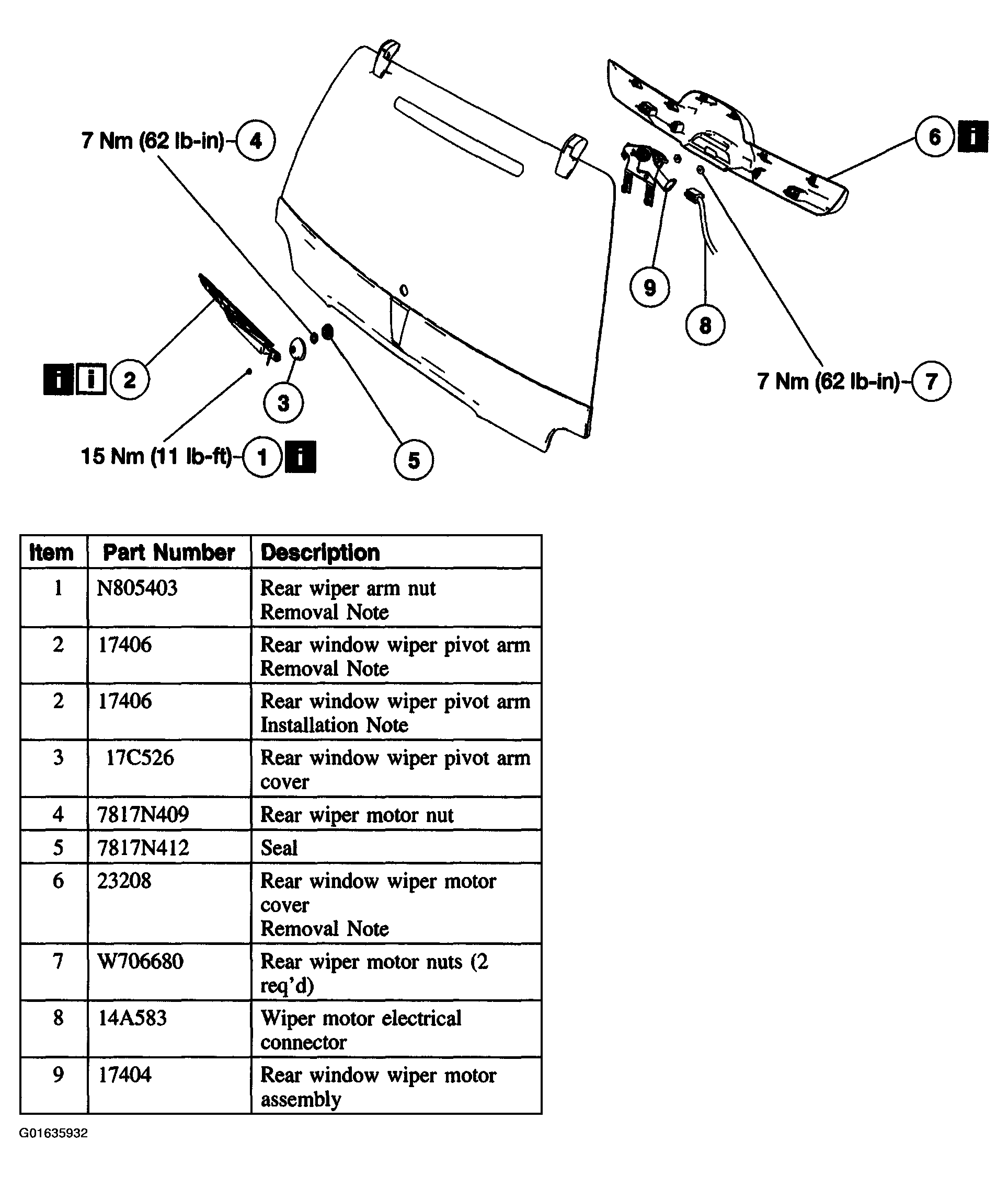

   Fig 2: Rear Window Wiper Removal Procedure

   Courtesy of FORD MOTOR CO.

Item 1: Rear Wiper Arm Nut Removal Note

1. Remove the rear window wiper pivot arm nut cover.

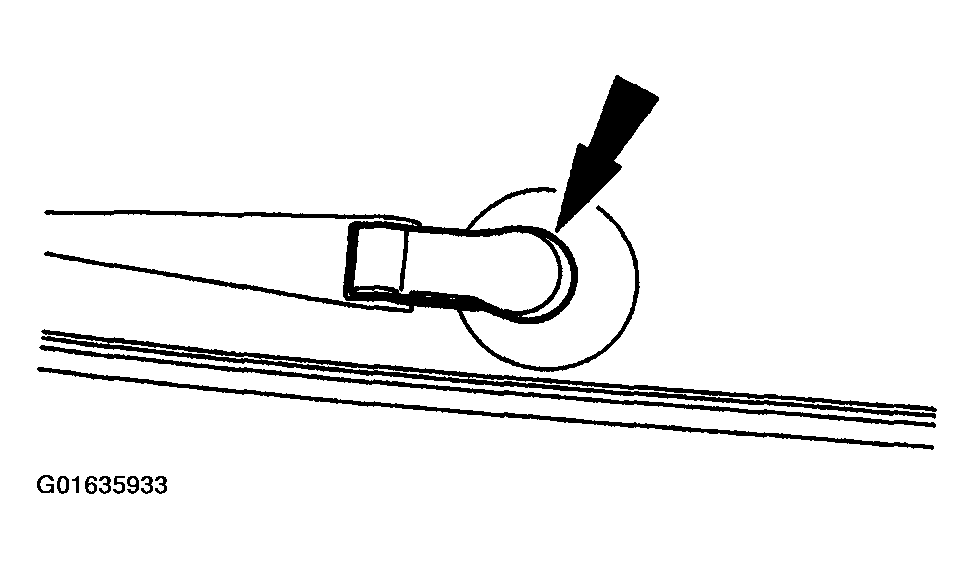

   Fig 3: Removing Rear Wiper Arm

   Courtesy of FORD MOTOR CO.

Item 2: Rear Window Wiper Pivot Arm Removal Note

1. To make sure the rear window wiper motor is in the PARK position, turn the rear window wiper motor to ON and allow it to operate for at least one cycle.
2. Turn the rear window wiper motor switch to OFF and mark the position of the end of the wiper blade on the back glass for reinstallation.

Item 6: Rear Window Wiper Motor Cover Removal Note

1. Open the liftgate glass.

Item 2: Rear Window Wiper Pivot Arm Installation Note

1. Position the end of the rear window wiper blade on the mark made before removal.
