Front Bumper

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING .
2. Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the listed steps.
   Fig 2: Individual Components Removing Steps

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.

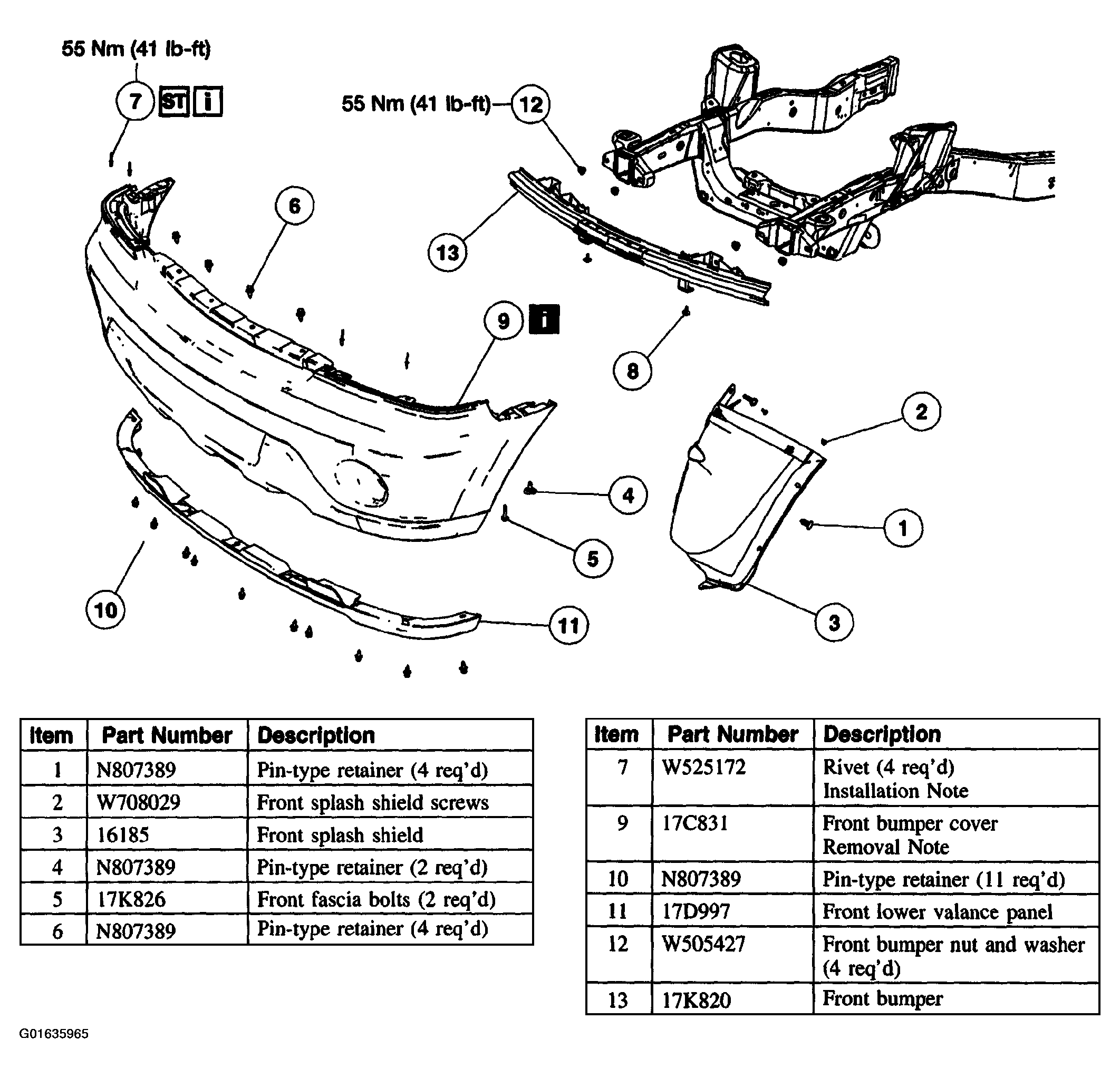

Fig 3: Front Bumper Removal Procedure

Courtesy of FORD MOTOR CO.

Item 9: Front Bumper Cover Removal Note

1. Disconnect the fog lamp electrical connector.

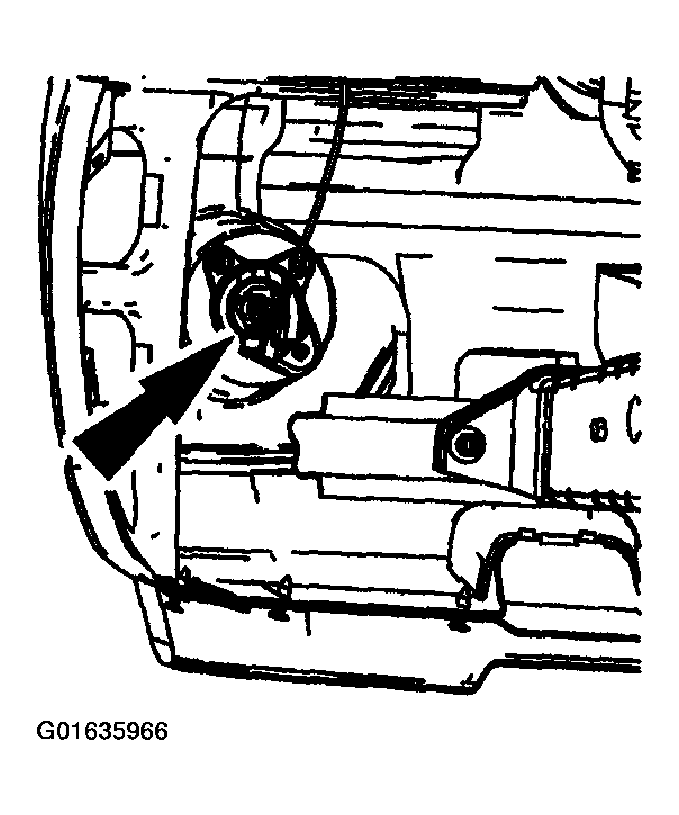

   Fig 4: Disconnecting Fog Lamp Electrical Connector

   Courtesy of FORD MOTOR CO.

Item 7: Rivet Installation Note

1. Using the special tool, install the rivets.
