Removal And Installation: Fender

NOTE: LH side shown. RH side similar.
  1. Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING .
  2. Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the listed steps.
    Fig 1: Components Removing Steps
    G01635937Courtesy of FORD MOTOR CO.
    3. NOTE: Transfer components as necessary.

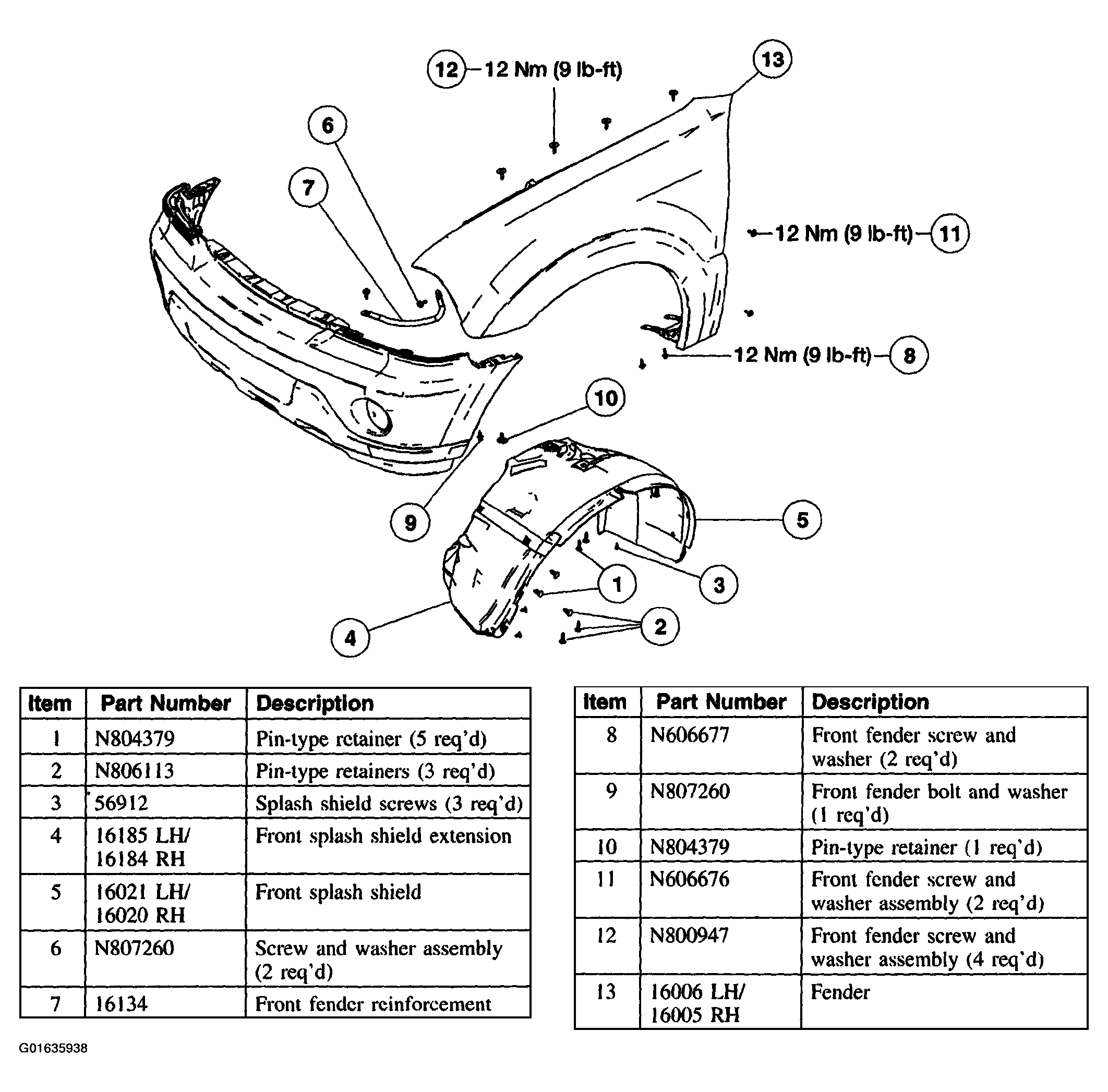

    Fig 2: Fender Removal Procedure
    G01635938Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
