Seat Control Switch

  1. Remove the driver door panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

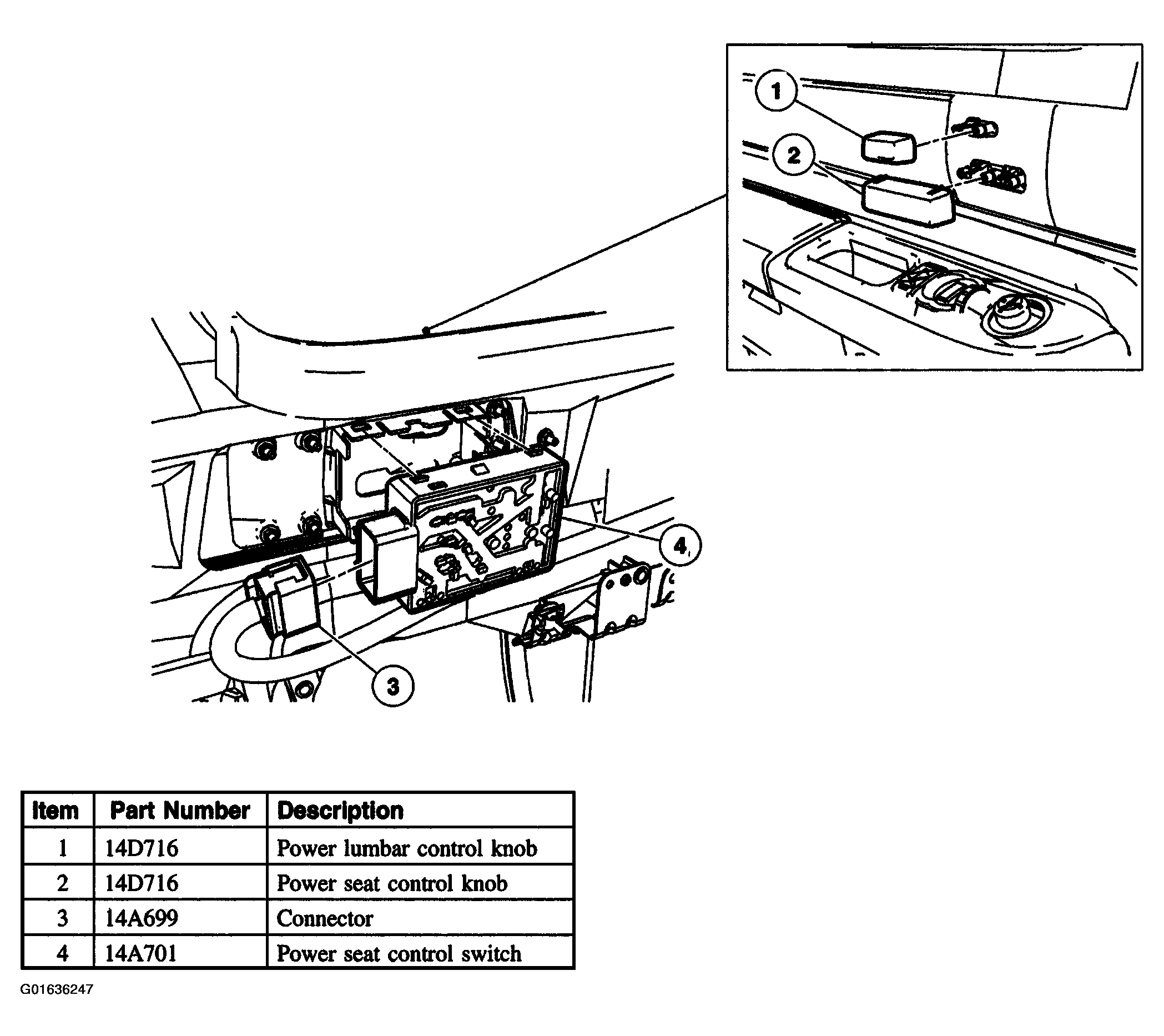

    Fig 1: Seat Control Switch Removal Sequence
    G01636247Courtesy of FORD MOTOR CO.
