Climate Controlled Seat Switch

  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

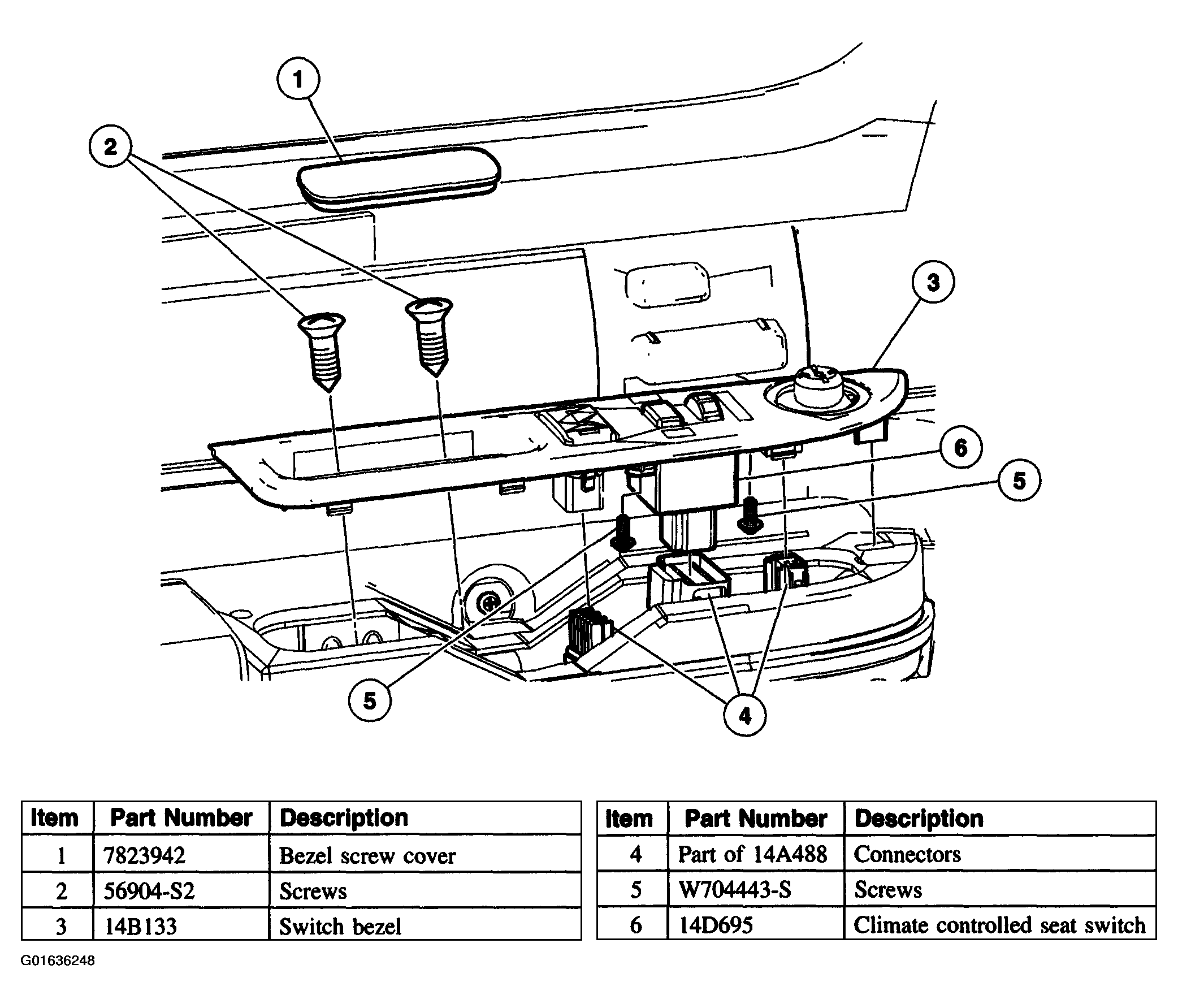

    Fig 1: Climate Controlled Seat Switch Removal Sequence
    G01636248Courtesy of FORD MOTOR CO.
