Accessories & Equipment
>>
Headlights
>>
Exterior Lighting
>>
Component Location
Component Location

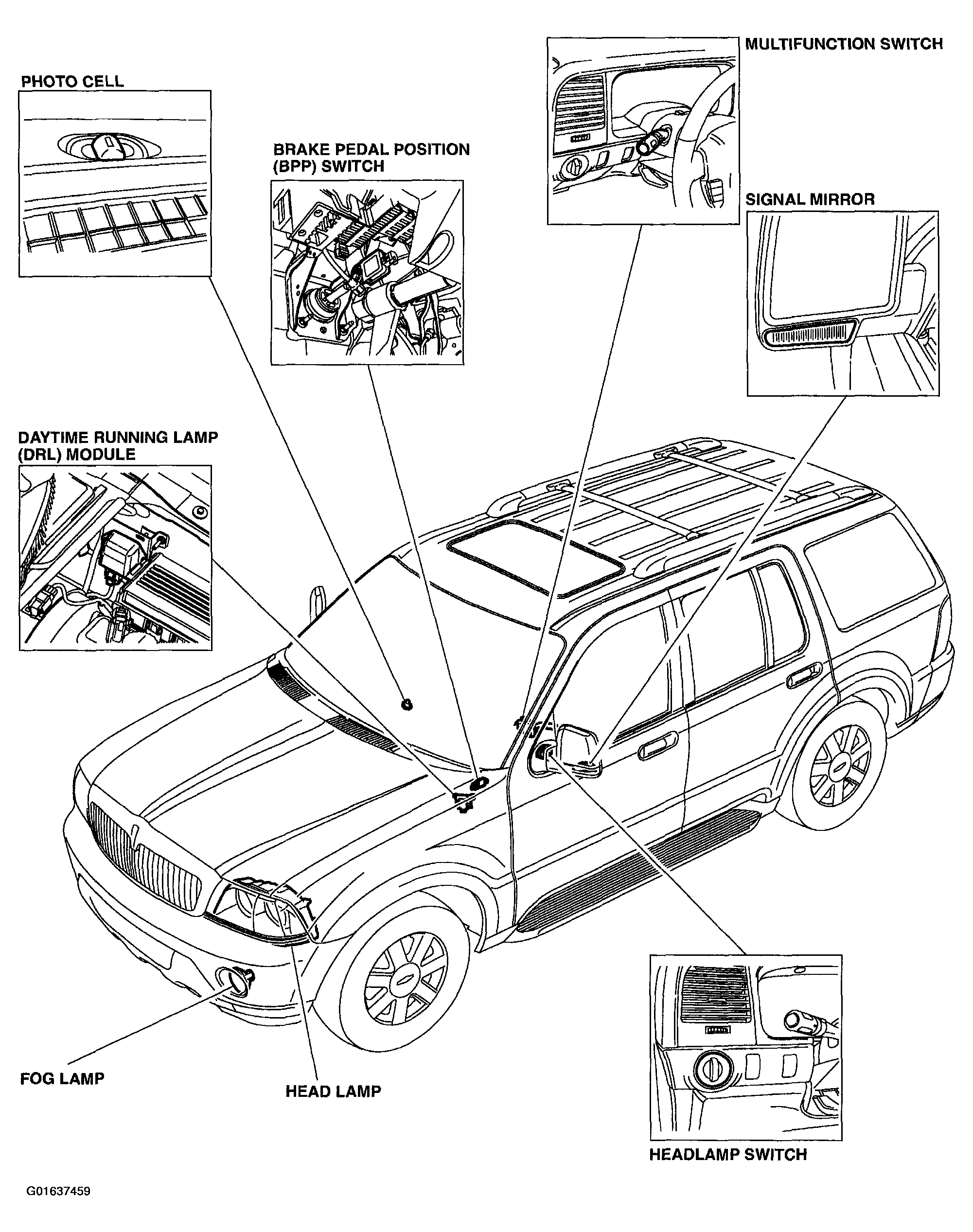

Fig 1: Exterior Lighting Component Location Index - Front
Courtesy of FORD MOTOR CO.

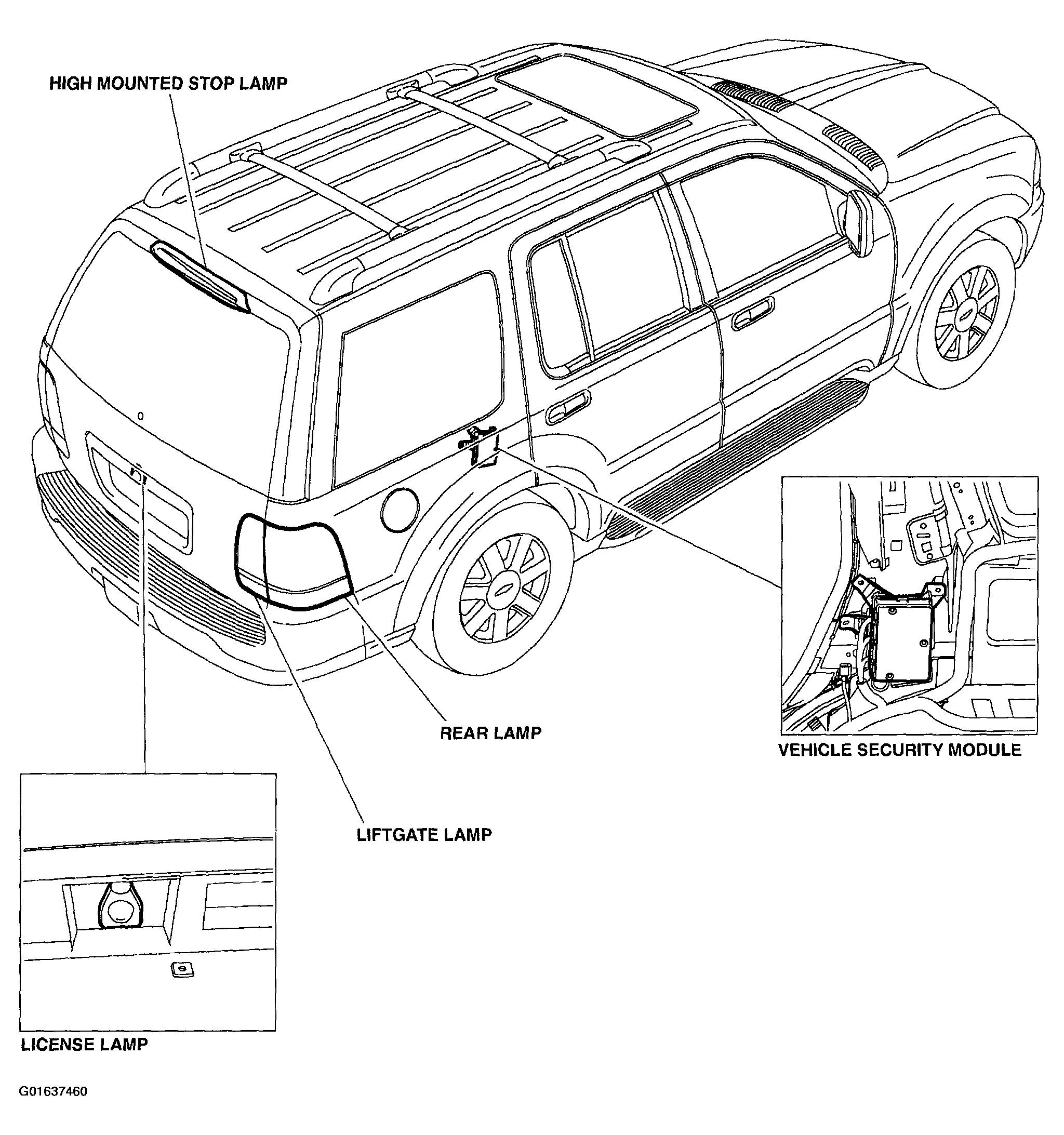

Fig 2: Exterior Lighting Component Location Index - Rear
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
