Possible Causes

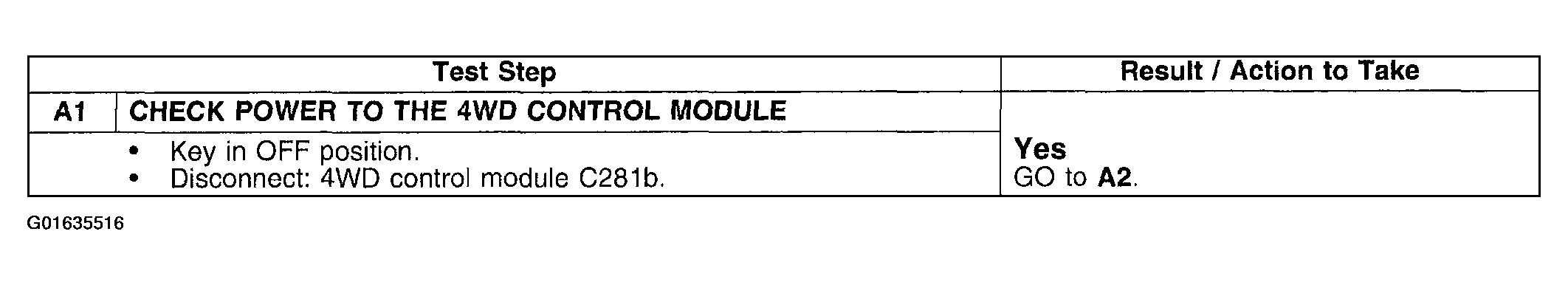

Fig 1: Pinpoint Test A: No Communication With The Four-Wheel Drive (4WD) Control Module (Step A1)
G01635516Courtesy of FORD MOTOR CO.

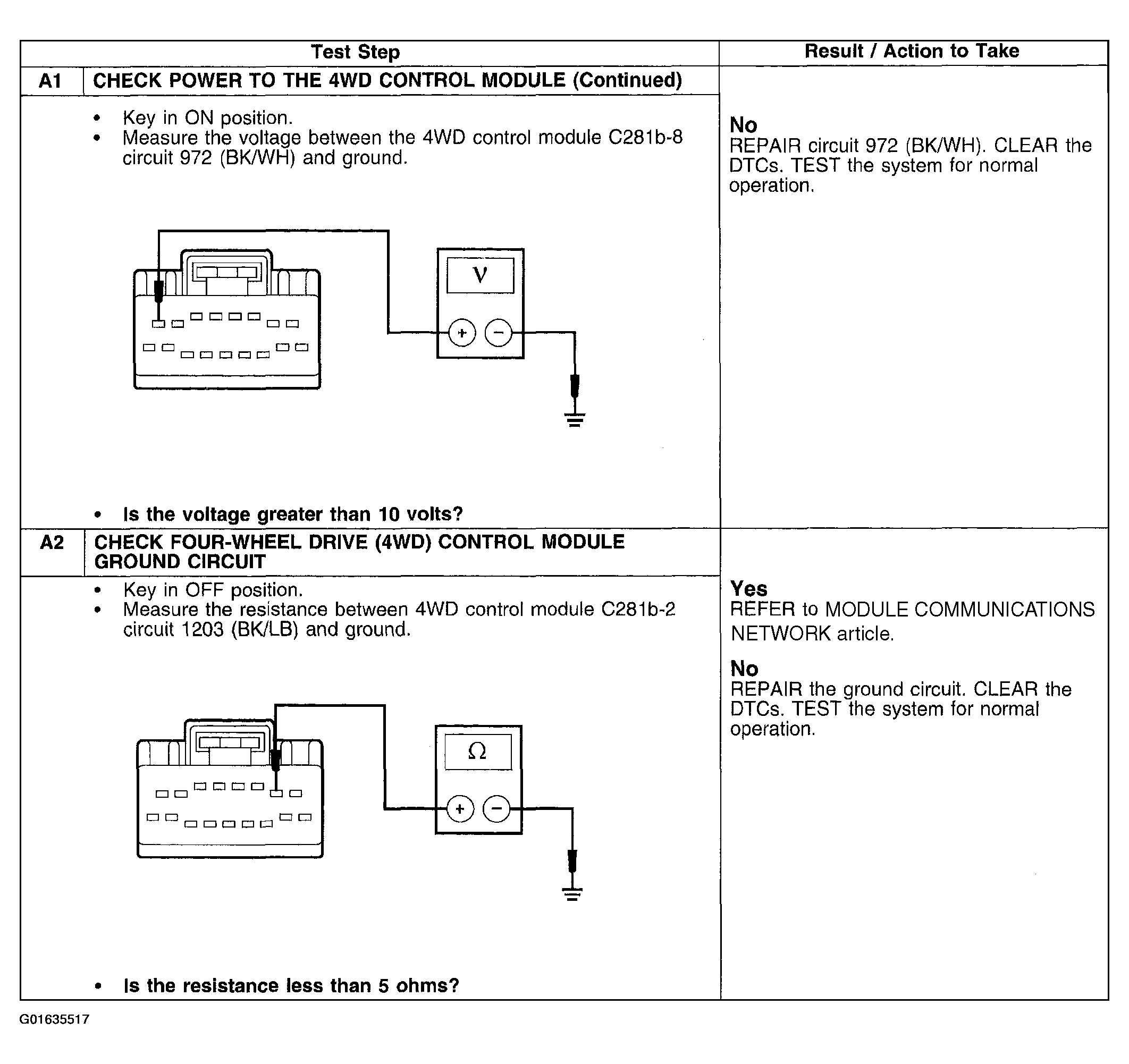

Fig 2: Pinpoint Test A: No Communication With The Four-Wheel Drive (4WD) Control Module (Steps A1 Cont. & A2)
G01635517Courtesy of FORD MOTOR CO.
