Four-Wheel Drive Control Module Diagnostic Trouble Code Index
>>
Connector Circuit Reference
>>
Four Wheel Drive (4WD) Control Module C281b
Four Wheel Drive (4WD) Control Module C281b

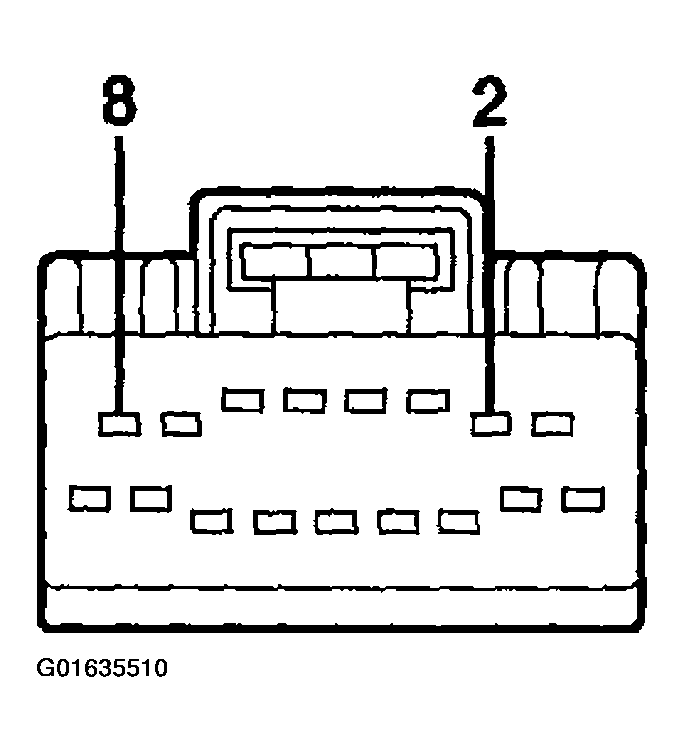

Fig 1: Identifying Four Wheel Drive Control Module C281b Connector Terminals
Courtesy of FORD MOTOR CO.

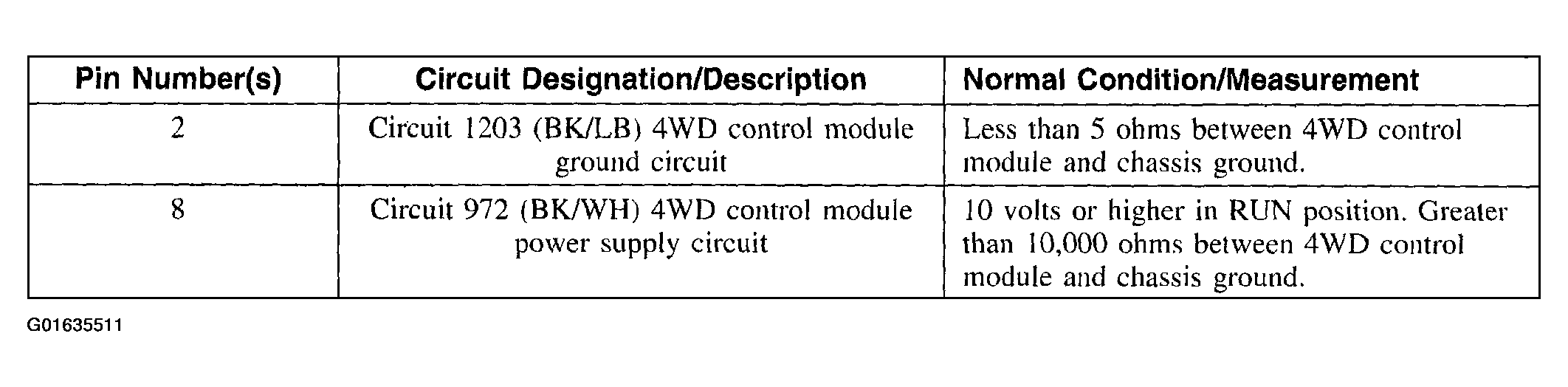

Fig 2: Four Wheel Drive Control Module C281b Connector Terminals Specifications
Courtesy of FORD MOTOR CO.
