Possible Causes

When placing the range selector lever in a selected gear (P, R, N, D, or (D)) and the transmission is not in the corresponding gear for what was selected, the cause could be:

• Shift linkage out of adjustment
• Worn or broken shift cable
• Wiring, terminals or connectors

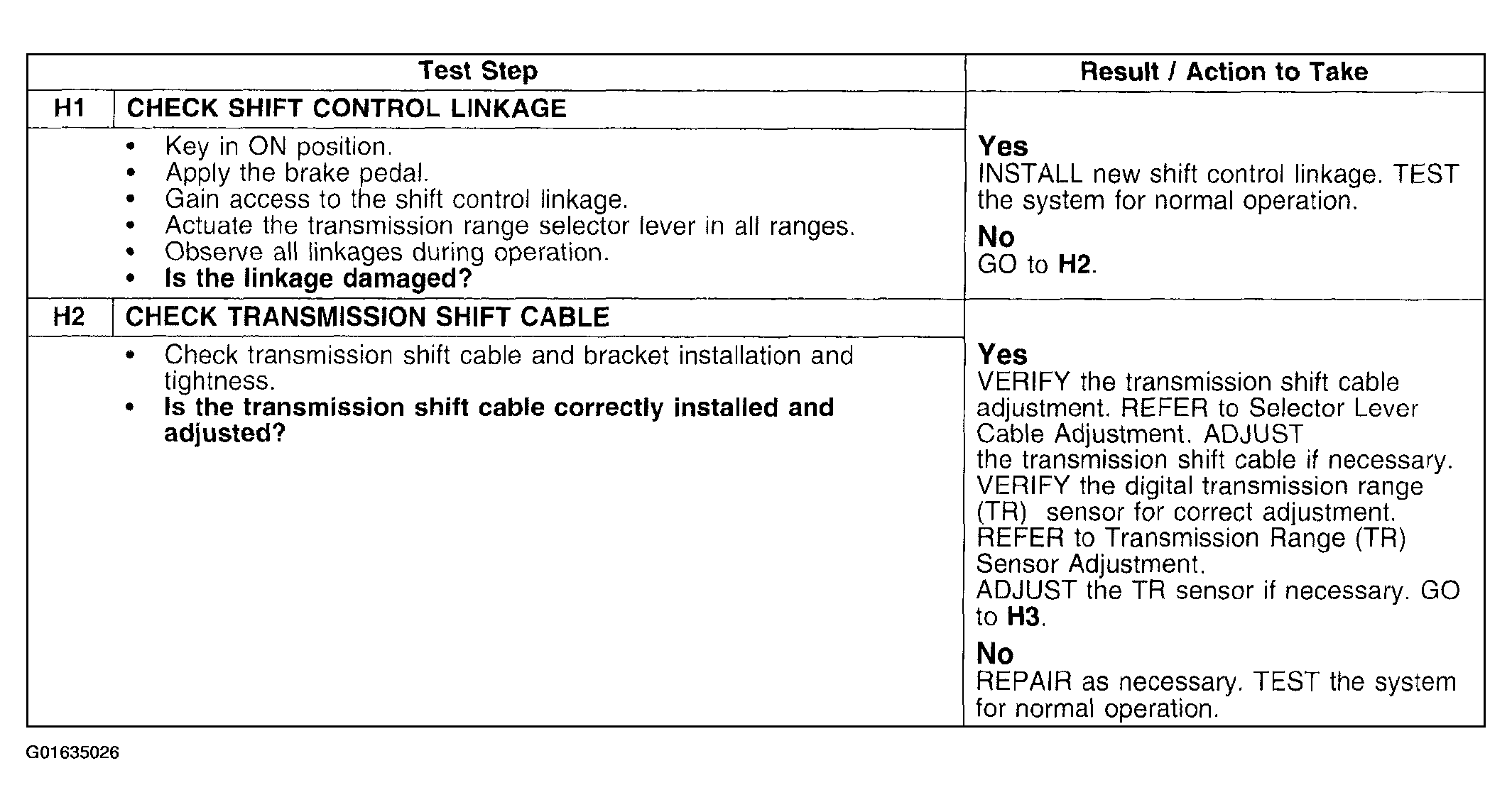

  Fig 1: Pinpoint Test H: Shift Control is Out of Correct Gear Relationship (Steps H1 & H2)

  Courtesy of FORD MOTOR CO.

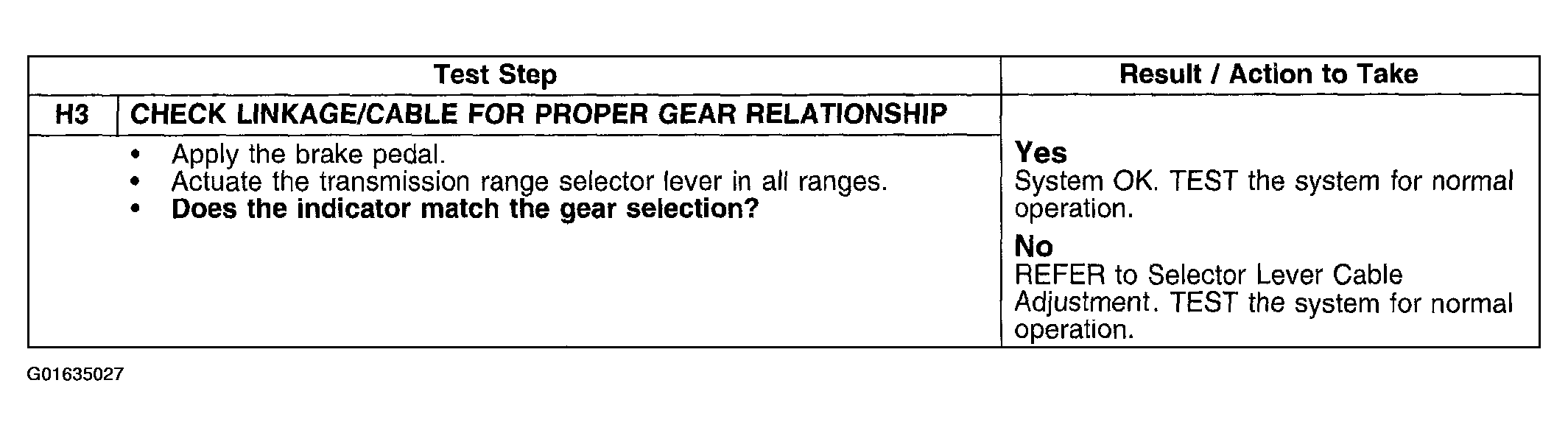

Fig 2: Pinpoint Test H: Shift Control is Out of Correct Gear Relationship (Step H3)

Courtesy of FORD MOTOR CO.
