Possible Causes

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

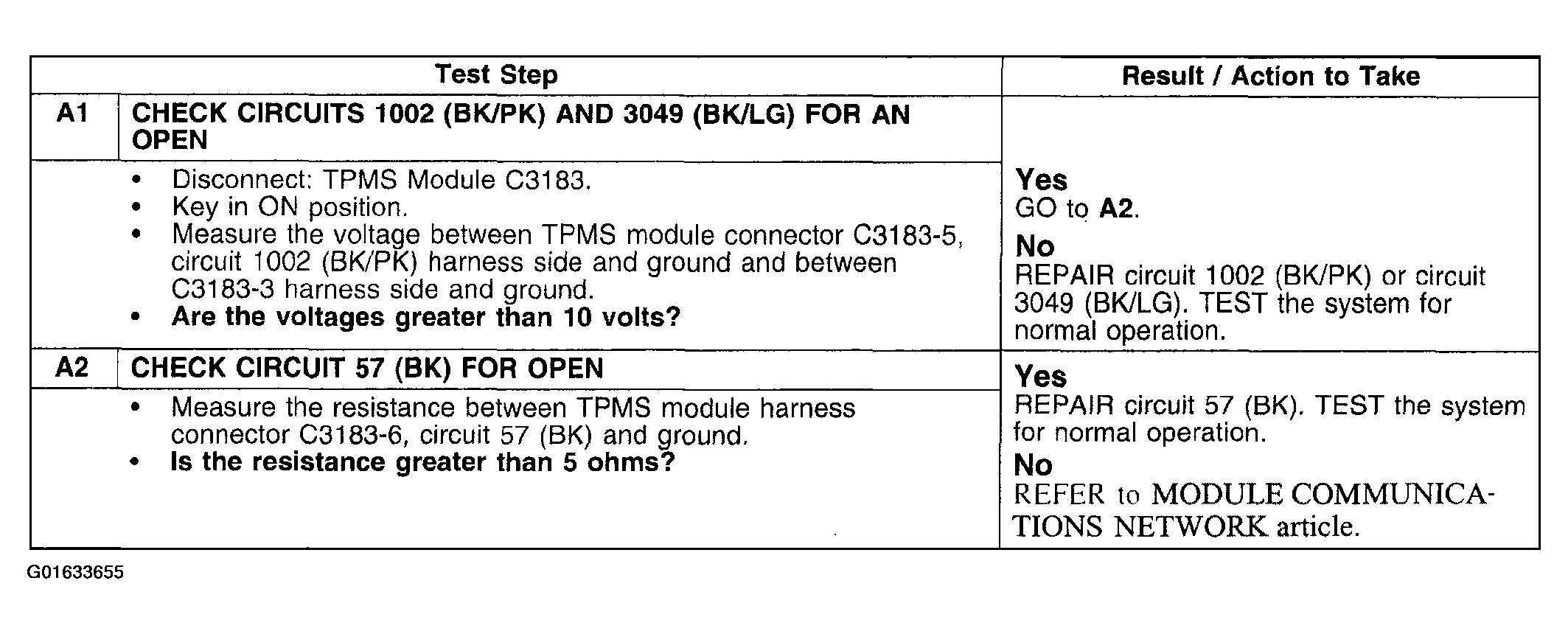

Fig 1: Pinpoint Test A: No Communication With TPMS Module/Unable To Enter Self-Test
G01633655Courtesy of FORD MOTOR CO.
