DATC Module C228a

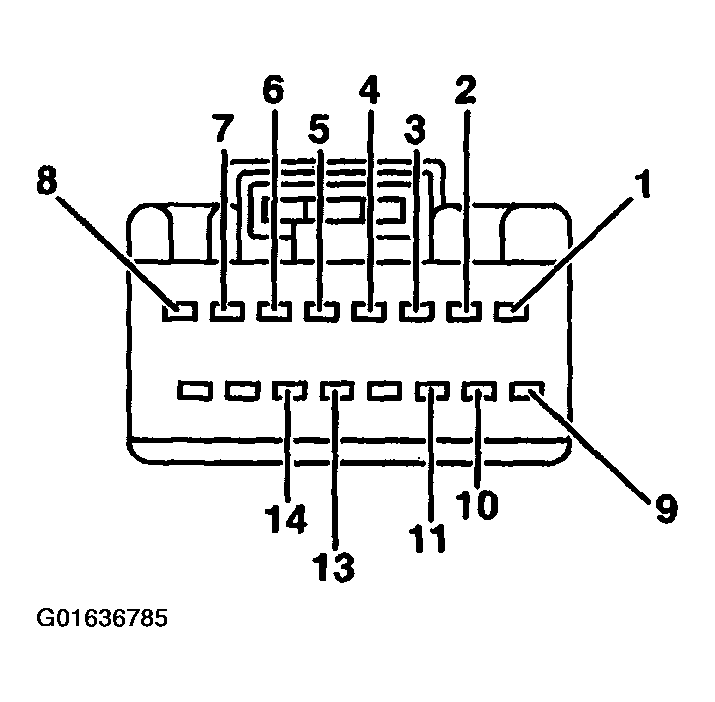

Fig 1: Connector Terminals Of DATC Module C228A
G01636785Courtesy of FORD MOTOR CO.

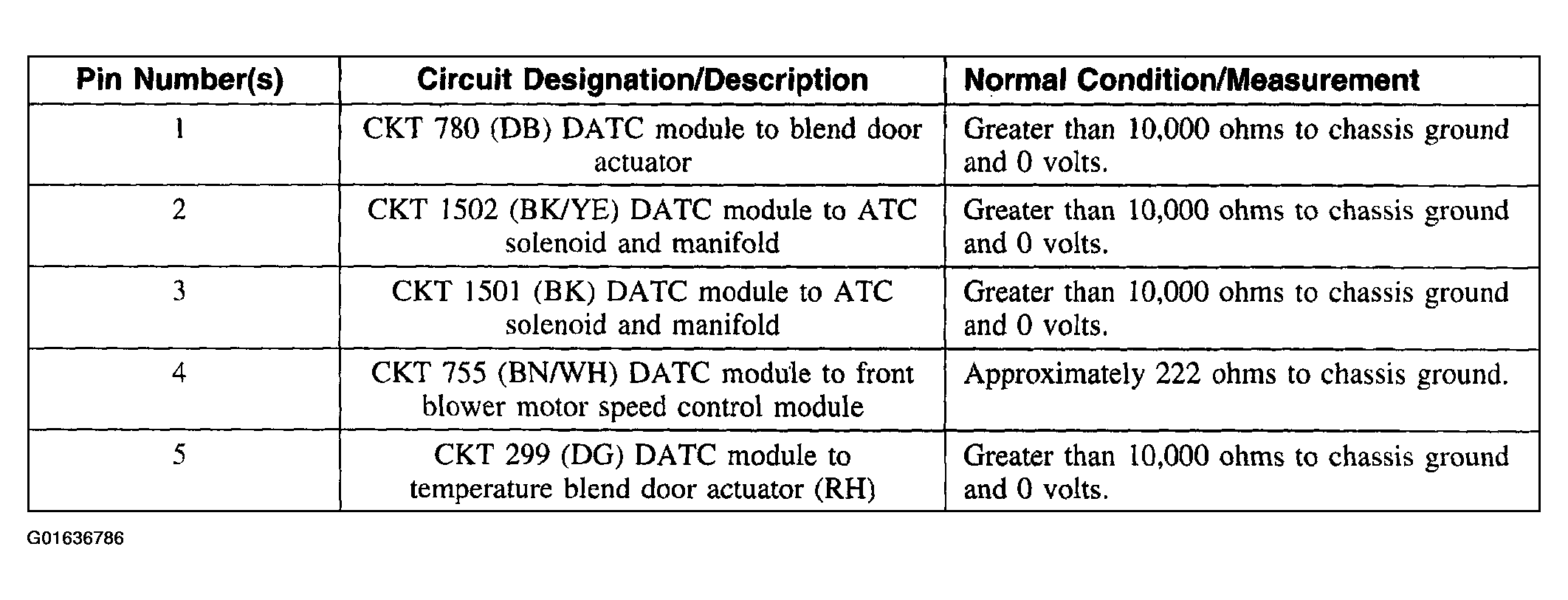

Fig 2: Connector Terminals Of DATC Module C228A Legend (1 Of 2)
G01636786Courtesy of FORD MOTOR CO.

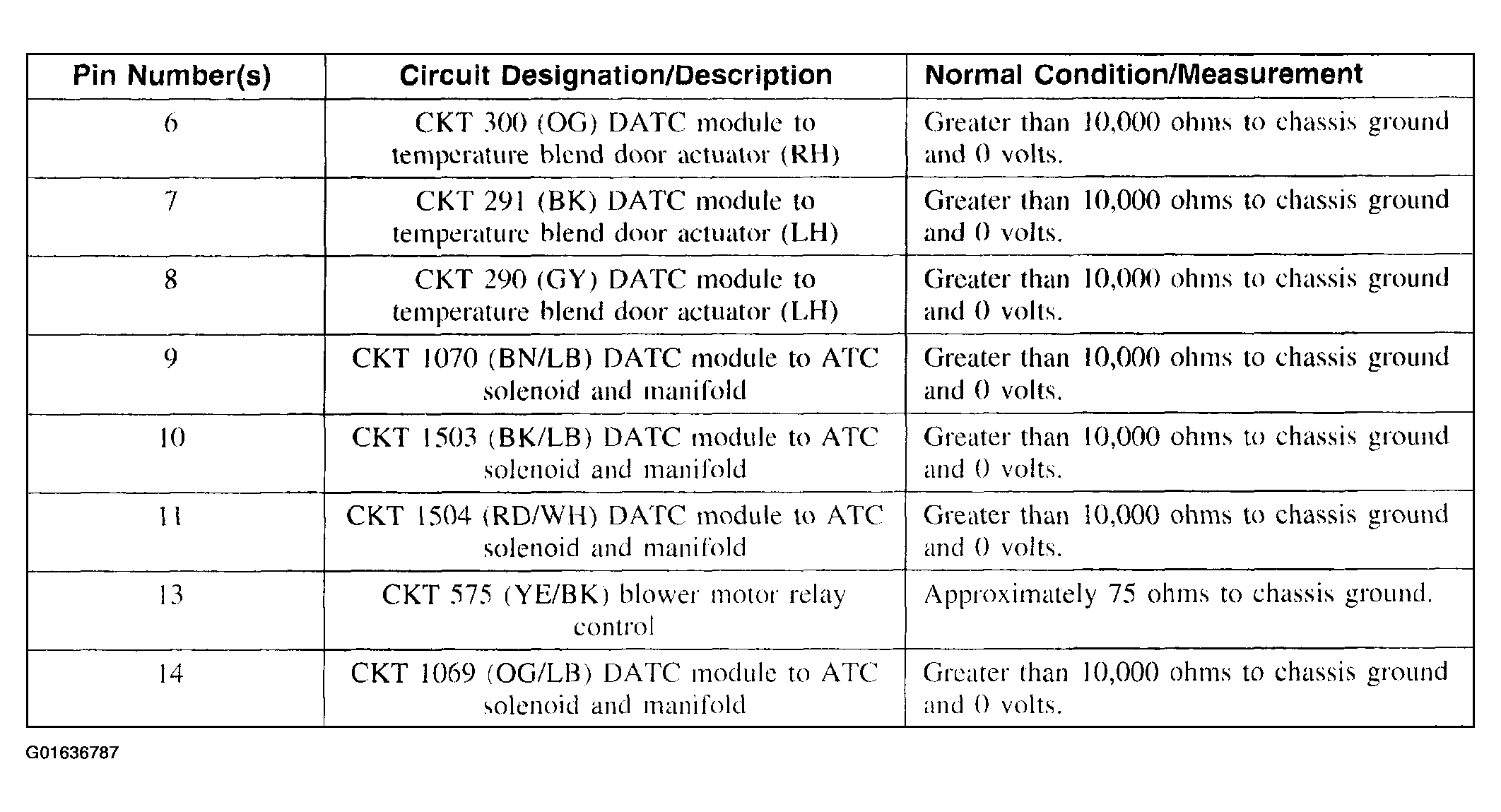

Fig 3: Connector Terminals Of DATC Module C228A Legend (2 Of 2)
G01636787Courtesy of FORD MOTOR CO.
