Item 14: Differential Case Assembly Note

  1. Install the special tools.
    • Position the clutch housing gauge needle in the differential carrier spreader adapter hole.

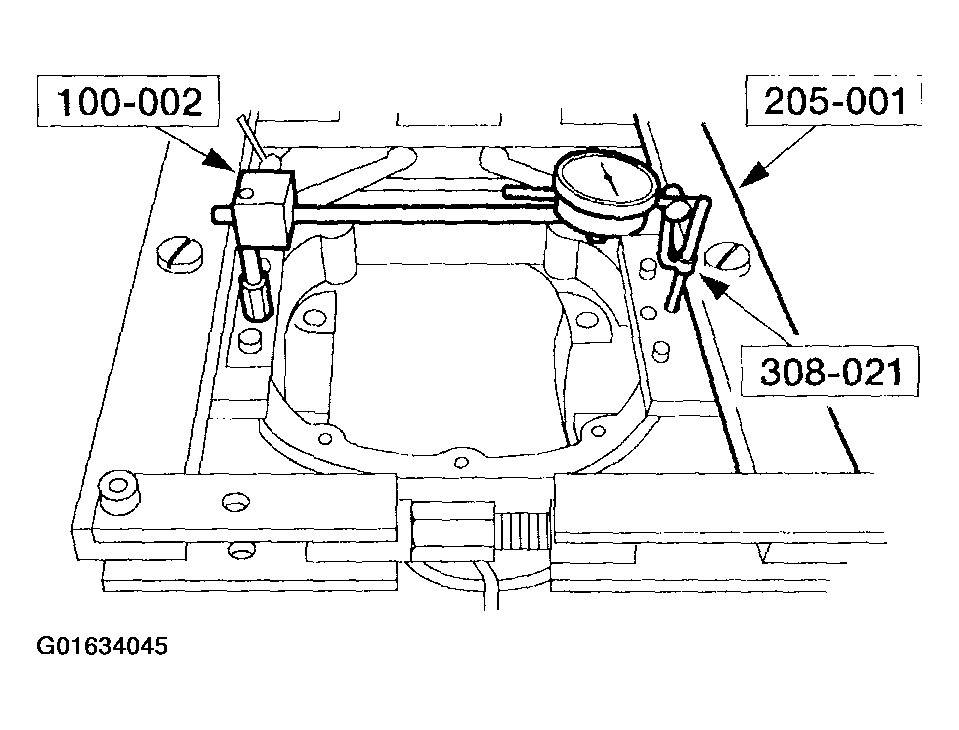

    Fig 1: Positioning Clutch Housing Gauge Needle In Differential Carrier Spreader Adapter Hole
    G01634045Courtesy of FORD MOTOR CO.
    2. CAUTION: Overspreading can damage the differential housing.

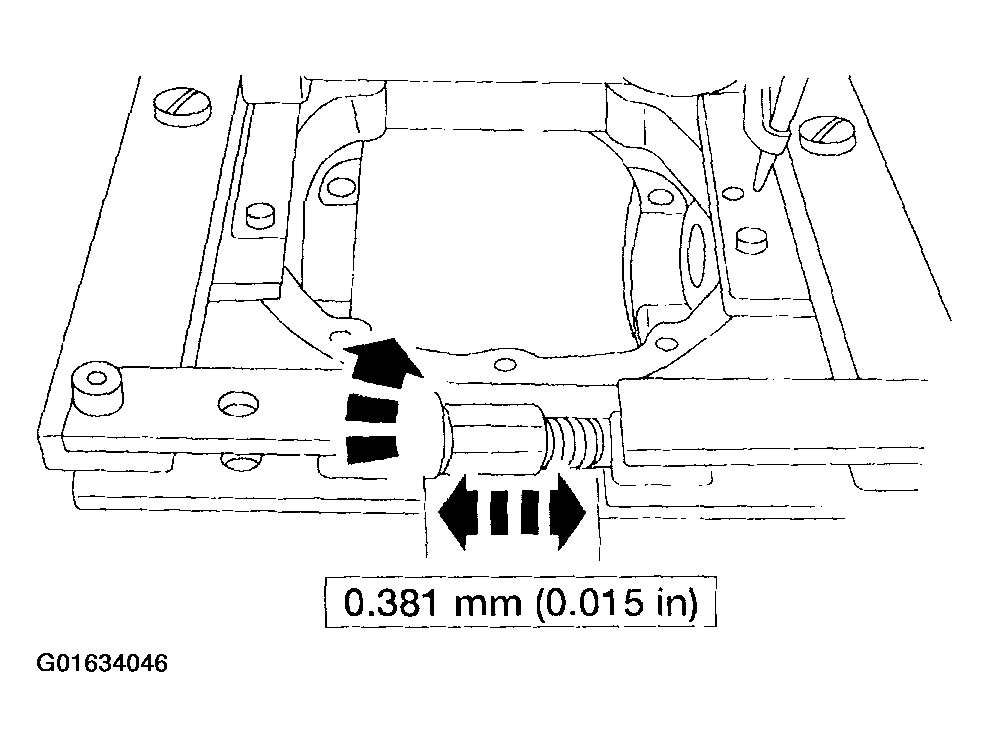

    Fig 2: Spreading Differential Housing To Specification
    G01634046Courtesy of FORD MOTOR CO.
  2. Spread the differential housing to the specification.
  3. Remove the special tools.

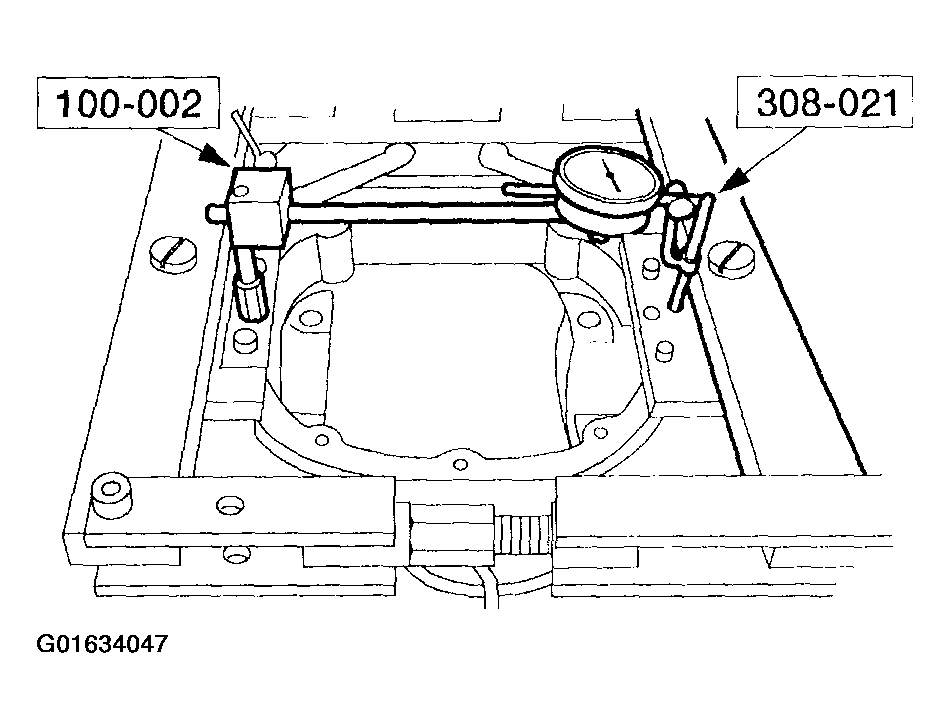

    Fig 3: Remove Special Tools
    G01634047Courtesy of FORD MOTOR CO.
    4. NOTE: Push the differential case downward to fully seat the differential bearing cups in the differential housing.

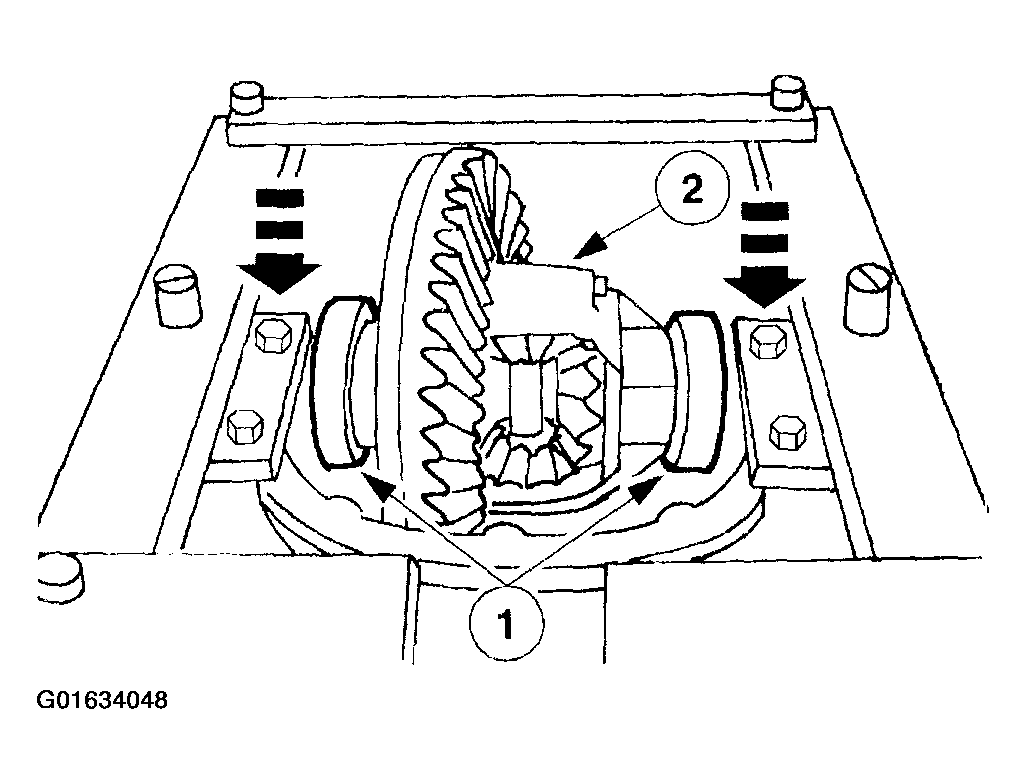

    Fig 4: Positioning Differential Bearing Cups On Differential Bearings
    G01634048Courtesy of FORD MOTOR CO.
  4. Install the differential bearing cups and the differential case in the differential housing.
    1. Position the differential bearing cups on the differential bearings.
    2. Lower the differential case in place.
    5. CAUTION: Do not tighten the bolts to specification at this time.

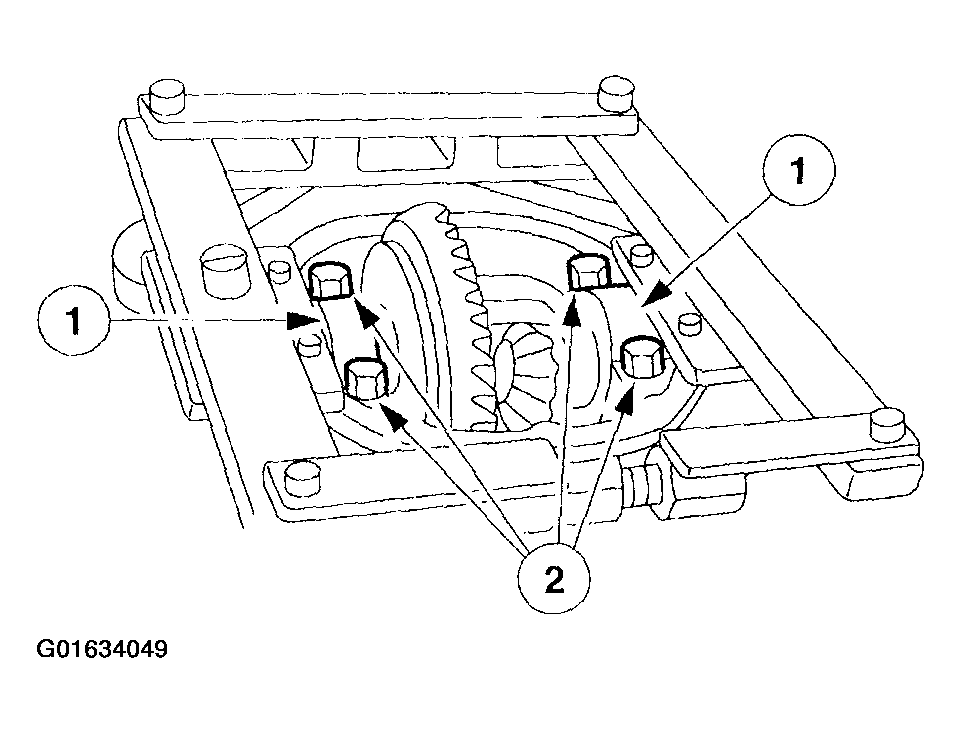

    Fig 5: Installing Differential Bearing Caps
    G01634049Courtesy of FORD MOTOR CO.
  5. Install the differential bearing caps in their original positions.
    1. Position the differential bearing caps.
    2. Install the bolts hand-tight.
  6. Remove the special tools.

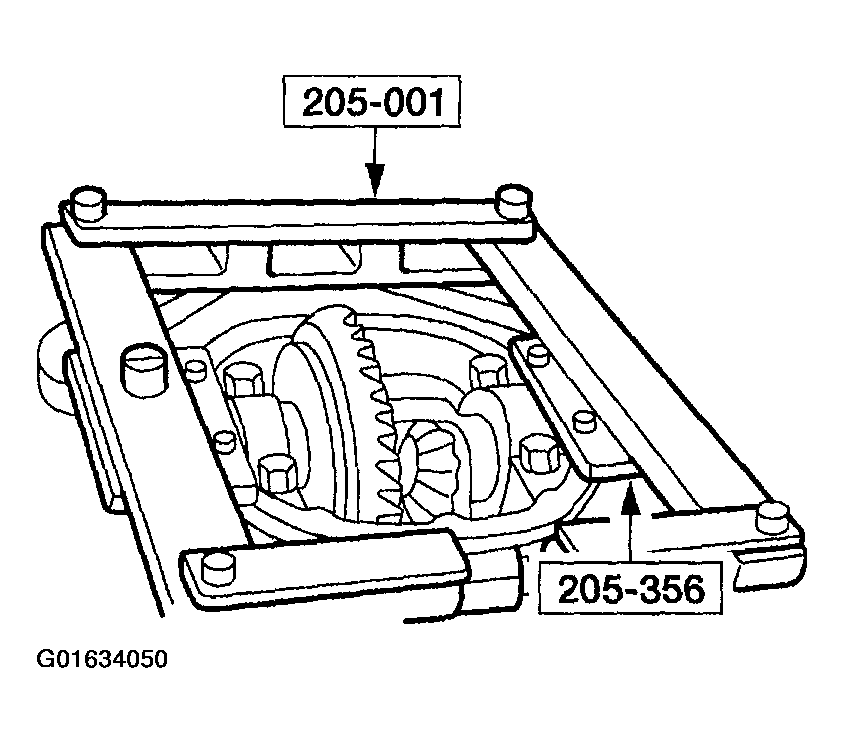

    Fig 6: Removing Special Tools On Differential Case
    G01634050Courtesy of FORD MOTOR CO.
  7. Tighten the bolts.

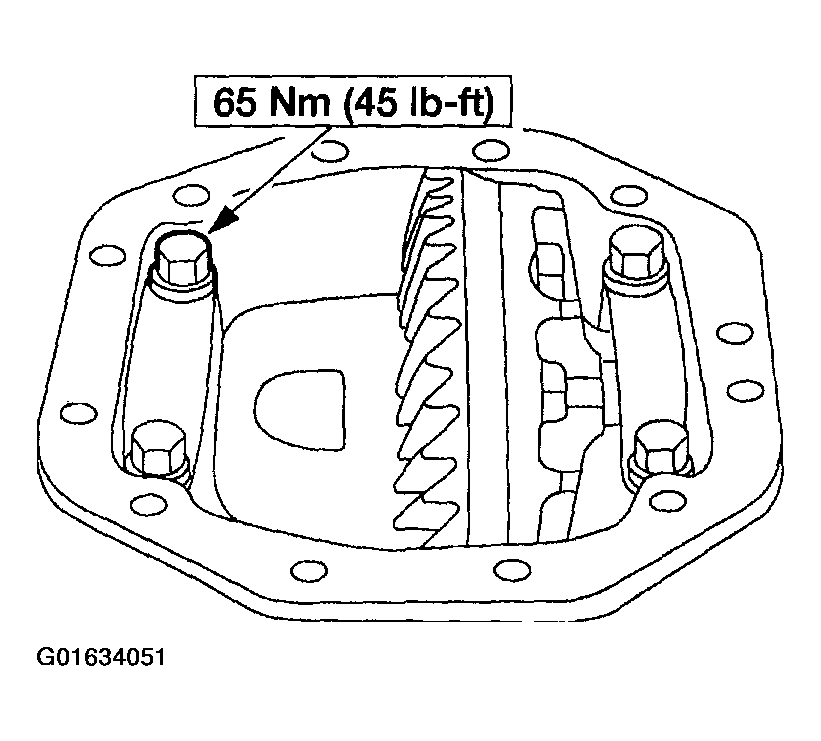

    Fig 7: Tightening Differential Case Assembly Bolts
    G01634051Courtesy of FORD MOTOR CO.
  8. Verify that the differential case rotates freely.
  9. Using the special tools, measure the backlash at three equally spaced points on the differential ring gear.
    1. Mount the special tool.
    2. Position the special tool.
    3. Zero the indicator.
    4. Turn the differential ring gear without turning the pinion gear. Record the measurement.
    • The backlash tolerance is 0.13 mm (0.005 in) to 0.20 mm (0.008 in) and cannot vary more than 0.05 mm (0.002 in) between points checked. A backlash variation of more than 0.005 mm (0.002 in) indicates gear/case runout.
    • If the backlash is not within specification, correct by increasing the thickness of one differential bearing shim and decreasing the thickness of the other differential bearing shim by the same amount.

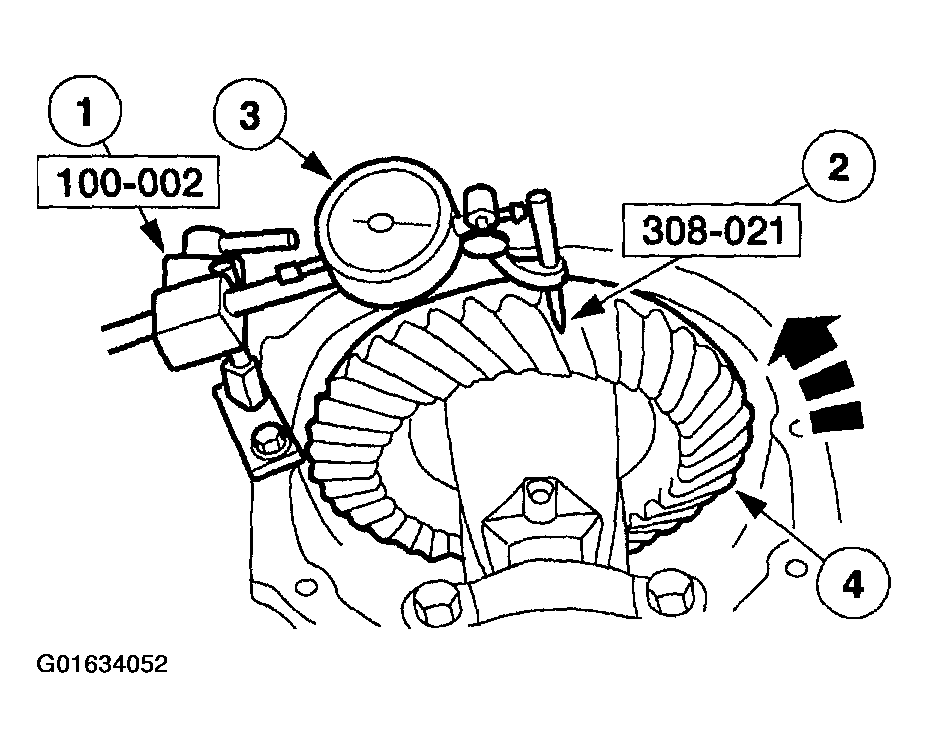

    Fig 8: Turning Differential Ring Gear To Measure Backlash
    G01634052Courtesy of FORD MOTOR CO.
