Test procedure

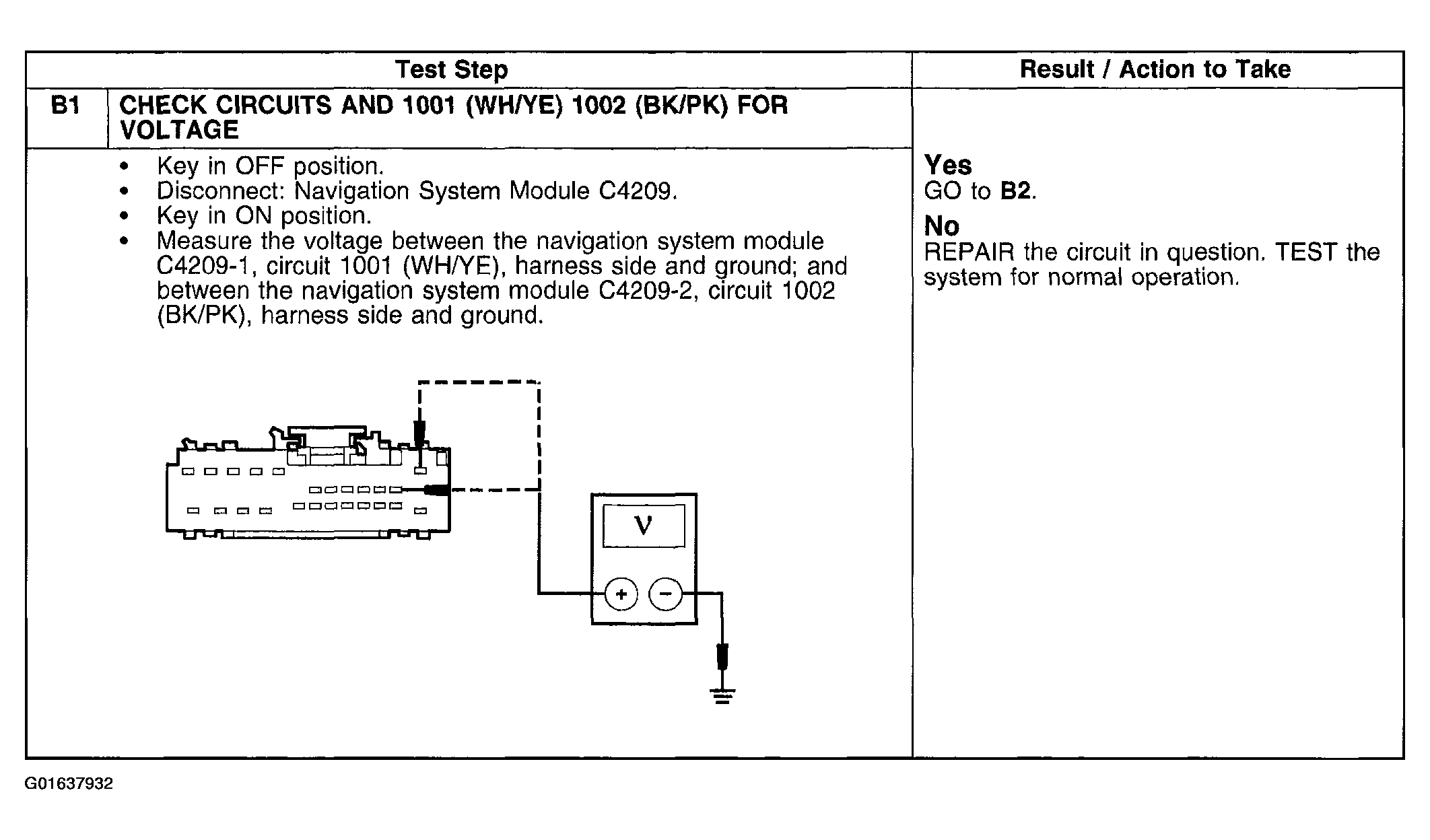

Fig 1: Pinpoint Test B: No Communication With The Navigation System Module (Step B1)
G01637932Courtesy of FORD MOTOR CO.

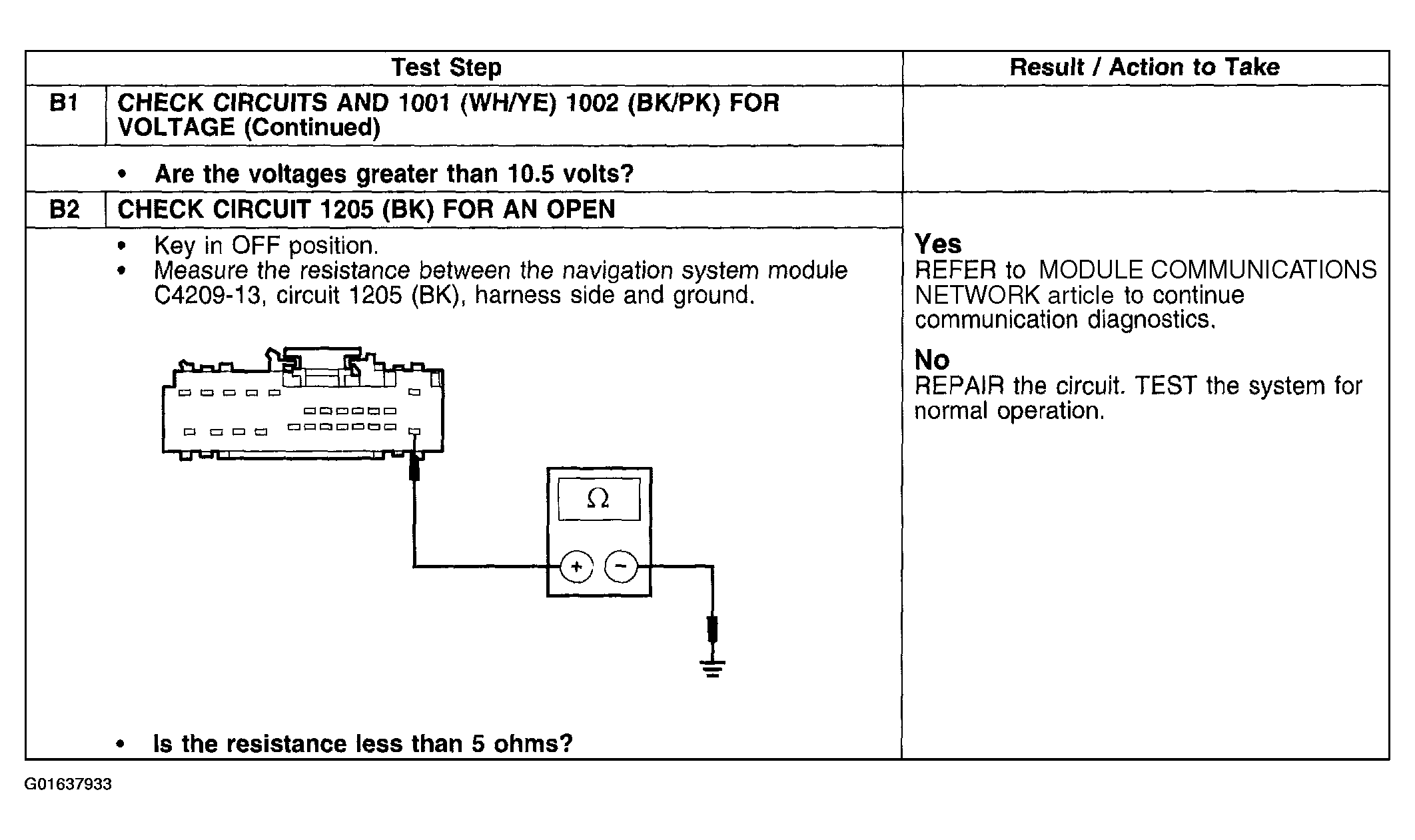

Fig 2: Pinpoint Test B: No Communication With The Navigation System Module (Steps B1 Cont. & B2)
G01637933Courtesy of FORD MOTOR CO.
