Test Procedure

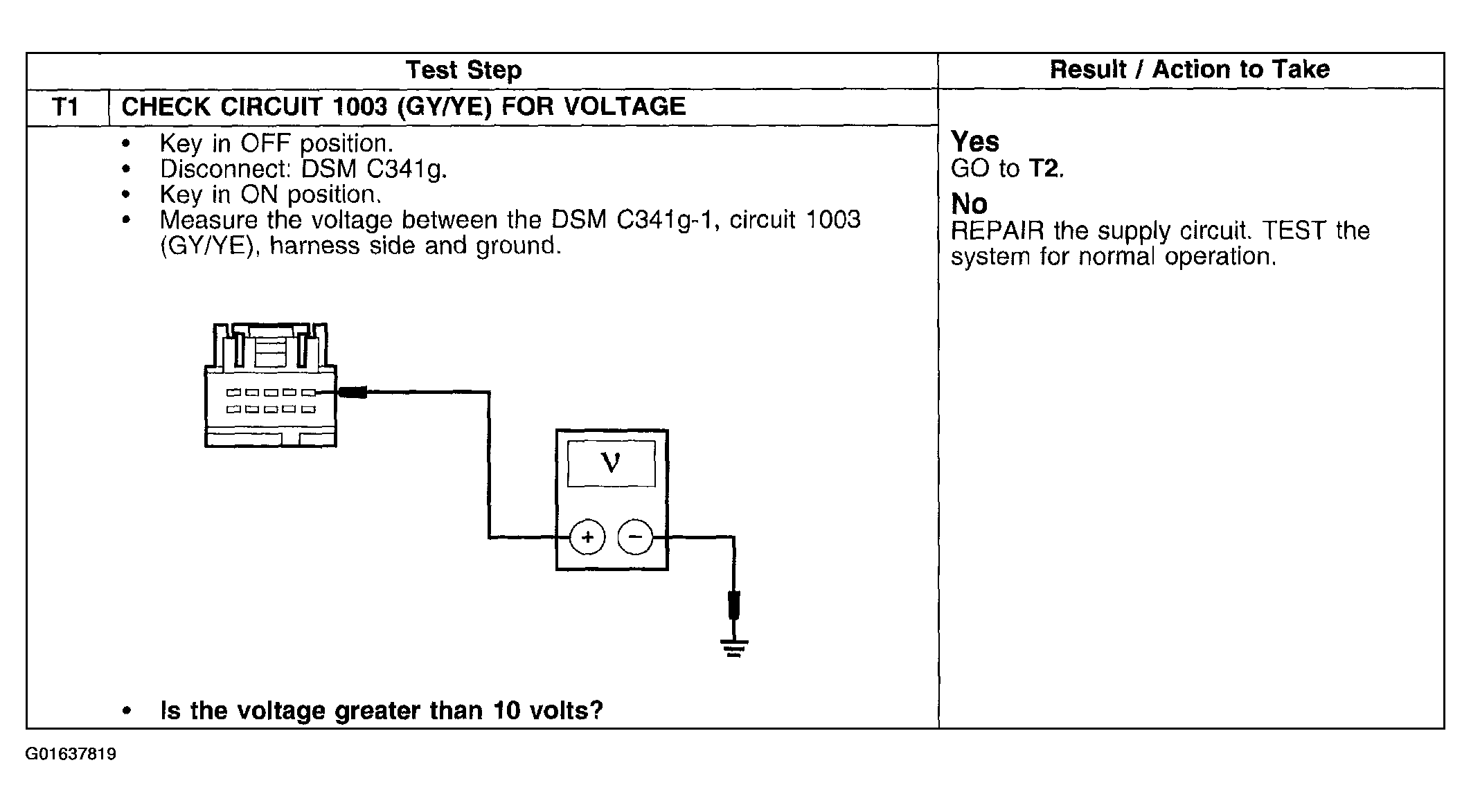

Fig 1: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Step T1)
G01637819Courtesy of FORD MOTOR CO.

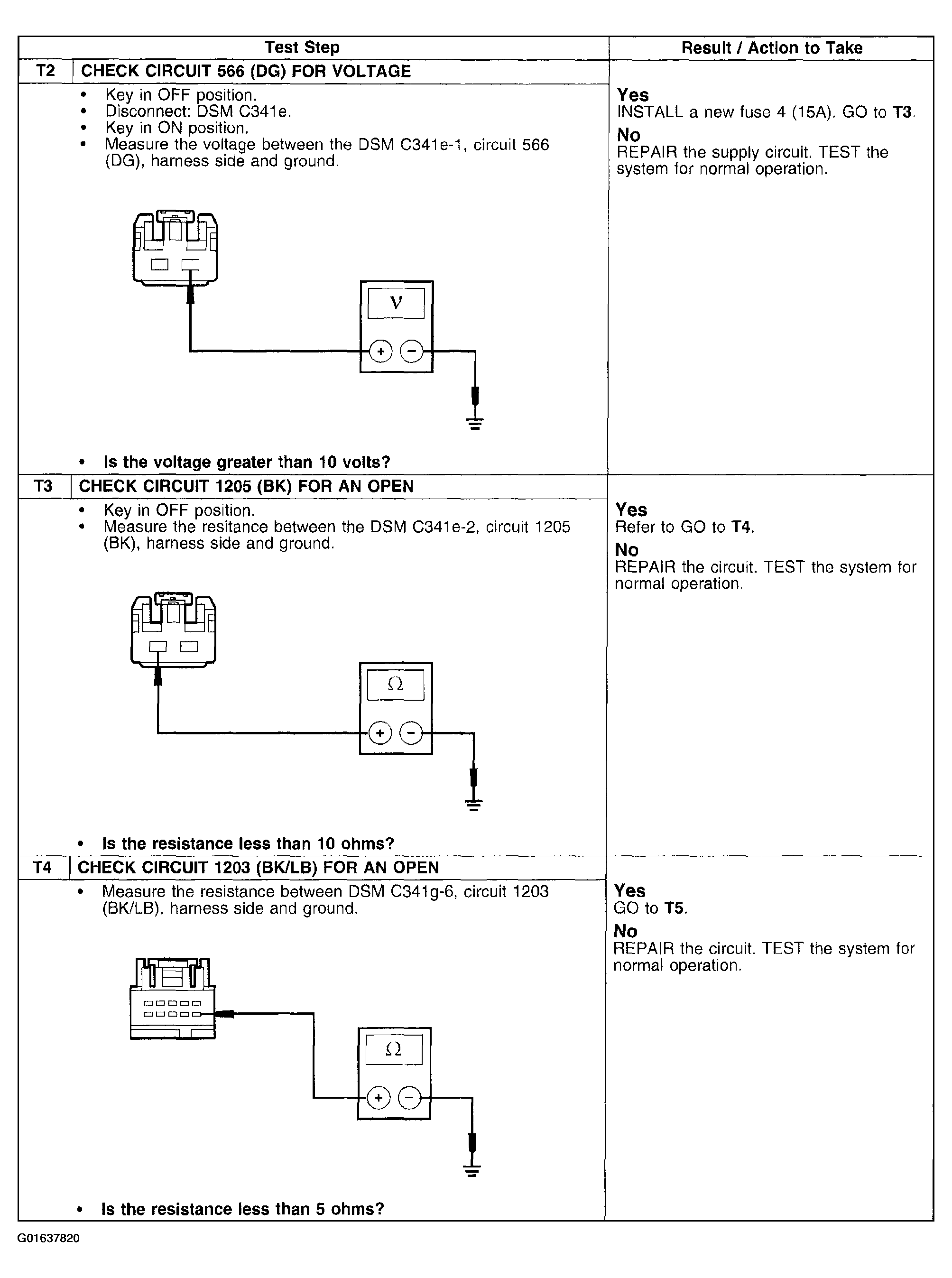

Fig 2: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Steps T2-T4)
G01637820Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test T: No Communication With The Driver Seat Module (DSM) (Steps T2-T4)
G01637821Courtesy of FORD MOTOR CO.
