Connector Circuit Reference

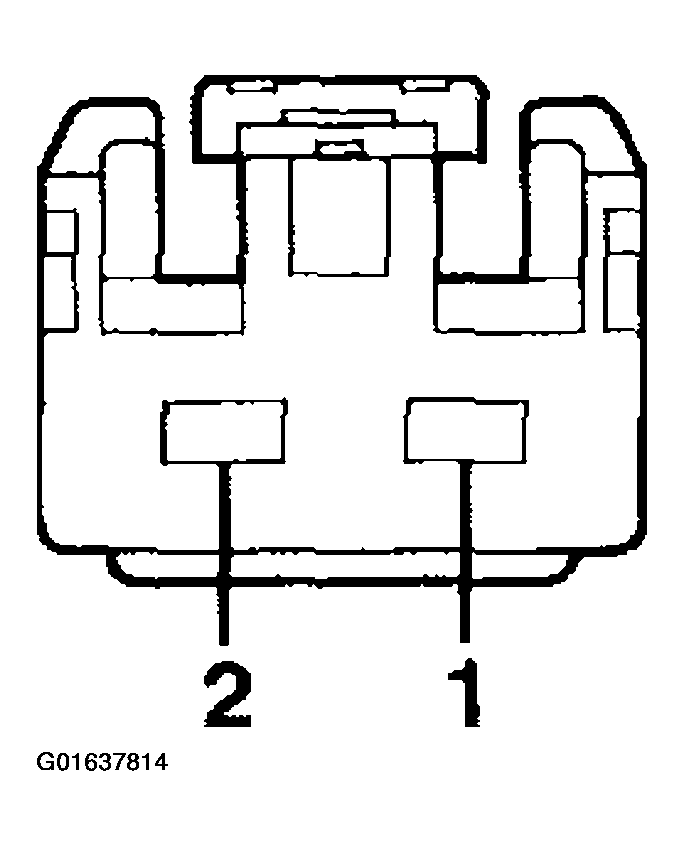

Fig 1: Identifying Driver Seat Module (DSM) C341e Connector Terminals And Specification (1 Of 2)
G01637814Courtesy of FORD MOTOR CO.

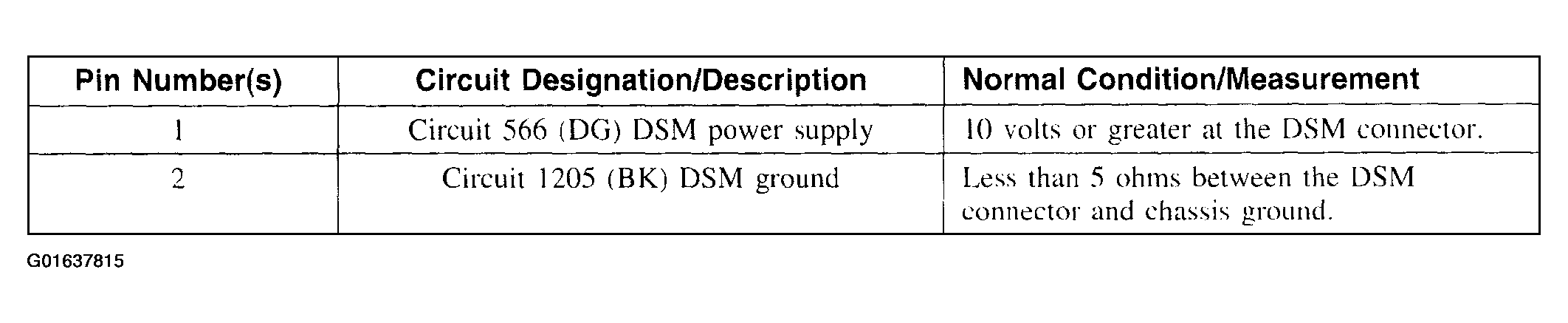

Fig 2: Identifying Driver Seat Module (DSM) C341e Connector Terminals And Specification (2 Of 2)
G01637815Courtesy of FORD MOTOR CO.

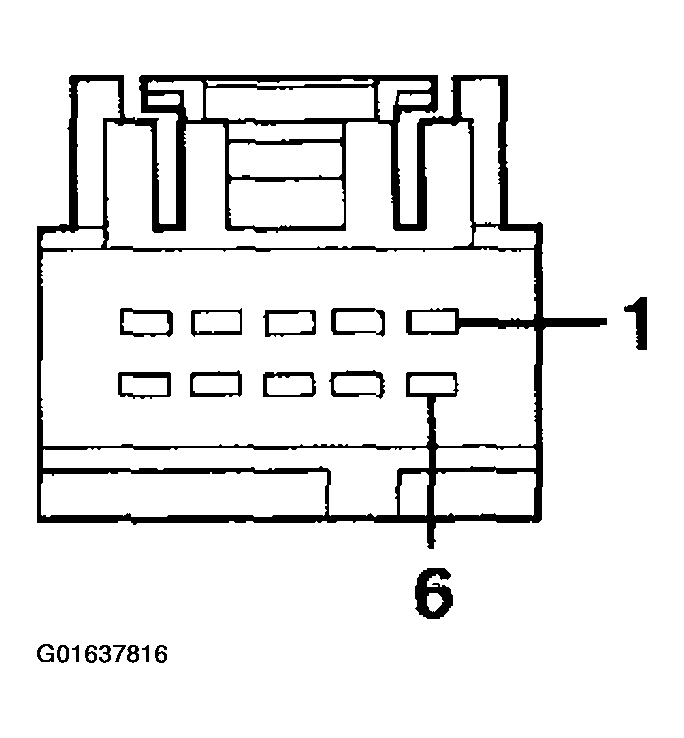

Fig 3: Identifying Driver Seat Module (DSM) C341g Connector Terminals And Specification (1 Of 2)
G01637816Courtesy of FORD MOTOR CO.

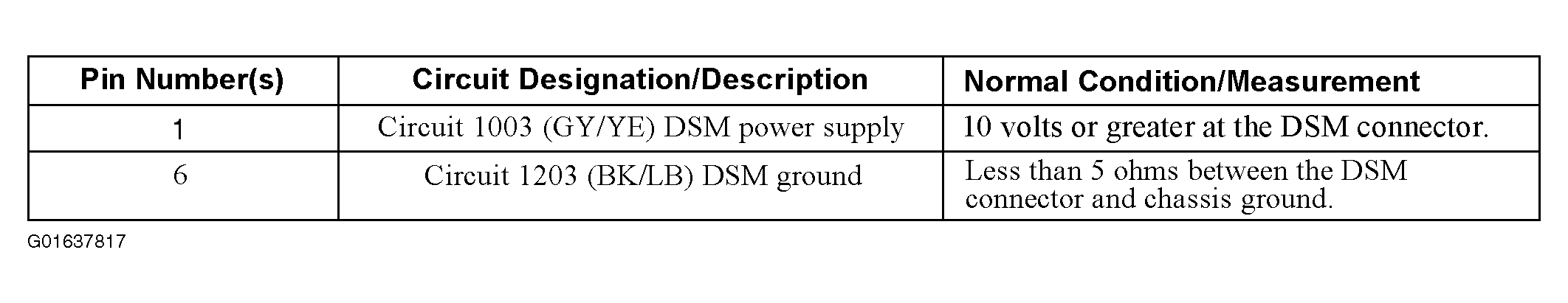

Fig 4: Identifying Driver Seat Module (DSM) C341g Connector Terminals And Specification (2 Of 2)
G01637817Courtesy of FORD MOTOR CO.
