Symptom Chart

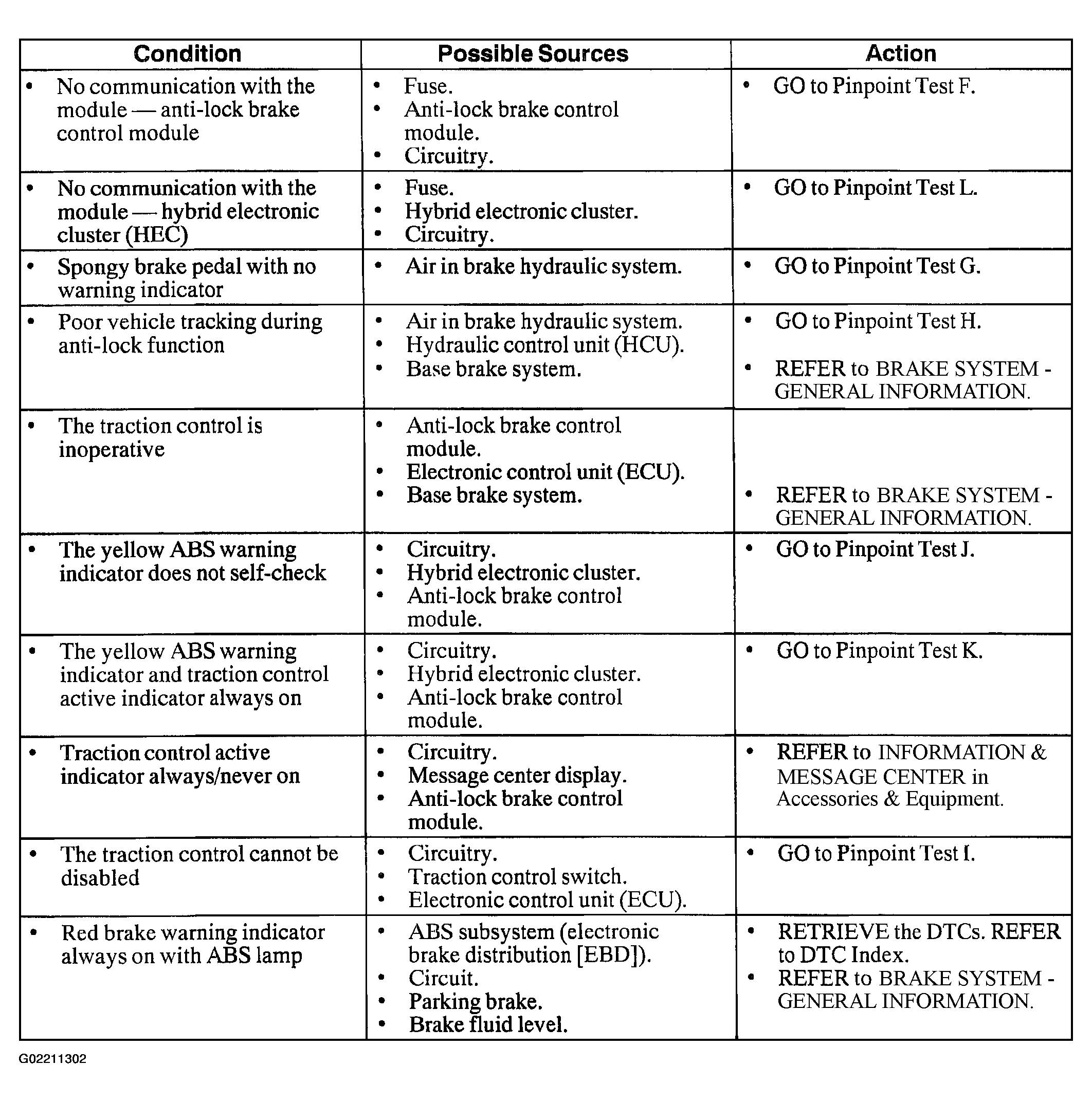

Fig 1: Anti-Lock Brake Control Trouble Symptom Chart
G02211302Courtesy of FORD MOTOR CO.
