Toe Adjustment - Front

Start the engine (6007) and center the steering wheel (3600).

Fig 1: Identifying Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings; follow the manufacturer's instructions.

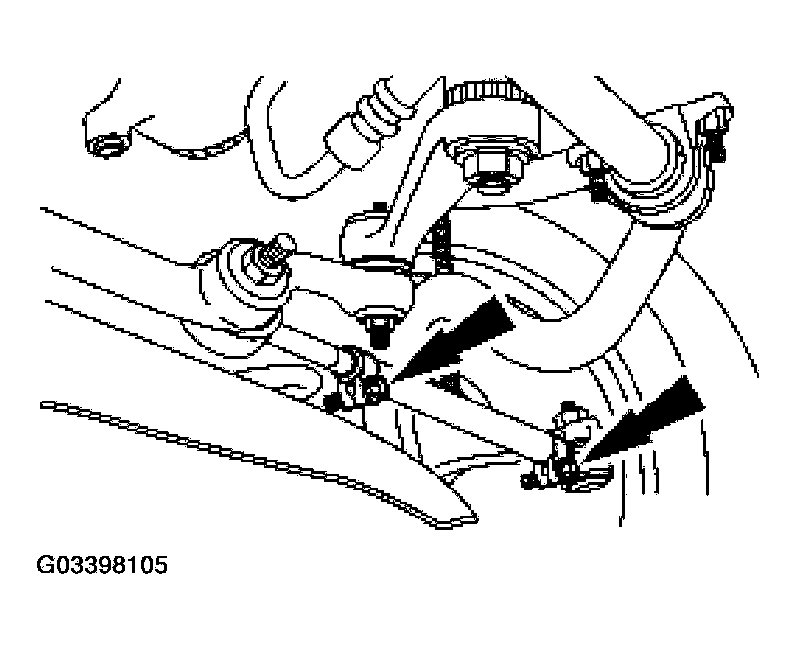

Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end (3A130) threads.

  Fig 2: Loosening Nuts
  Courtesy of FORD MOTOR CO.

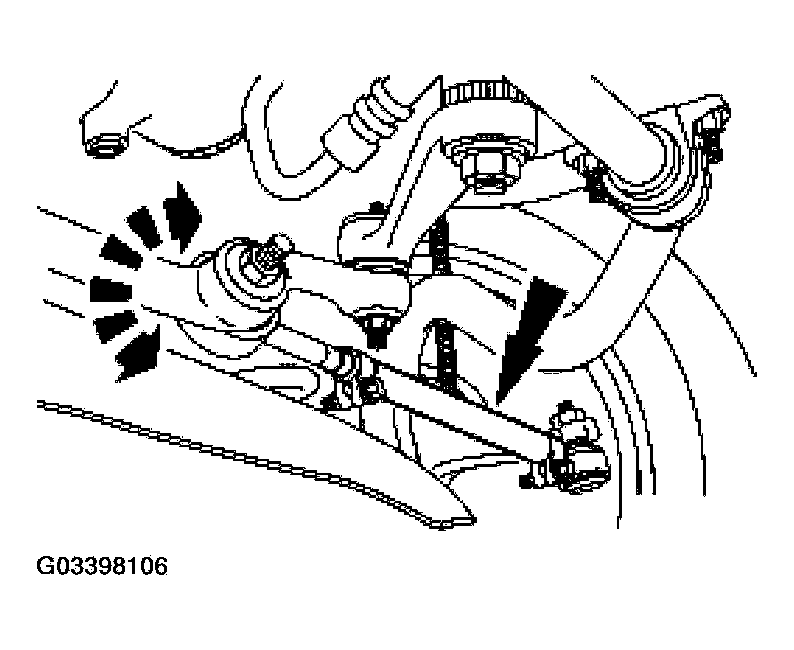

Rotate the adjusting sleeves to obtain the correct toe setting.

Fig 3: Tightening Nuts
Courtesy of FORD MOTOR CO.
Position the adjusting sleeve clamps within the horizontal and vertical limits shown. Tighten the nuts.

Fig 4: Rechecking Toe Settings
Courtesy of FORD MOTOR CO.
Recheck the toe settings; follow the manufacturer's instructions.
