Removal And Installation: Module: Removal

  1. Lower the panel.
    Fig 1: Identifying Lower Panel
    G02212266Courtesy of FORD MOTOR CO.
  2. Remove the lamp from the panel and disconnect the wiring.
    Fig 2: Removing Lamp From Panel And Disconnecting Wiring
    G02212267Courtesy of FORD MOTOR CO.
  3. Remove the screws.

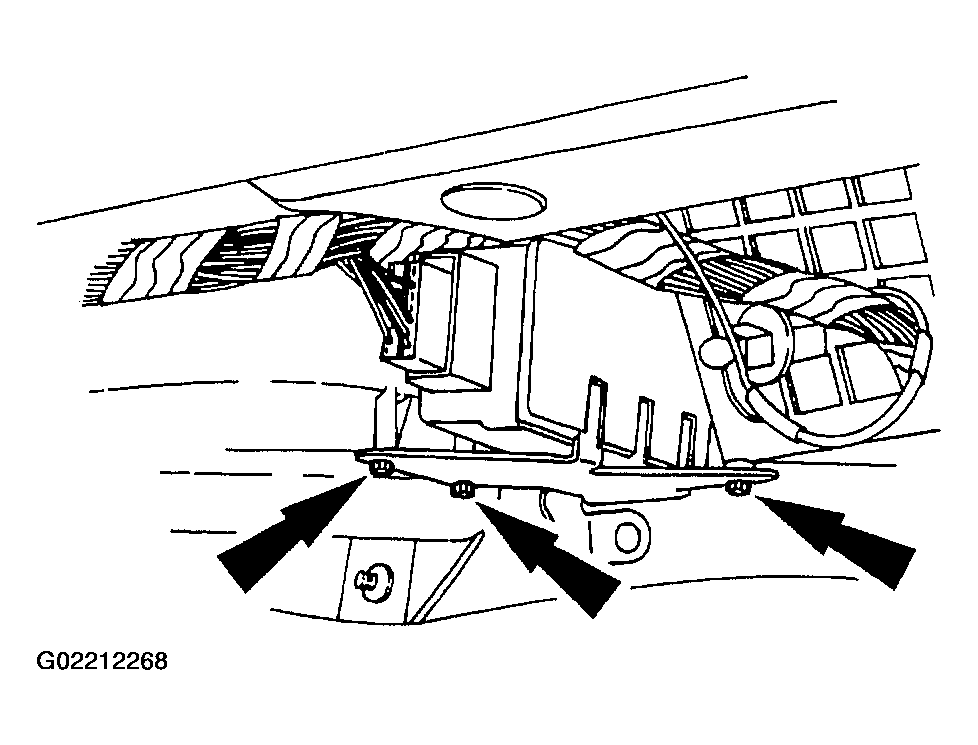

    Fig 3: Removing Screws
    G02212268Courtesy of FORD MOTOR CO.
  4. Disconnect the wiring and remove the control module.

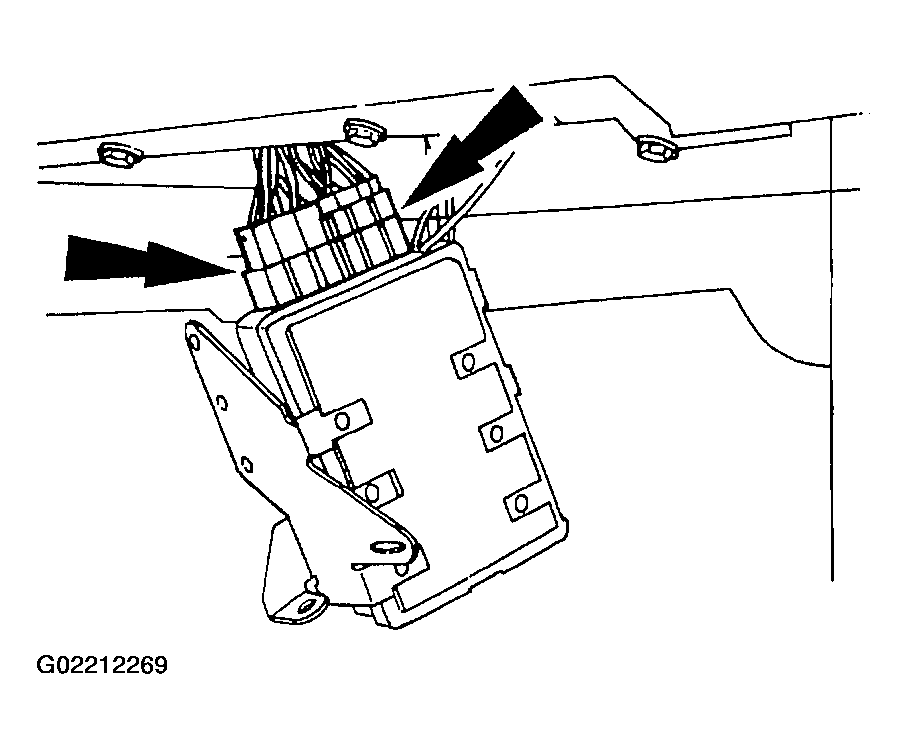

    Fig 4: Disconnecting Wiring And Removing Control Module
    G02212269Courtesy of FORD MOTOR CO.
