Pinpoint Test H: No Module/Network Communication - No Power To Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

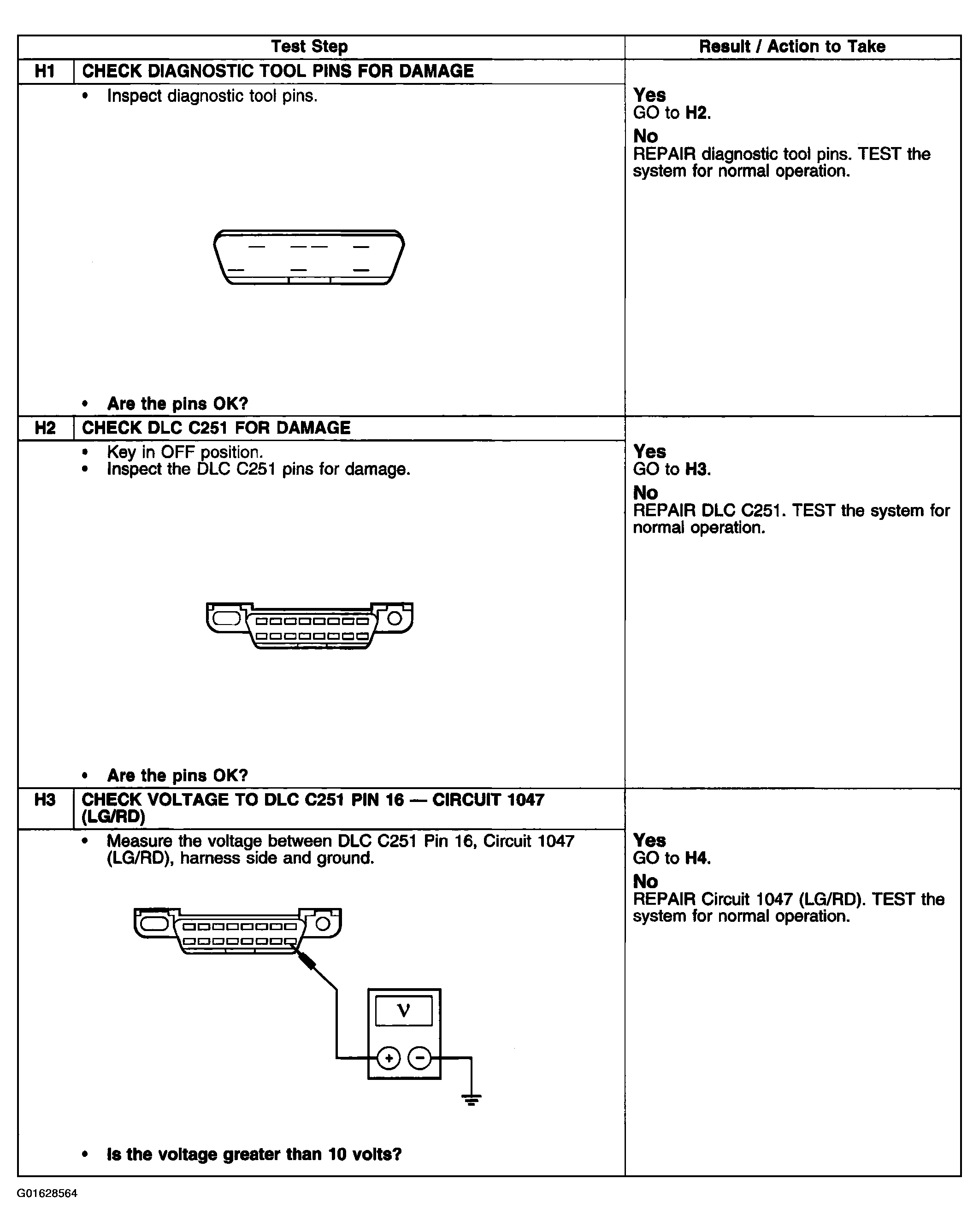

Fig 1: Pinpoint Test H Chart - No Module/Network Communication - No Power To Diagnostic Tool (H1-H3)
Courtesy of FORD MOTOR CO.

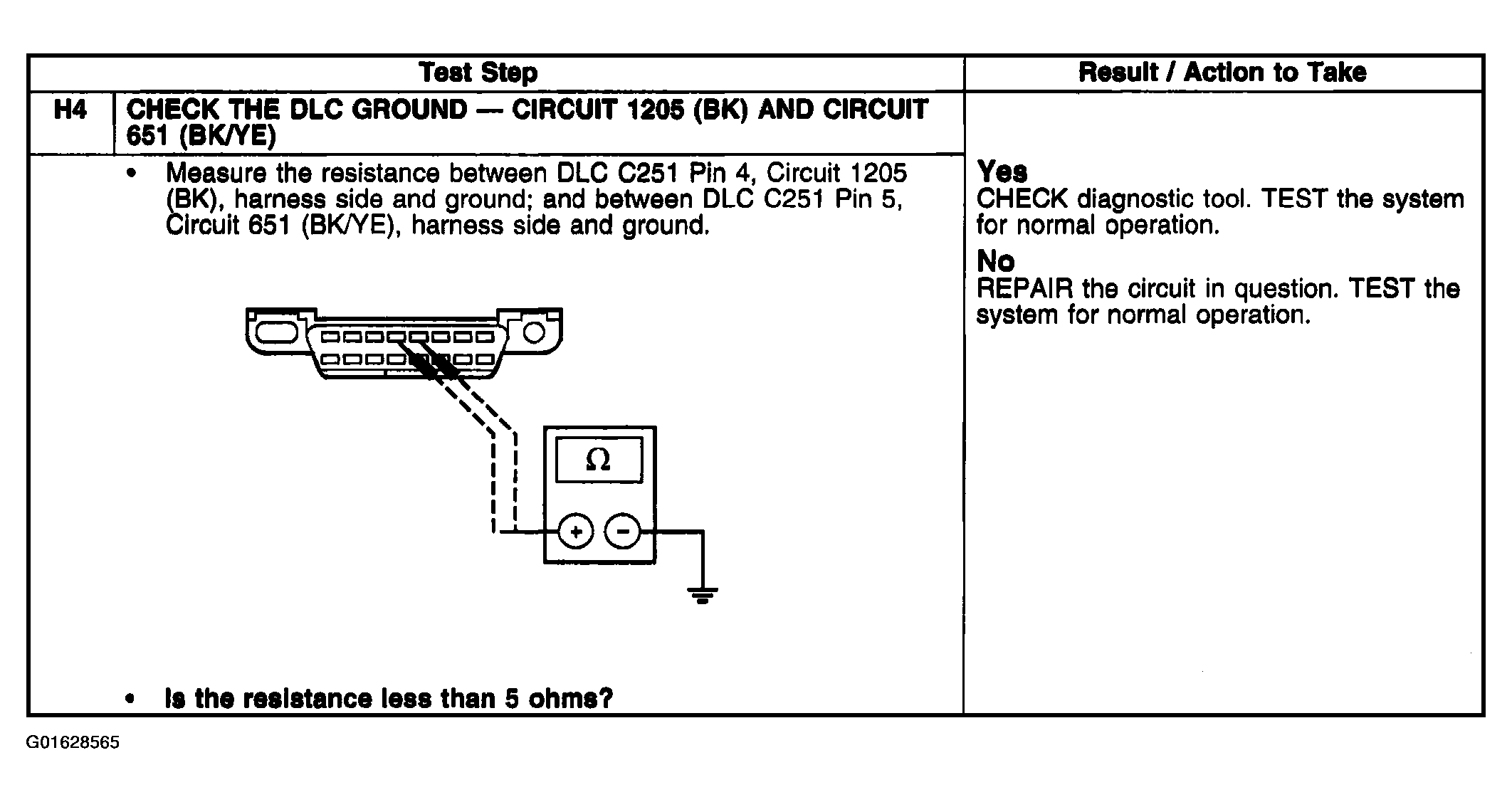

Fig 2: Pinpoint Test H Chart - No Module/Network Communication - No Power To Diagnostic Tool (H4)
