Valve Springs: Installation

  1. Position the valve spring and the valve spring retainers.

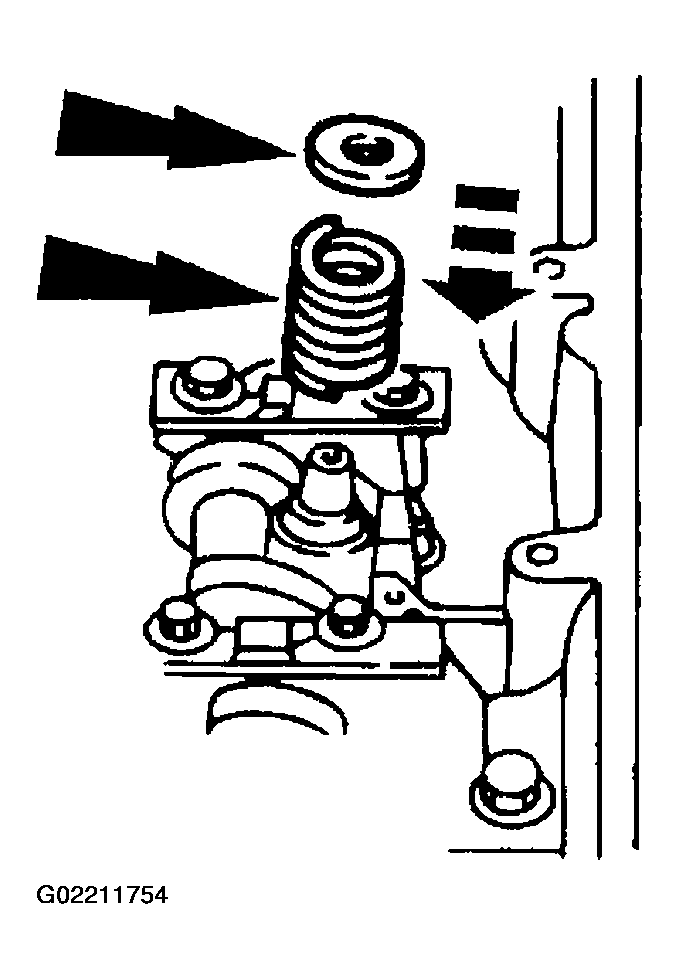

    Fig 1: Positioning Valve Spring And Valve Spring Retainers
    G02211754Courtesy of FORD MOTOR CO.
  2. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.
    Fig 2: Installing Valve Spring Spacer Between Valve Spring Coils
    G02211755Courtesy of FORD MOTOR CO.
  3. Use the Valve Spring Compressor to compress the valve spring. Install the valve spring retainer keys.

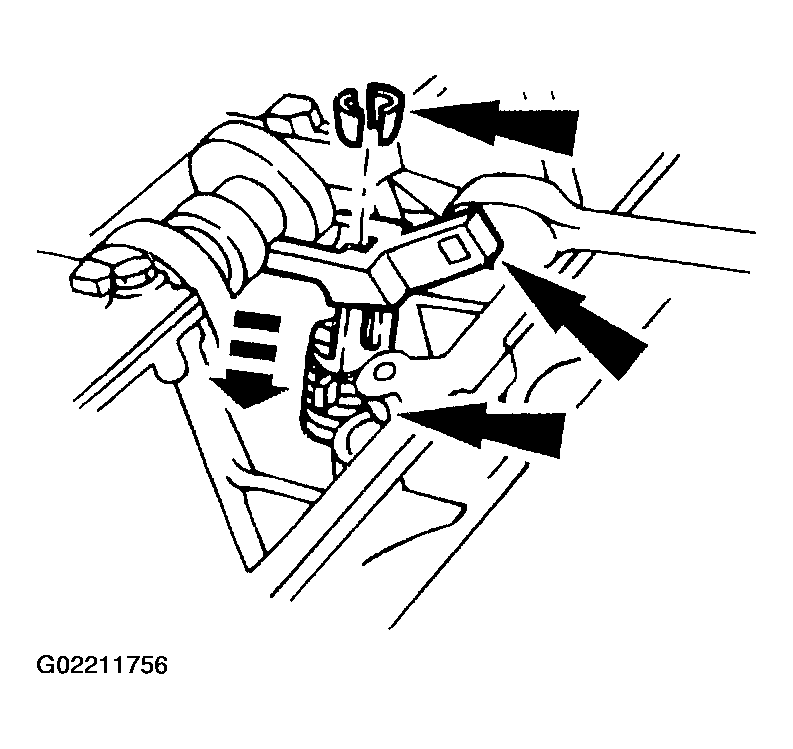

    Fig 3: Installing Valve Spring Retainer Keys
    G02211756Courtesy of FORD MOTOR CO.
  4. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
