Cylinder Head: Assembly

    NOTE: Do not use metal scrapers or other tools to clean the cylinder head.
  1. Use a plastic scraper and solvent to clean the cylinder head.
    • Use metal surface cleaner.
  2. Lubricate the camshaft journals with clean engine oil.

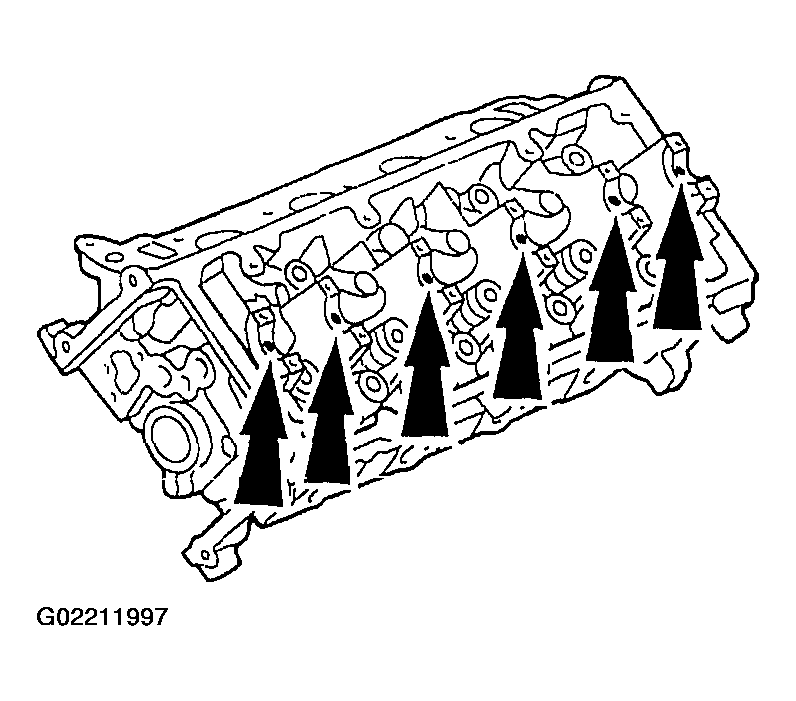

    Fig 1: Locating Camshaft Journals Lubricating Surface
    G02211997Courtesy of FORD MOTOR CO.
  3. Install the camshaft and the camshaft bearing caps.
    1. Lubricate and position the camshaft bearing caps, with clean engine oil.
    2. Install the bolts loosely.

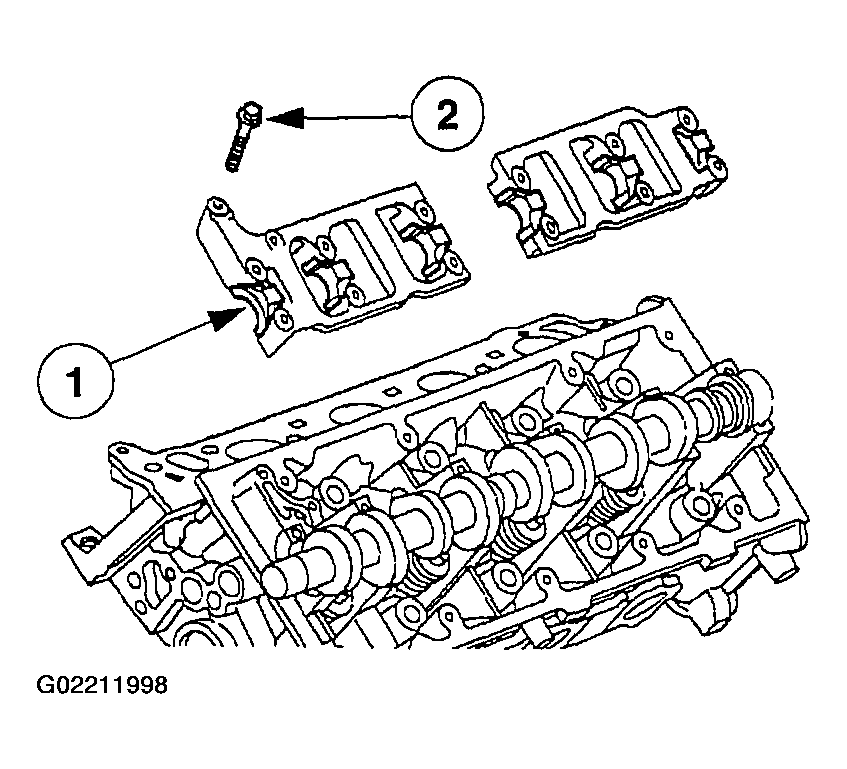

    Fig 2: Installing Camshaft And Camshaft Bearing Caps
    G02211998Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown.

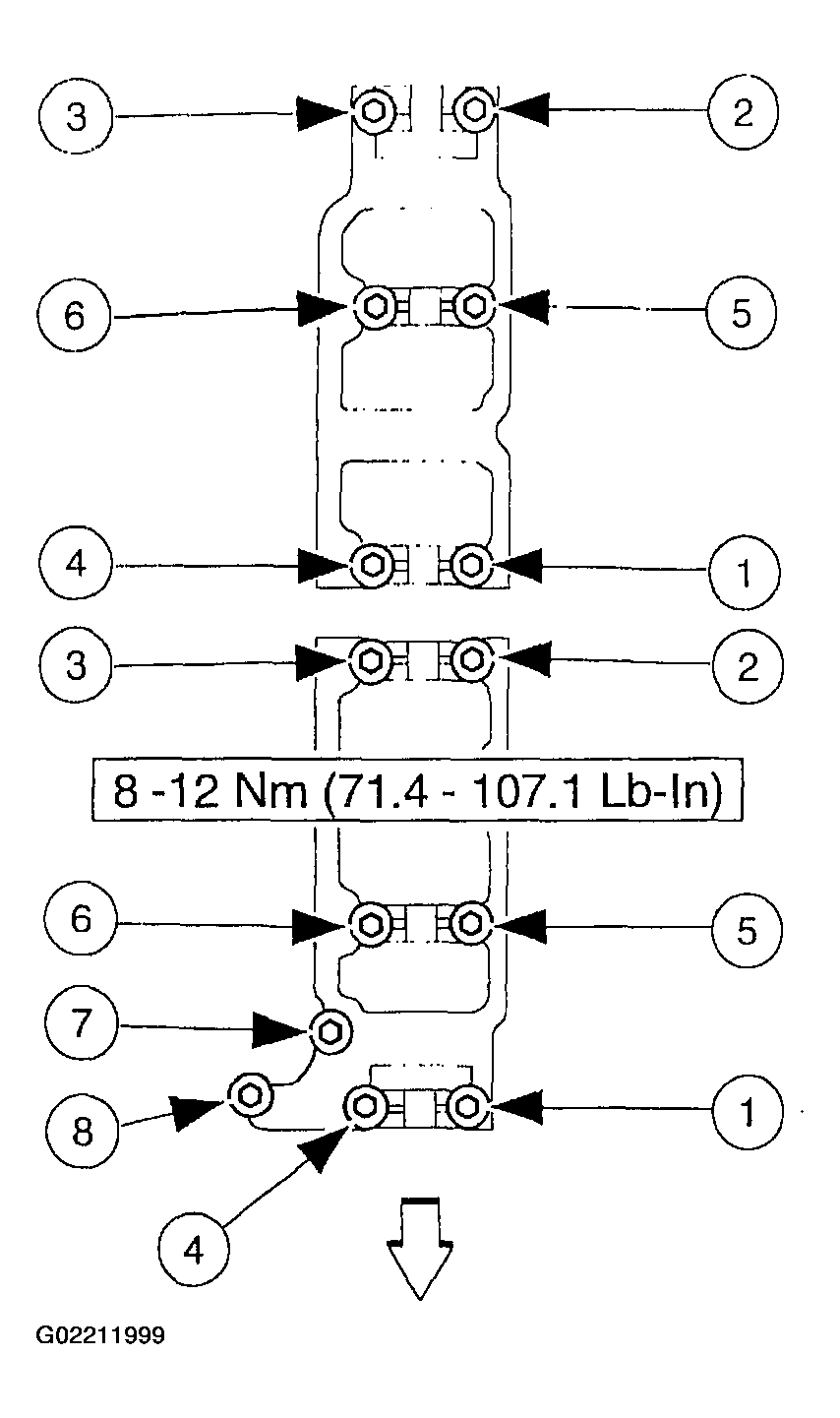

    Fig 3: Identifying Camshaft Bearing Caps Bolts Tightening Sequence
    G02211999Courtesy of FORD MOTOR CO.
  5. Install the valves in the valve guides located in the cylinder head.

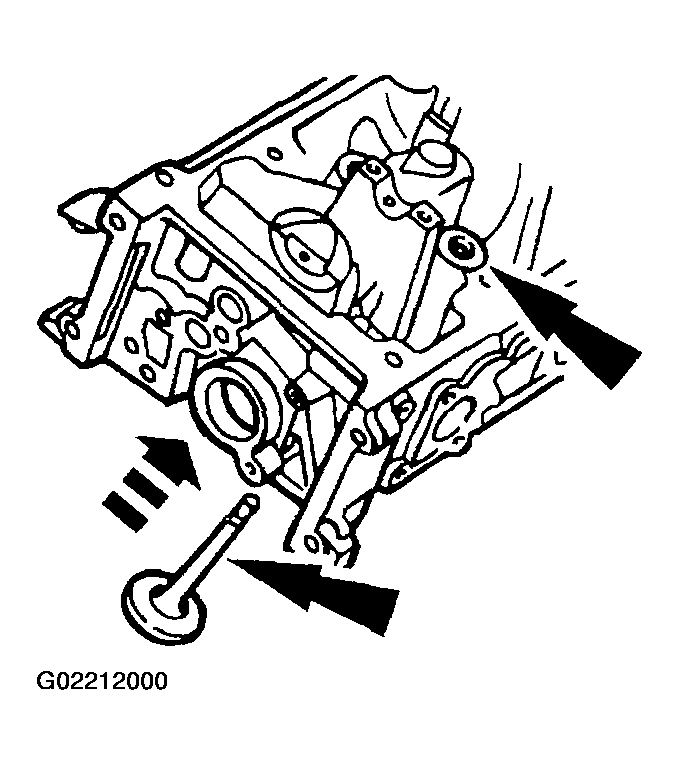

    Fig 4: Installing Valves In Valve Guides
    G02212000Courtesy of FORD MOTOR CO.
  6. Use the (A) Valve Stem Seal Replacer to install the (B) valve stem seals.

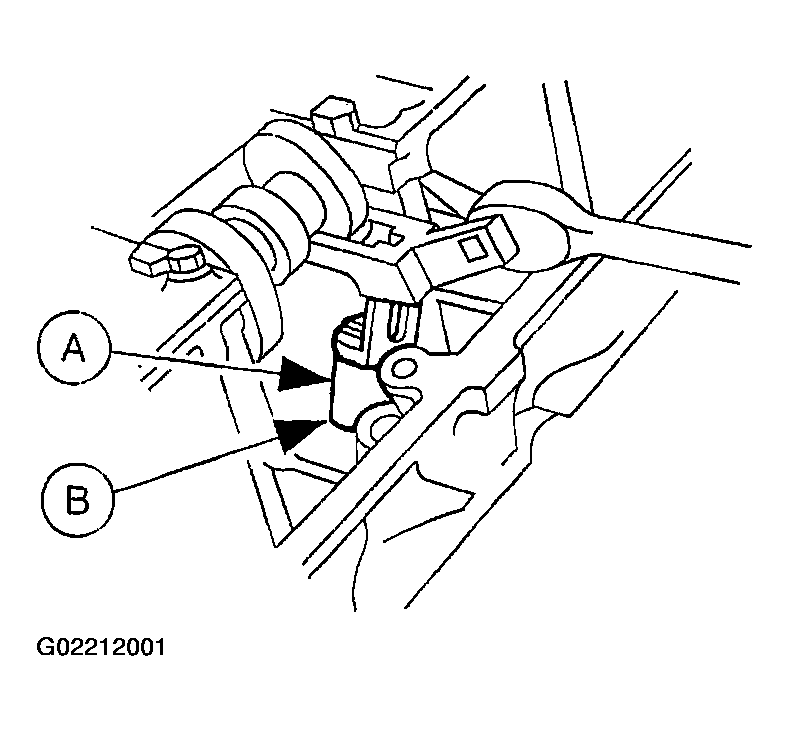

    Fig 5: Installing Valve Stem Seals
    G02212001Courtesy of FORD MOTOR CO.
  7. Install the valve springs and the valve spring retainers onto the valves.

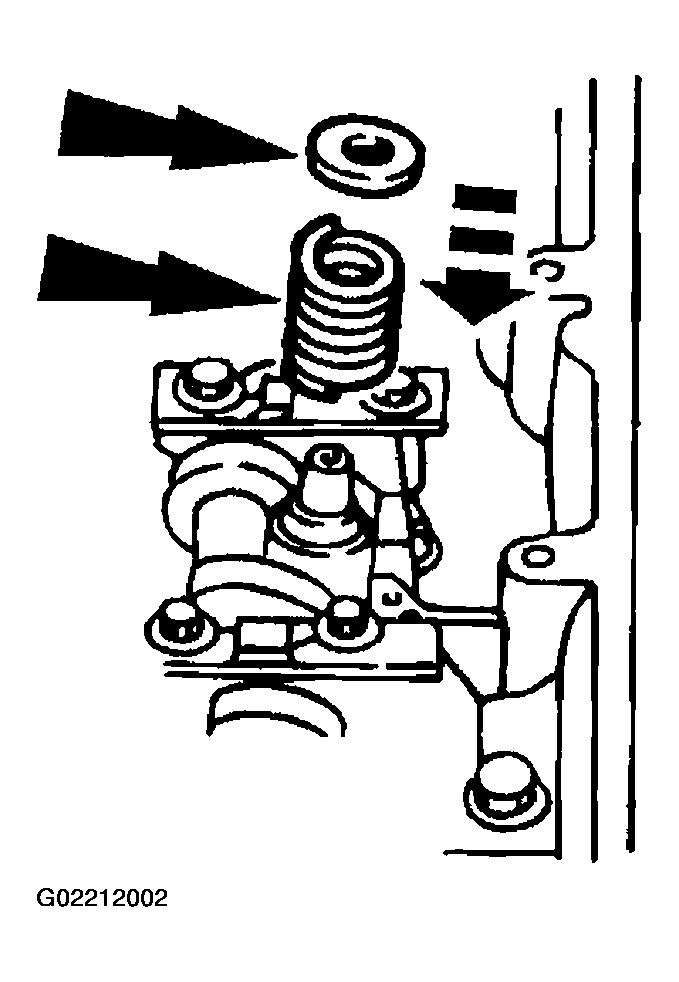

    Fig 6: Installing Valve Springs And Valve Spring Retainers
    G02212002Courtesy of FORD MOTOR CO.
  8. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.
    Fig 7: Installing Valve Spring Spacer Between Valve Spring Coils
    G02212003Courtesy of FORD MOTOR CO.
  9. Use the Valve Spring Compressor to compress the valve springs, and install the valve spring retainer keys.

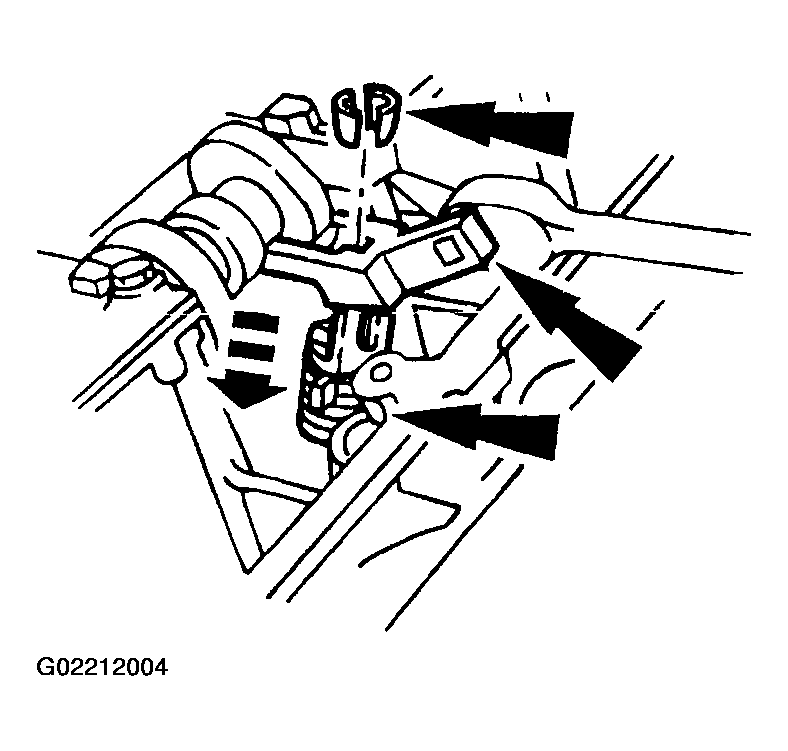

    Fig 8: Installing Valve Spring Retainer Keys
    G02212004Courtesy of FORD MOTOR CO.
  10. Install the hydraulic lash adjusters in their original location.

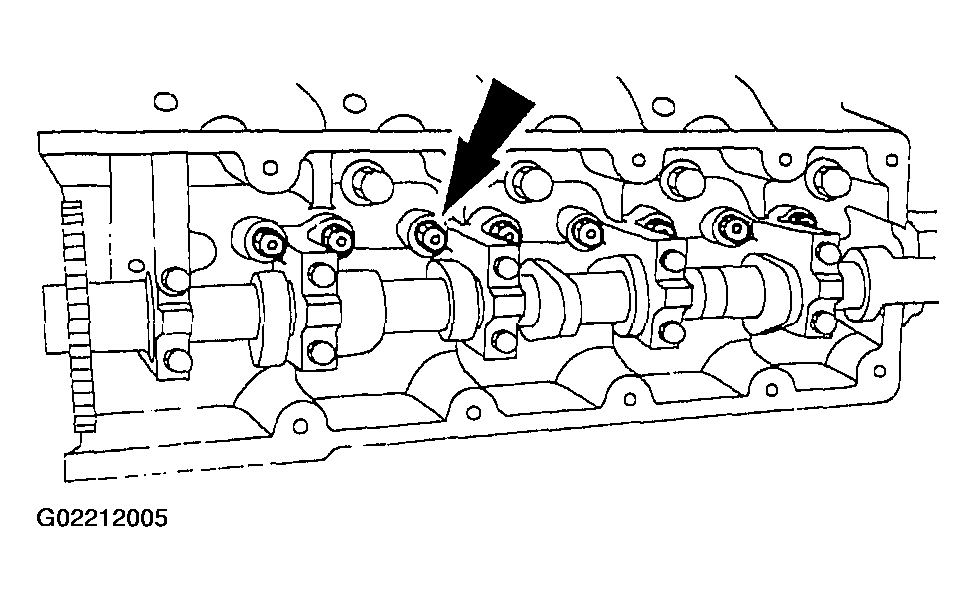

    Fig 9: Installing Hydraulic Lash Adjusters
    G02212005Courtesy of FORD MOTOR CO.
  11. Install the roller followers in their original location.

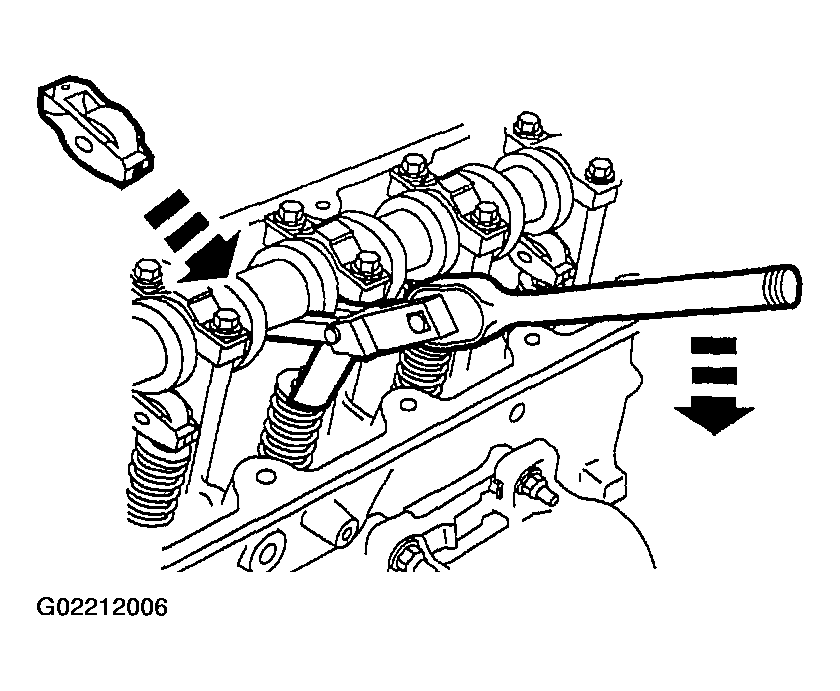

    Fig 10: Installing Roller Followers
    G02212006Courtesy of FORD MOTOR CO.
  12. Remove the Valve Spring Spacer.
    Fig 11: Removing Valve Spring Spacer
    G02212007Courtesy of FORD MOTOR CO.
