Engine Mechanical: Mechanical: Engine: Engine: Notes

  1. 4. Install the bolts and tighten in sequence in six steps:
    • Step 1: Tighten to 37-43 Nm (28-31 lb-ft).
    • Step 2: Tighten an additional 85-95 degrees.
    • Step 3: Loosen the bolts a minimum of one full turn (360 degrees).
    • Step 4: Tighten to 37-43 Nm (28-31 lb-ft).
    • Step 5: Tighten an additional 85-95 degrees.
    • Step 6: Tighten an additional 85-95 degrees.

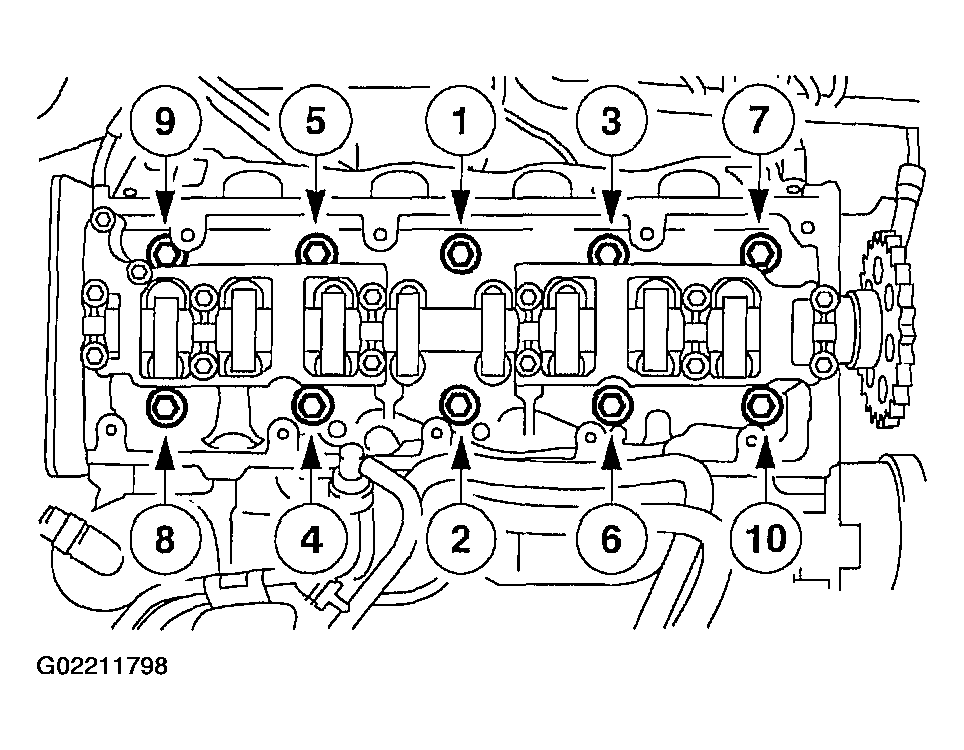

    Fig 1: Identifying RH Cylinder Head Bolts Tightening Sequence
    G02211798Courtesy of FORD MOTOR CO.
  2. 5. Raise the vehicle.
  3. 6. Install the exhaust to the exhaust manifolds.

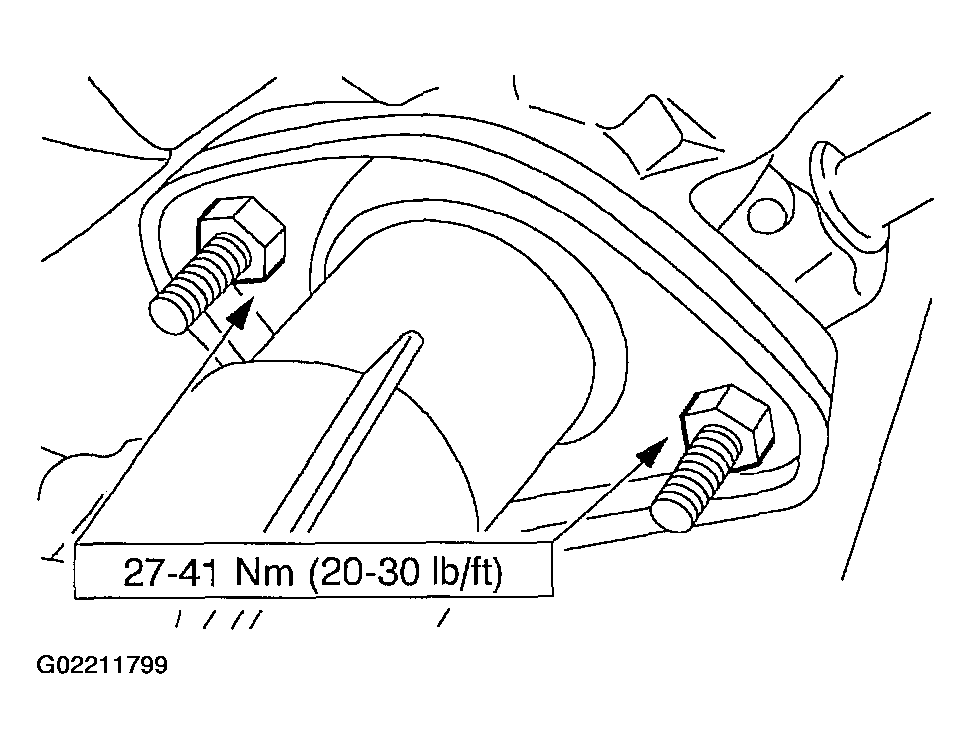

    Fig 2: Installing Exhaust Manifolds Nuts
    G02211799Courtesy of FORD MOTOR CO.
  4. 7. Lower the vehicle.
  5. 8. Install the bolt.

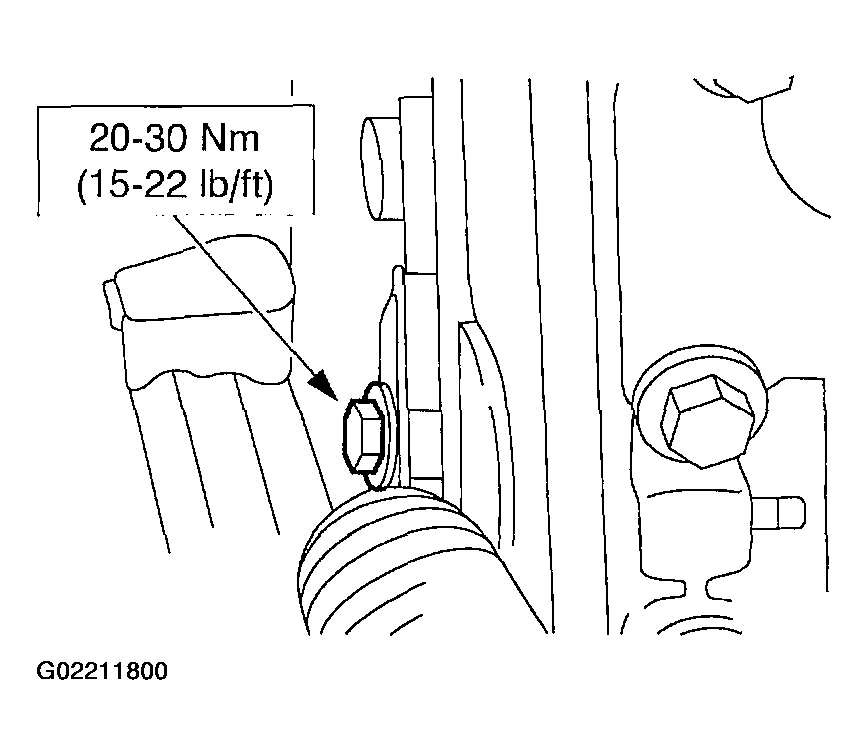

    Fig 3: Installing Bolt
    G02211800Courtesy of FORD MOTOR CO.

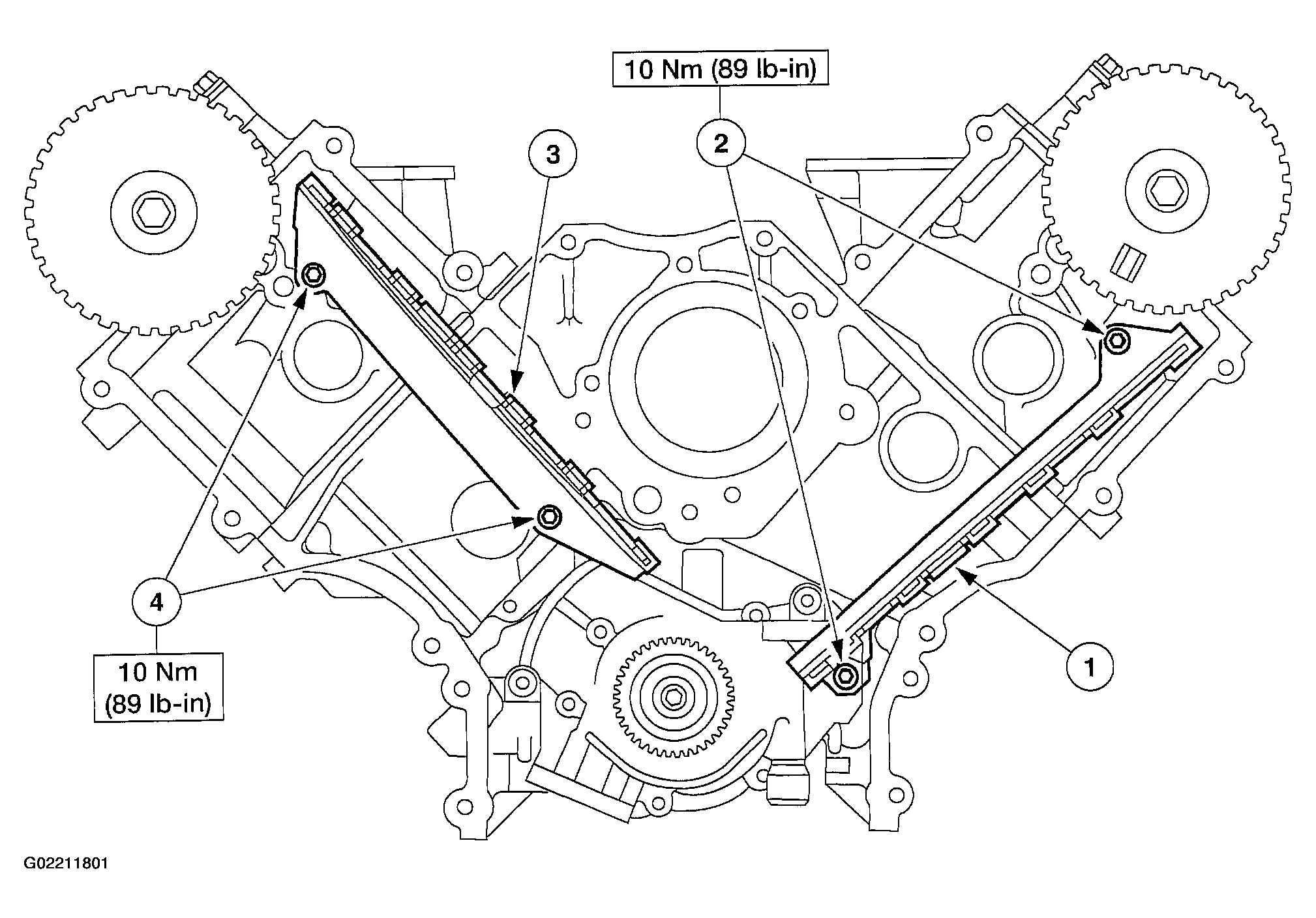

    Fig 4: Installing LH And RH Timing Chain Guides
    G02211801Courtesy of FORD MOTOR CO.
  6. 9. Install the LH and RH timing chain guides.
    1. Install LH timing chain guide.
    2. Tighten bolts to specified torque.
    3. Install RH timing chain guide.
    4. Tighten bolts to specified torque.
  7. 10. Install the timing chain/belts. For additional information, refer to TIMING DRIVE COMPONENTS .
  8. 11. Install the water bypass tube.

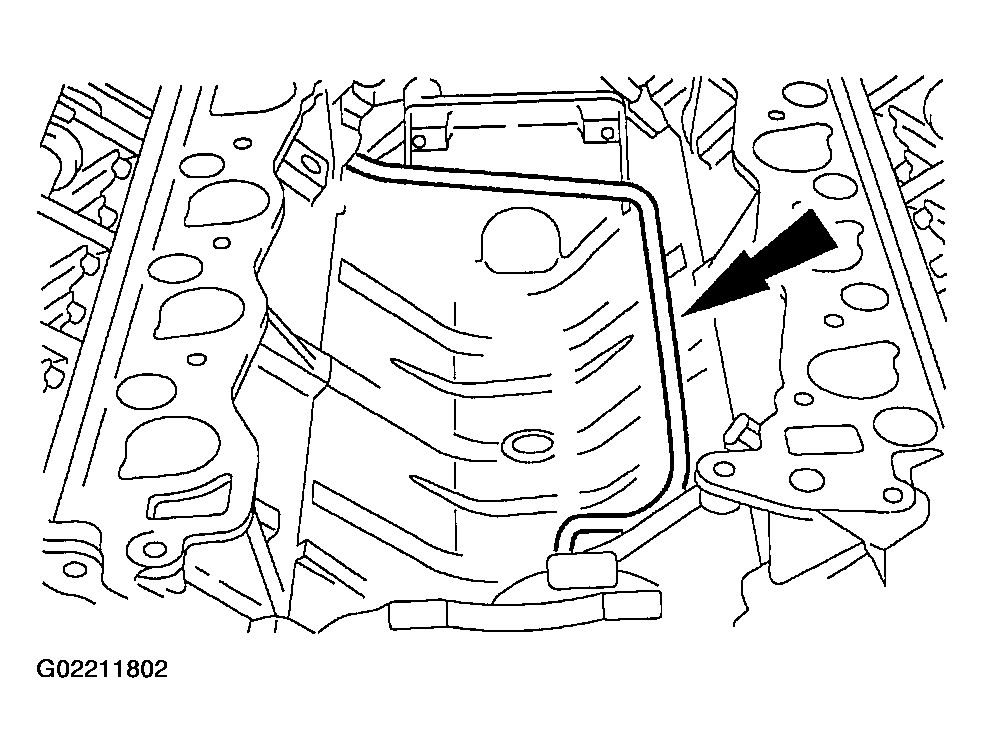

    Fig 5: Installing Water Bypass Tube
    G02211802Courtesy of FORD MOTOR CO.
  9. 12. Install the stud.

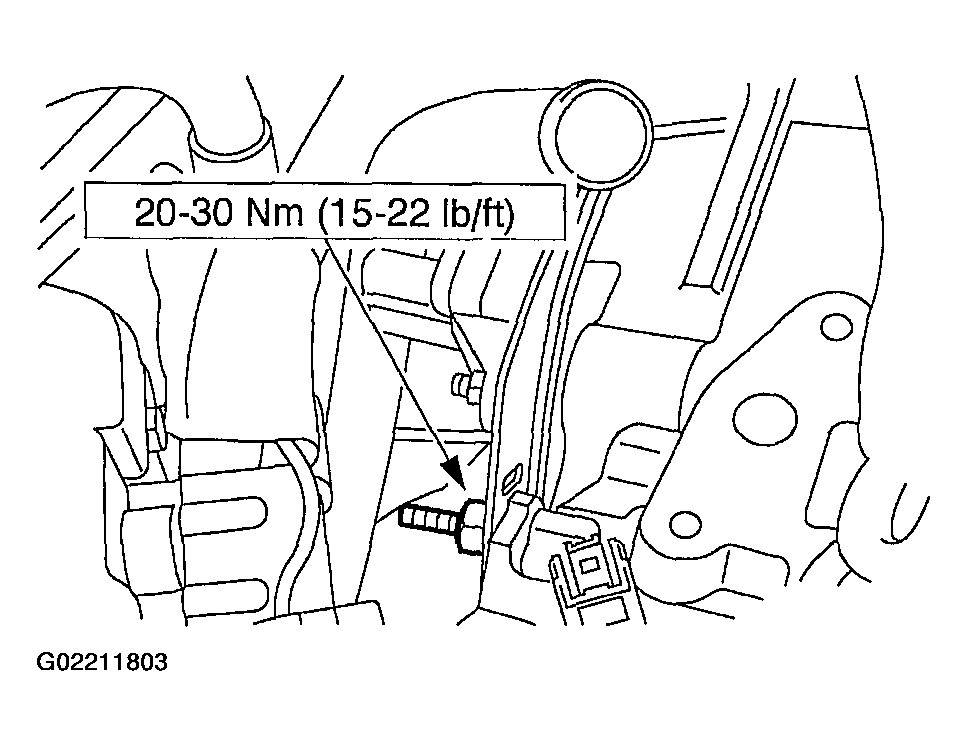

    Fig 6: Installing RH Cylinder Head Stud
    G02211803Courtesy of FORD MOTOR CO.
  10. 13. Connect the differential pressure feedback sensor electrical connector.

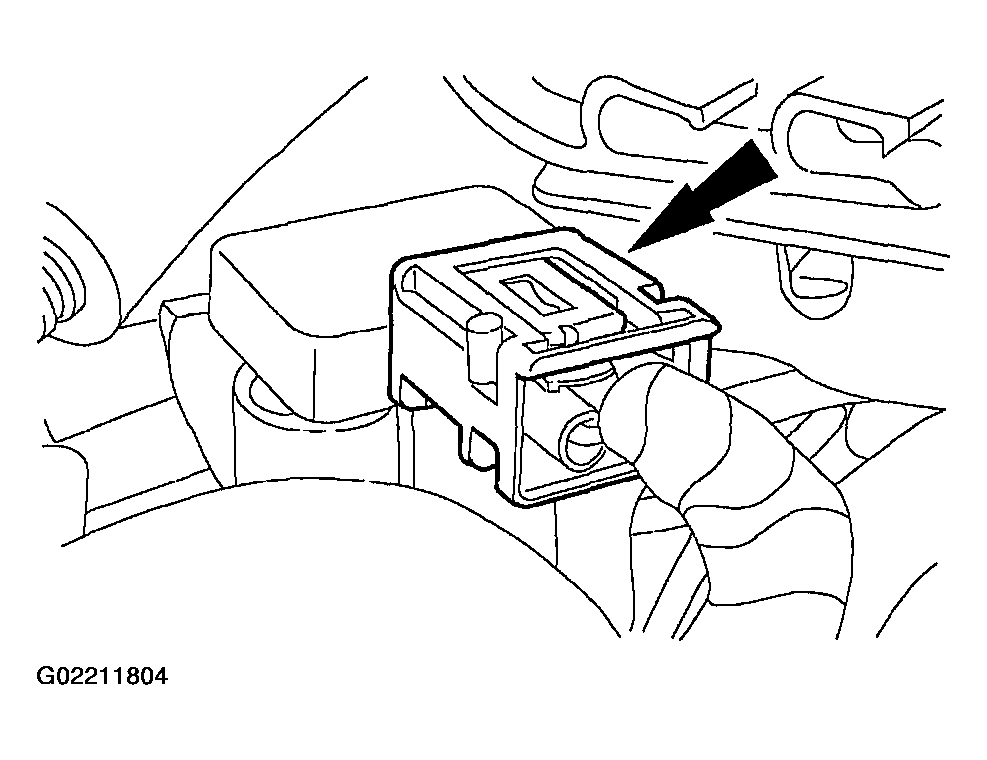

    Fig 7: Connecting Differential Pressure Feedback Sensor Electrical Connector
    G02211804Courtesy of FORD MOTOR CO.
  11. 14. Install the ground strap and tighten the nut.

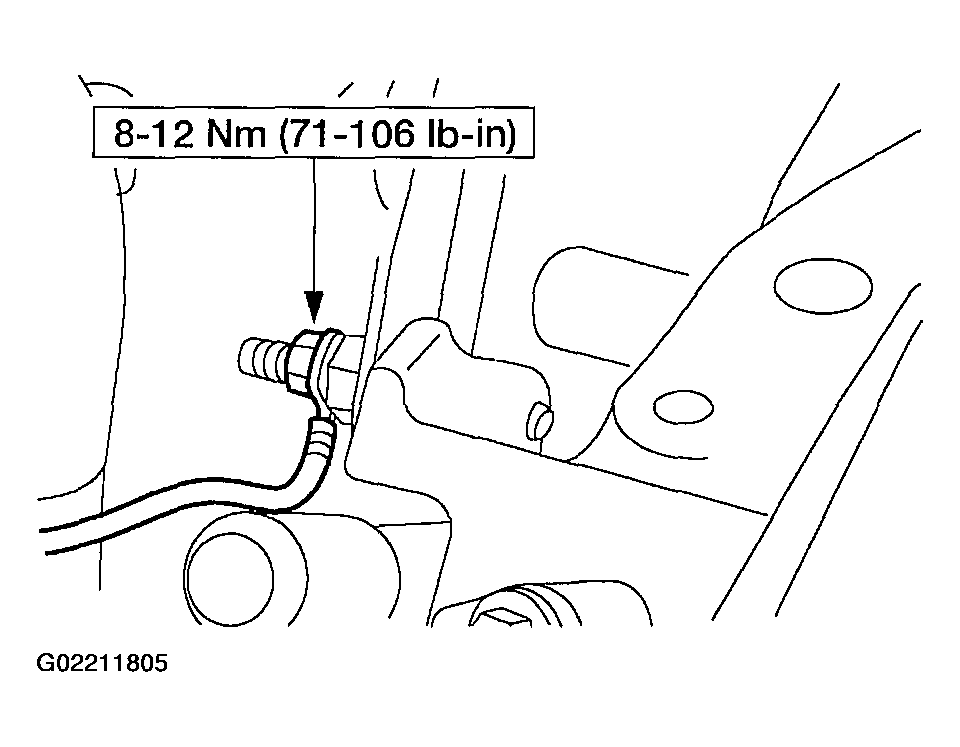

    Fig 8: Installing Ground Strap
    G02211805Courtesy of FORD MOTOR CO.
  12. 15. Install the heater water hose (18472) and position the clamp.
    Fig 9: Installing Heater Water Hose
    G02211806Courtesy of FORD MOTOR CO.
  13. 16. Install the A/C evaporator housing. For additional information, refer to HEATING AND VENTILATION .
  14. 17. Install the spark plugs.
  15. 18. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  16. 19. Install the valve covers. For additional information, refer to VALVE COVER RH  or VALVE COVER LH .
  17. 20. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  18. 21. Connect the battery ground cable.
