Selector Lever: Removal

  1. Remove the ignition switch lock cylinder (11582); refer to STEERING COLUMN SWITCHES .
  2. Remove the upper steering column shroud (3530).

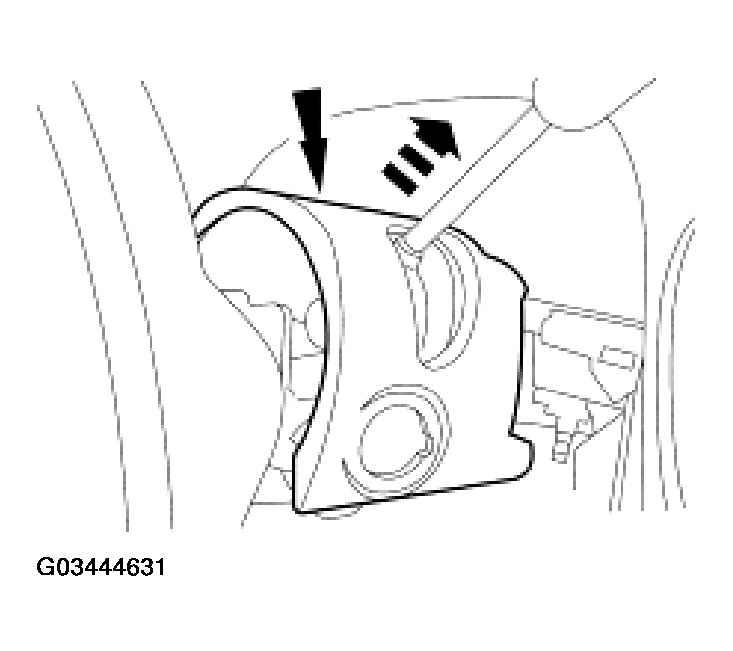

    Fig 1: Removing Upper Steering Column Shroud
    G03444631Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever (7210).
    1. Disconnect the electrical connector.
    2. Remove and discard the gearshift lever pin (7G357).
    3. Remove the gearshift lever.

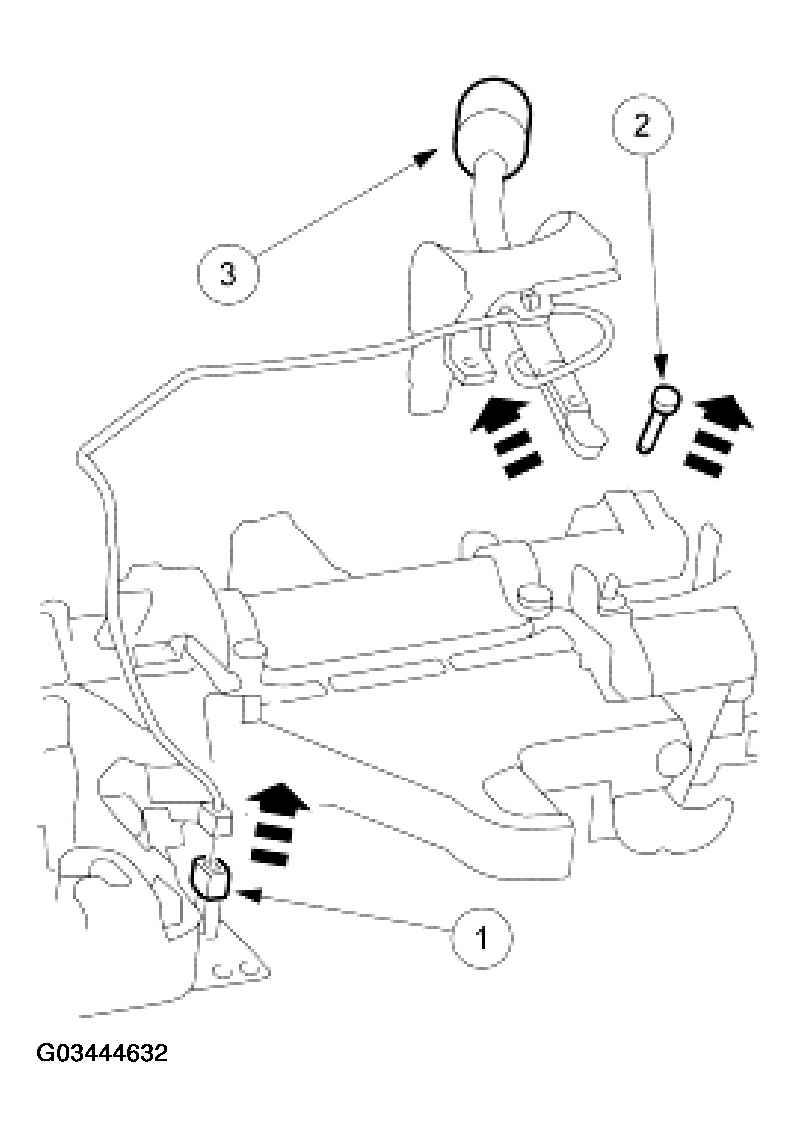

    Fig 2: Removing Gearshift Lever
    G03444632Courtesy of FORD MOTOR CO.
