Brake Shift Interlock Actuator: Removal

  1. Remove the steering column; refer to STEERING COLUMN .
  2. Remove the insert plate and shift lock actuator (3Z719).
    1. Remove the bolts.
    2. Remove the insert plate and shift lock actuator.

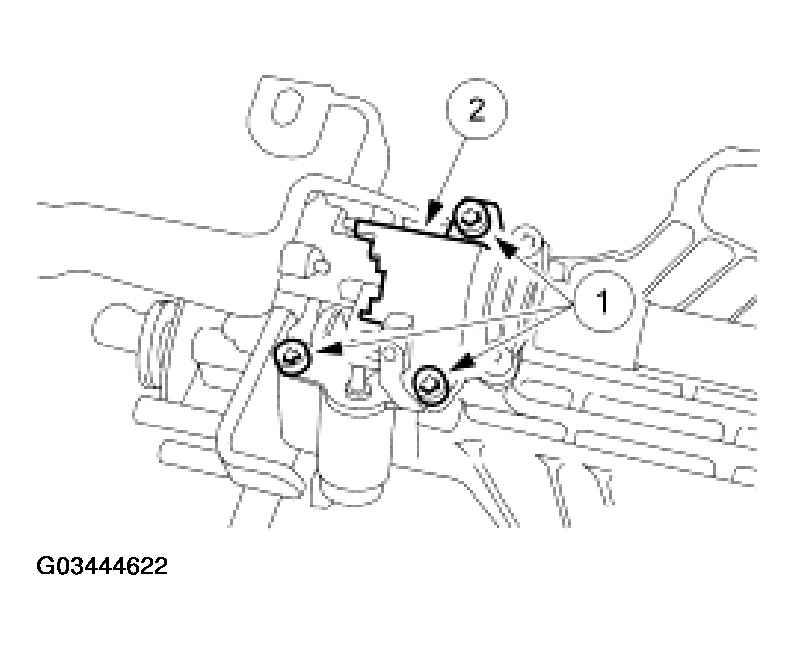

    Fig 1: Removing Insert Plate And Shift Lock Actuator
    G03444622Courtesy of FORD MOTOR CO.
    3. NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced in the field.

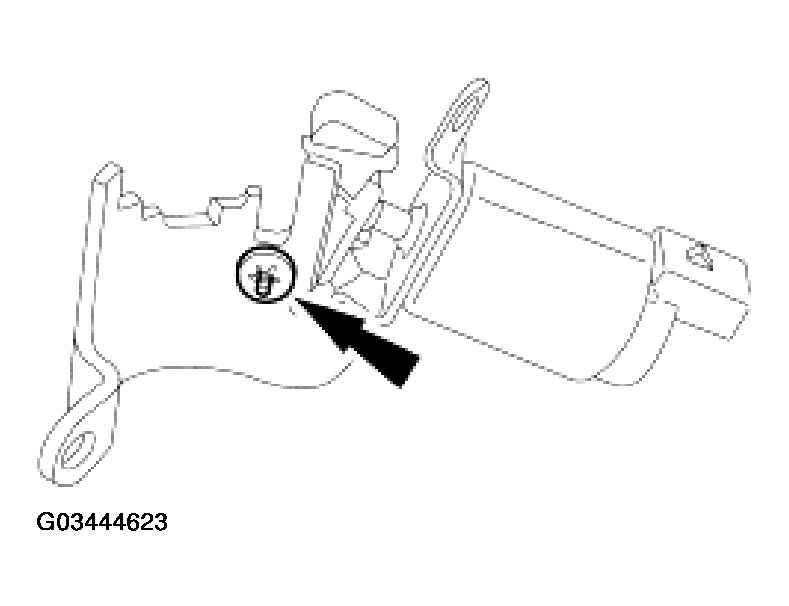

    Fig 2: Removing Shift Lock Actuator Clip
    G03444623Courtesy of FORD MOTOR CO.
  3. Remove the insert plate from the shift lock actuator.
    • Remove and discard the shift lock actuator clip.
