Transmission Insulator and Retainer: Removal

NOTE: 4x2 shown, 4x4 similar.

With the vehicle in NEUTRAL, position it on a hoist.
Remove the nuts.

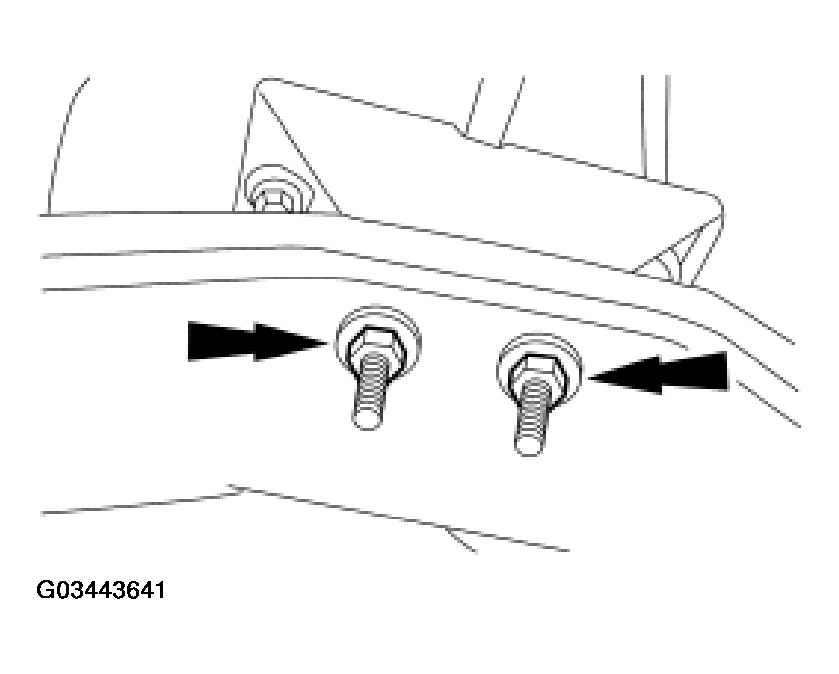

Fig 1: Removing Nuts
Courtesy of FORD MOTOR CO.
Install the high-lift transmission jack with the special tool to the transmission.

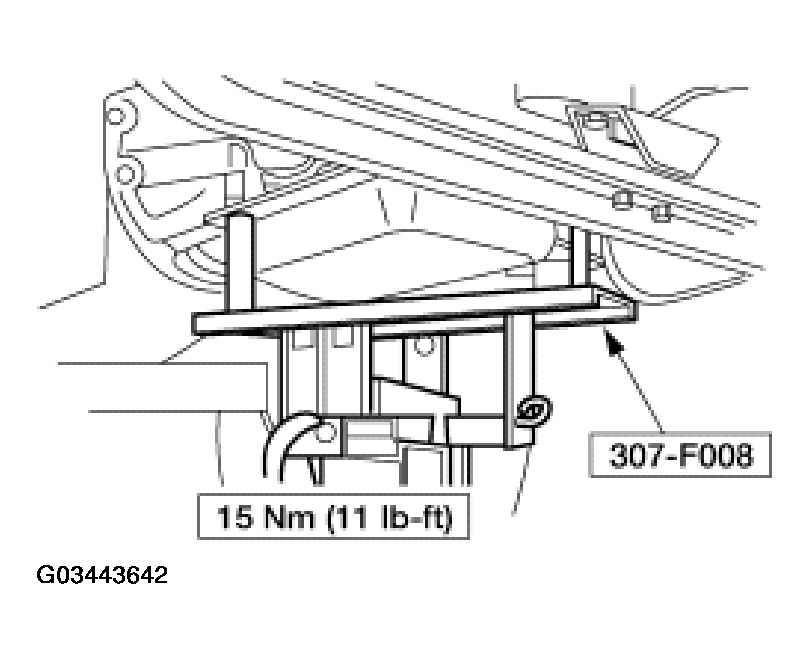

Fig 2: Installing High-Lift Transmission Jack With Special Tool To Transmission
Courtesy of FORD MOTOR CO.
Remove the bolt from the exhaust hanger.

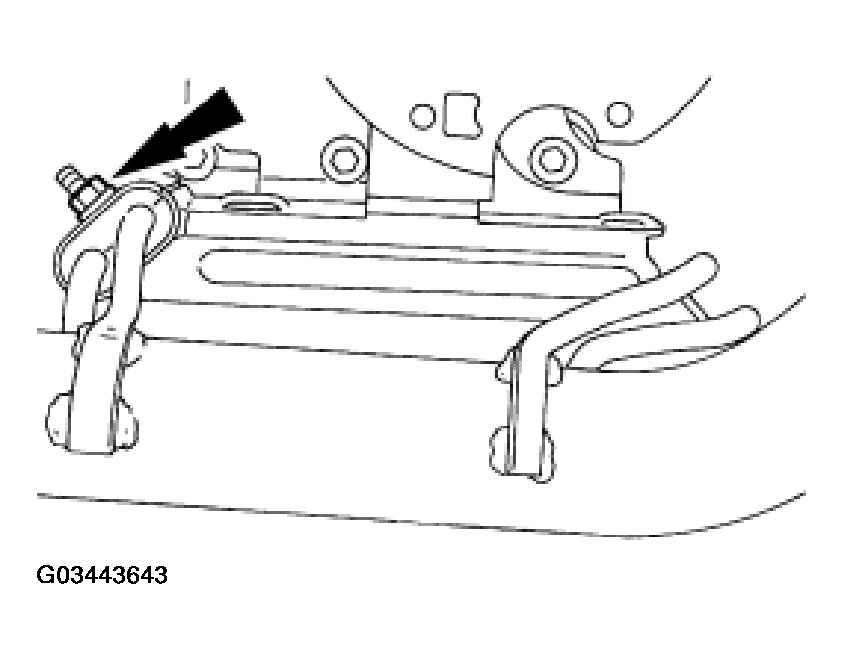

Fig 3: Removing Bolt From Exhaust Hanger
Courtesy of FORD MOTOR CO.

CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

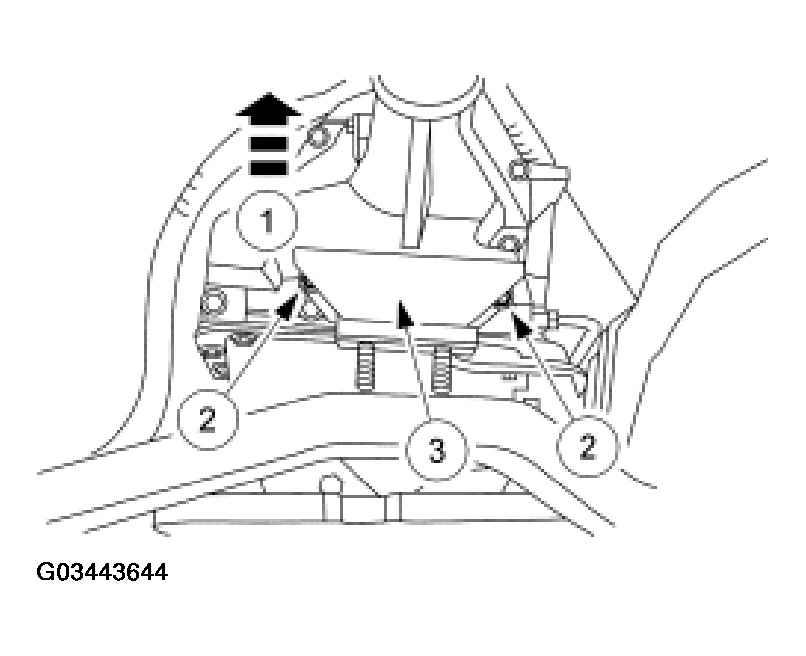

Fig 4: Removing Rear Transmission Mount

Courtesy of FORD MOTOR CO.

Remove the rear transmission mount.
1. Raise the transmission up off the rear crossmember support.
2. Remove the bolts.
3. Remove the rear transmission mount.
