Transmission Filler Tube: Removal

  1. Remove the fluid level indicator.

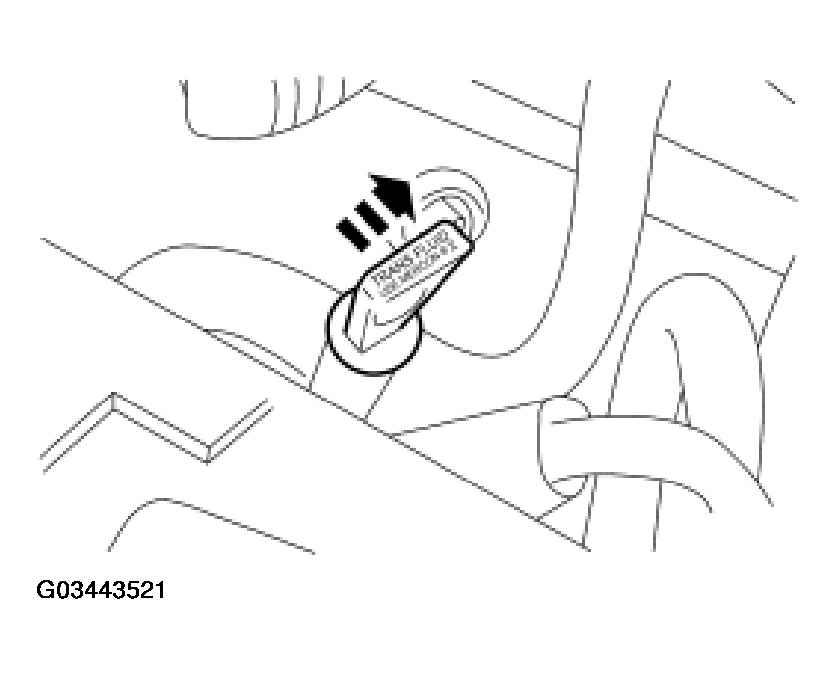

    Fig 1: Removing Fluid Level Indicator
    G03443521Courtesy of FORD MOTOR CO.
  2. Raise the vehicle on a hoist.
  3. Remove the RH front wheel.
  4. Remove the inner wheel liner.

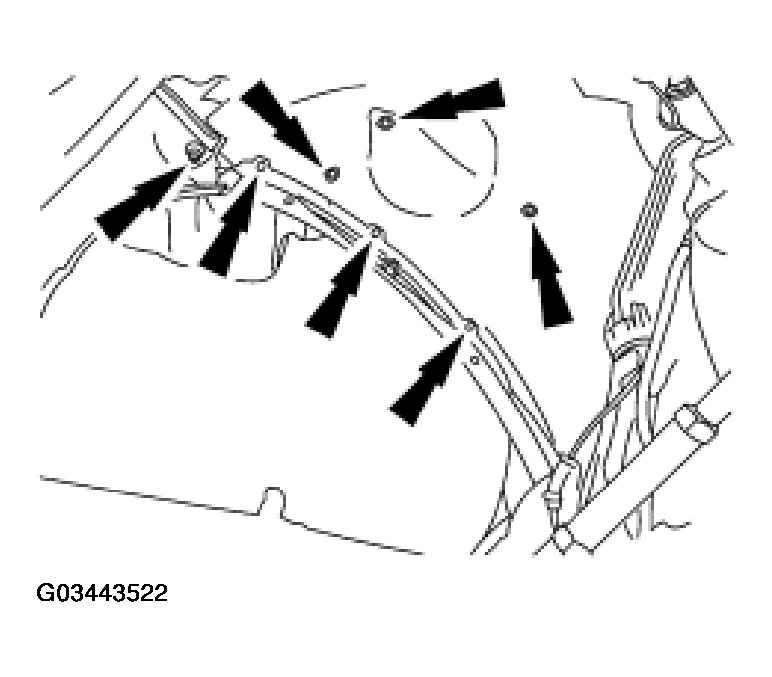

    Fig 2: Removing Inner Wheel Liner
    G03443522Courtesy of FORD MOTOR CO.
  5. Remove the bolt.

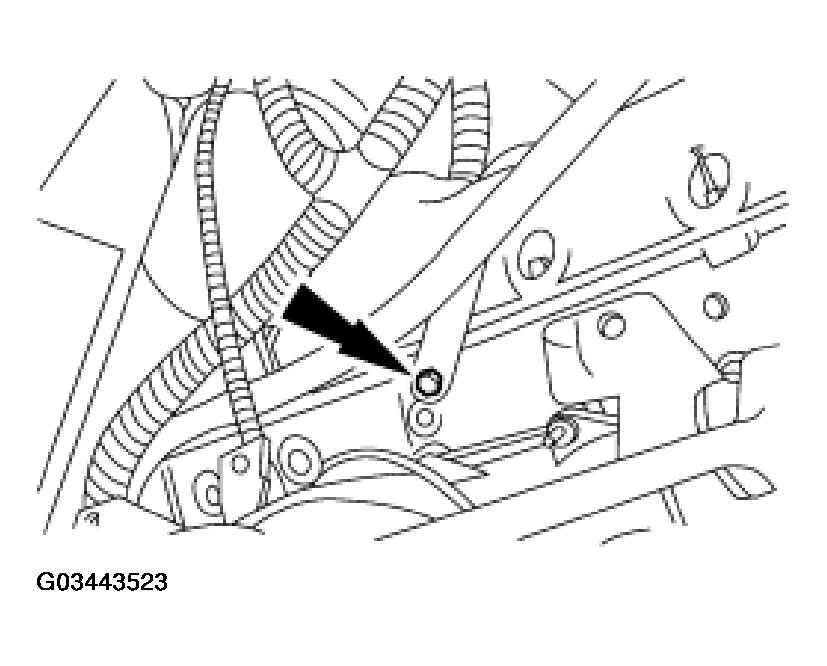

    Fig 3: Removing Bolt
    G03443523Courtesy of FORD MOTOR CO.
    6. NOTE: It may be necessary to disconnect the wiring harness from the starter motor to remove the fluid filler tube.

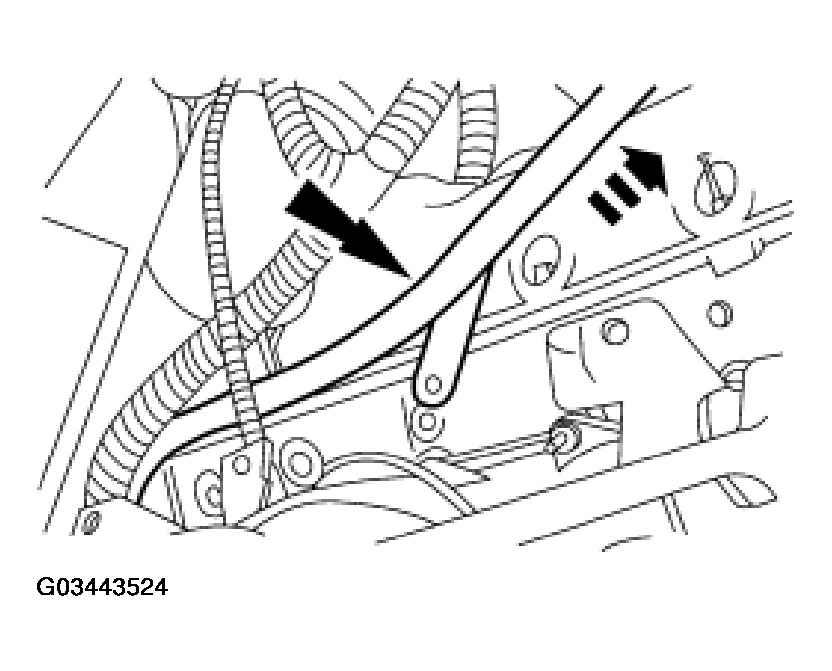

    Fig 4: Removing Fluid Filler Tube
    G03443524Courtesy of FORD MOTOR CO.
  6. Remove the fluid filler tube.
