Forward Hub and Ring Gear: Disassembly

  1. Remove the No. 8C forward clutch hub thrust washer.

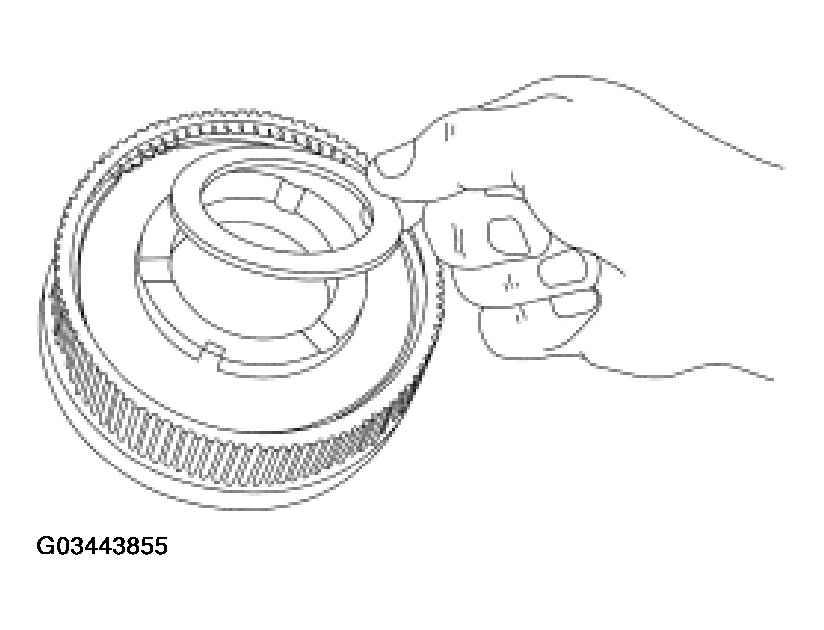

    Fig 1: Removing No. 8C Forward Clutch Hub Thrust Washer
    G03443855Courtesy of FORD MOTOR CO.
  2. Remove the forward hub retaining ring.

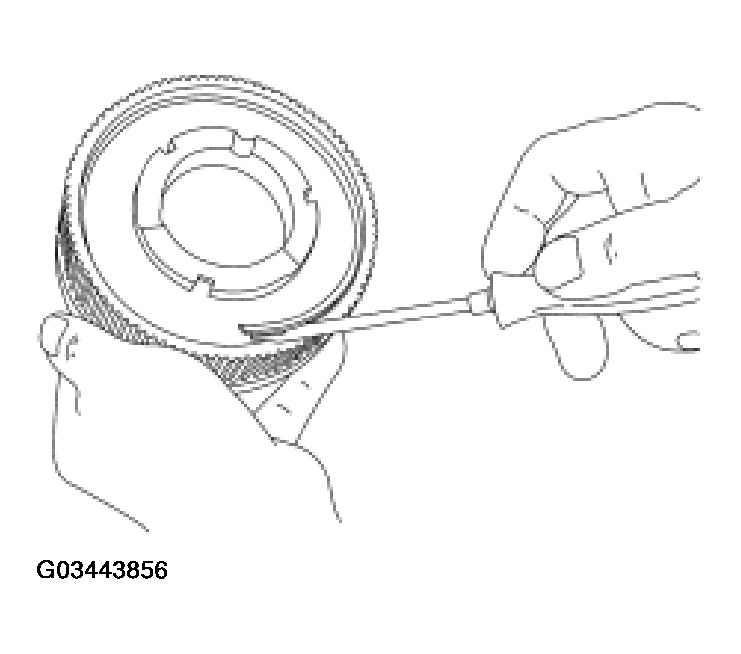

    Fig 2: Removing Forward Hub Retaining Ring
    G03443856Courtesy of FORD MOTOR CO.
  3. Remove the forward hub.

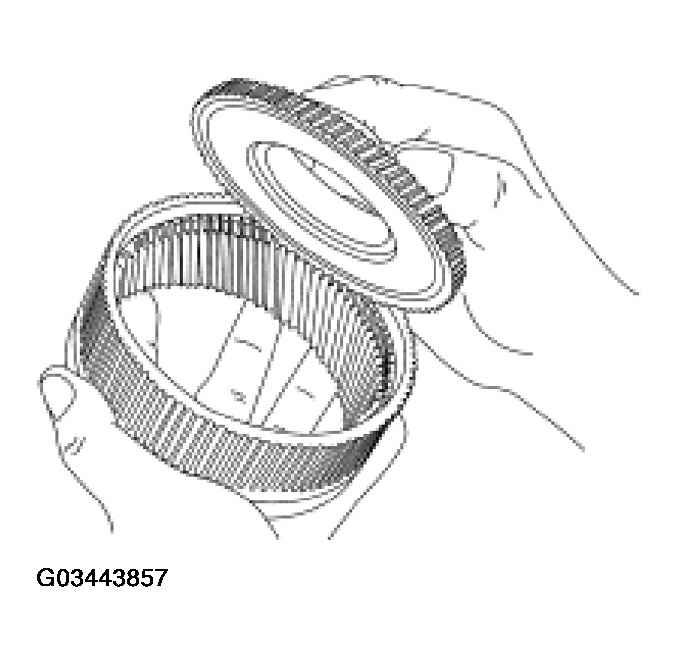

    Fig 3: Removing Forward Hub
    G03443857Courtesy of FORD MOTOR CO.
