Pinpoint Test K: Excessive Steering Wheel Play

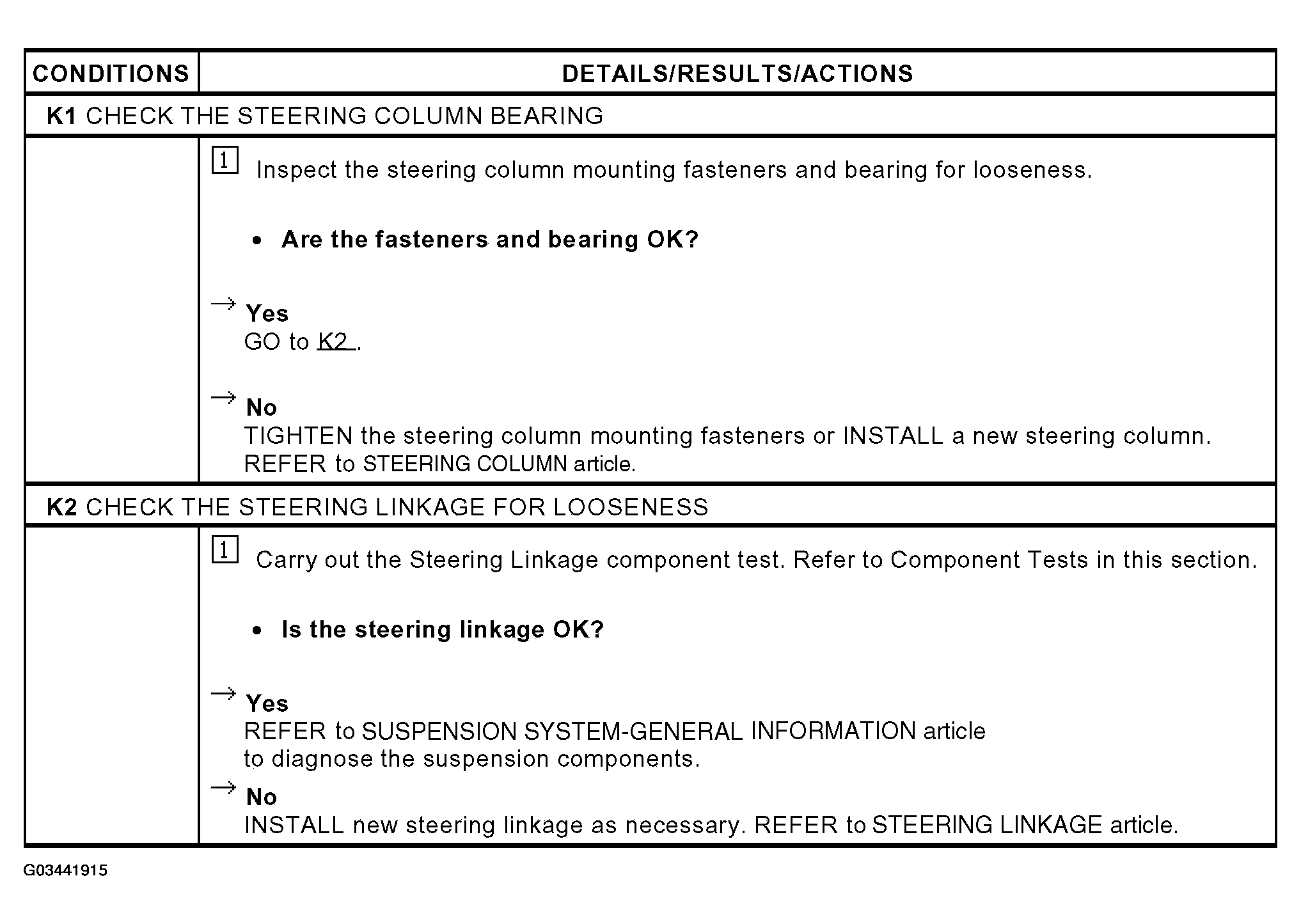

Fig 1: Pinpoint Test K: Excessive Steering Wheel Play

G03441915

Courtesy of FORD MOTOR CO.
