Transfer Case

WARNING: This page is about a different variant/trim than selected.

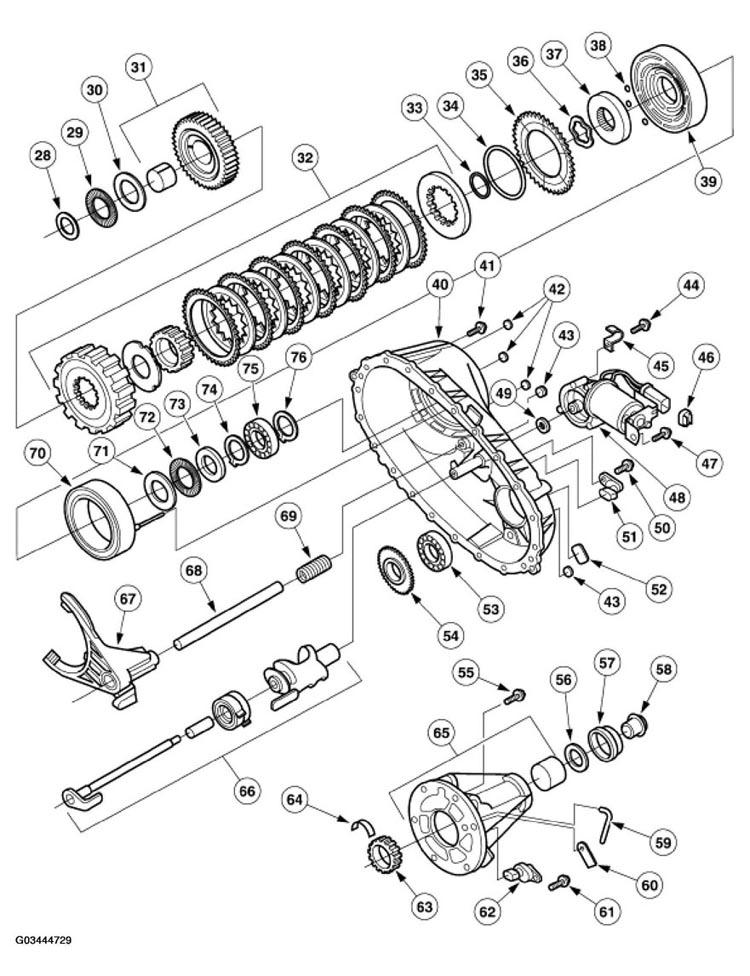

Fig 1: Identifying Transfer Case Components (1 Of 3)
G03444729Courtesy of FORD MOTOR CO.

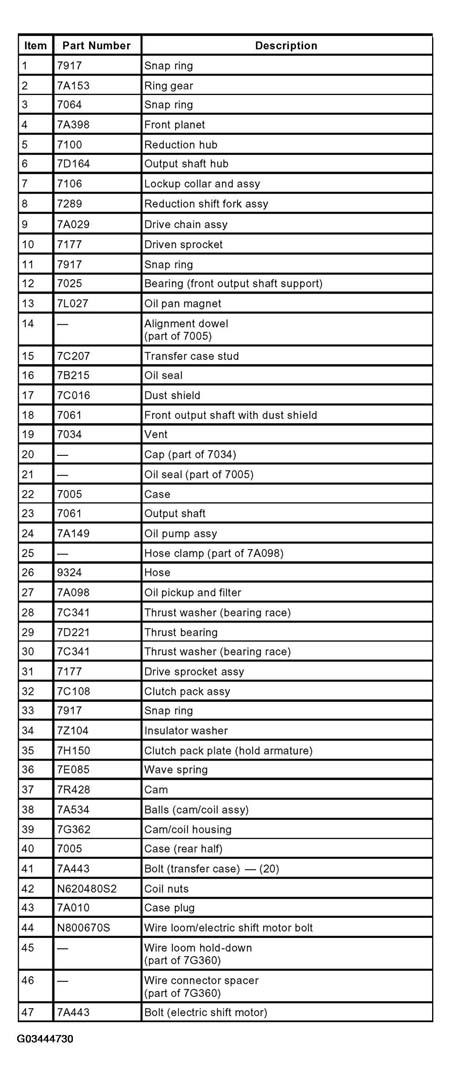

Fig 2: Identifying Transfer Case Components (2 Of 3)
G03444730Courtesy of FORD MOTOR CO.

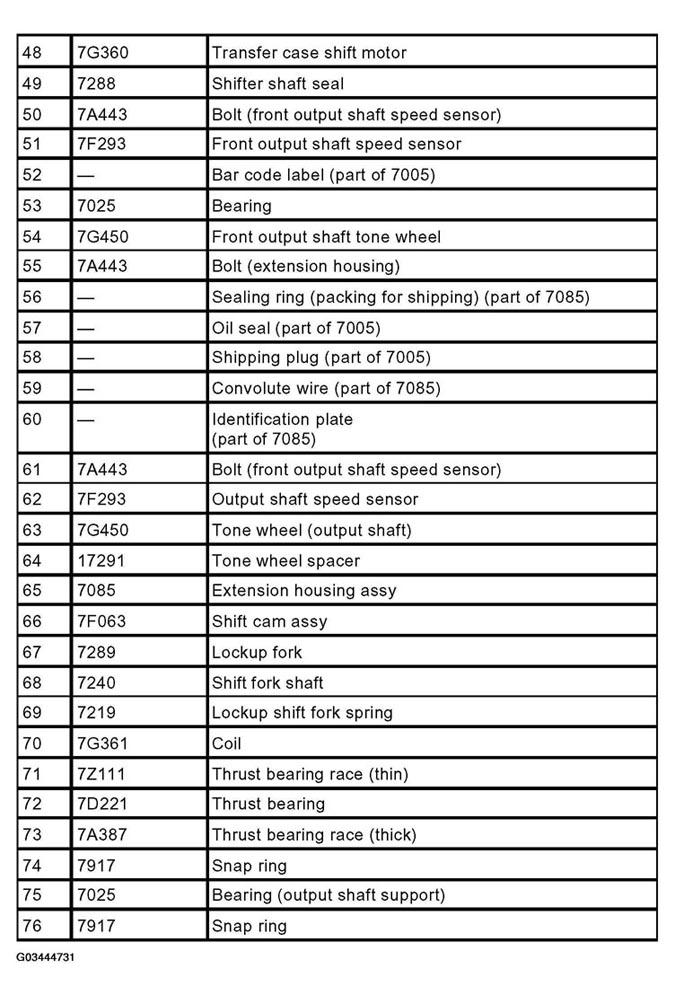

Fig 3: Identifying Transfer Case Components (3 Of 3)
G03444731Courtesy of FORD MOTOR CO.
