Camshaft Lobe Lift: Procedure

  1. Use a Dial Indicator Gauge with Holding Fixture to measure camshaft intake/exhaust lobe lift.
    • Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
    • For the procedure, refer to ENGINE - 4.6L AND 5.4L (2V) for Expedition or ENGINE 5.4L (4V) for Navigator.

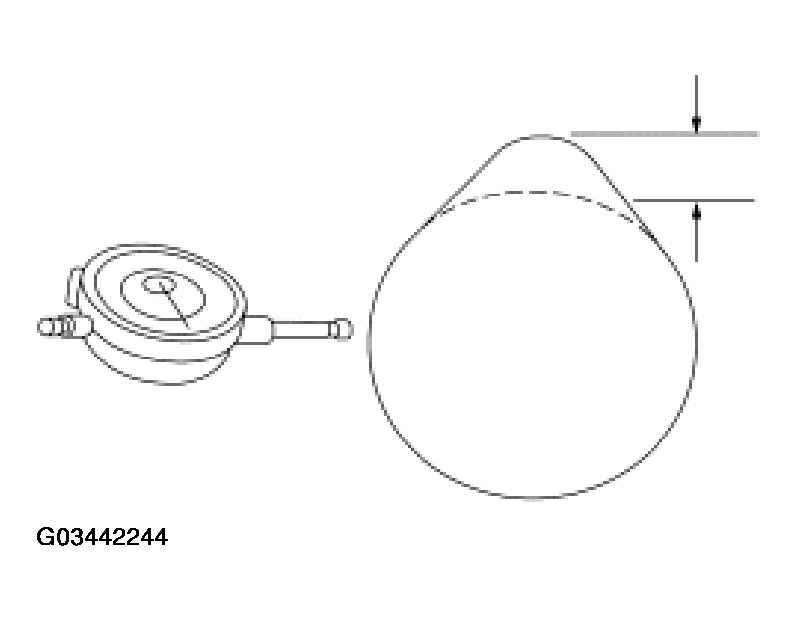

    Fig 1: Measuring Camshaft Intake/Exhaust Lobe Lift
    G03442244Courtesy of FORD MOTOR CO.
