Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly

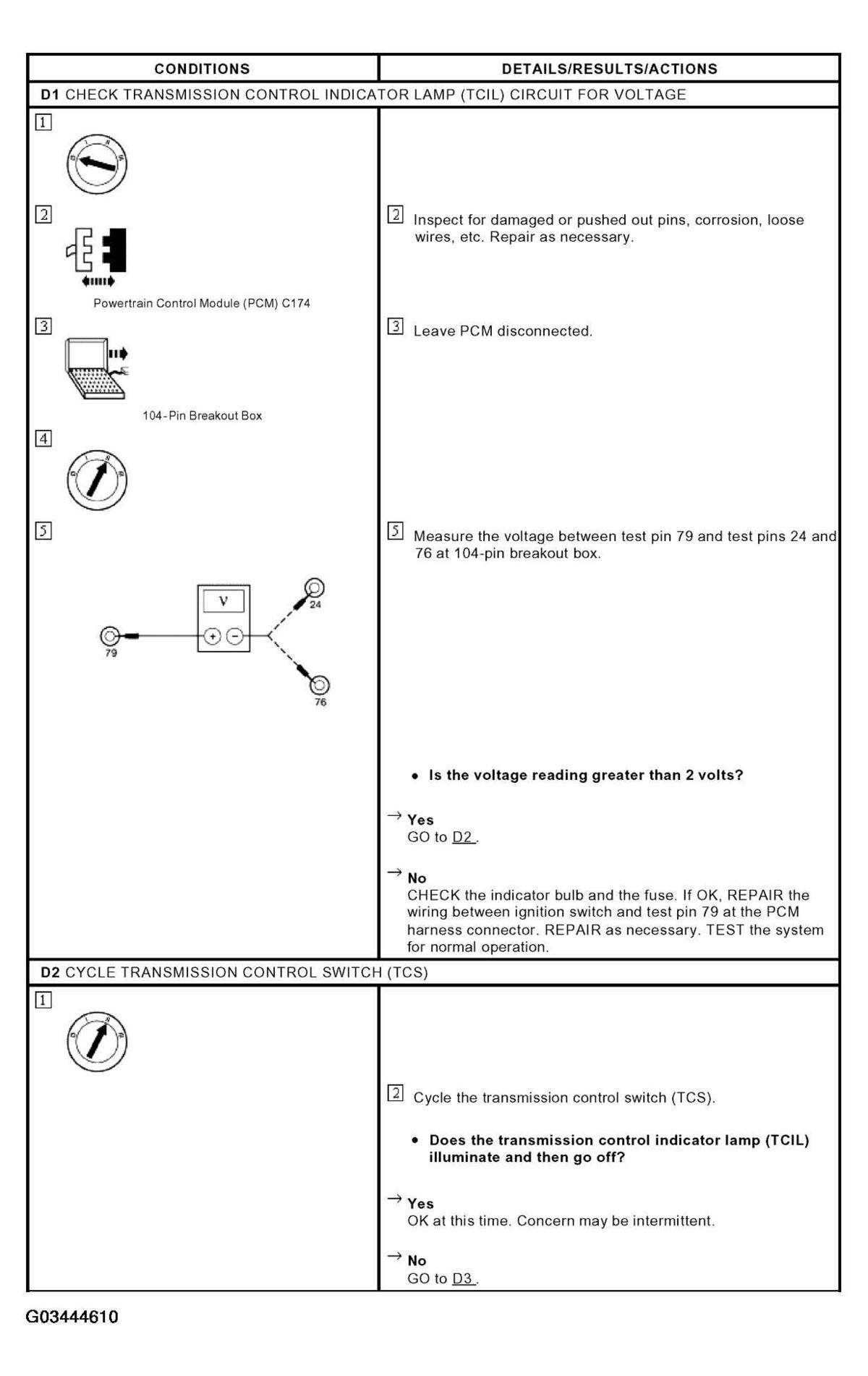

Fig 1: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (D1-D2)
G03444610Courtesy of FORD MOTOR CO.

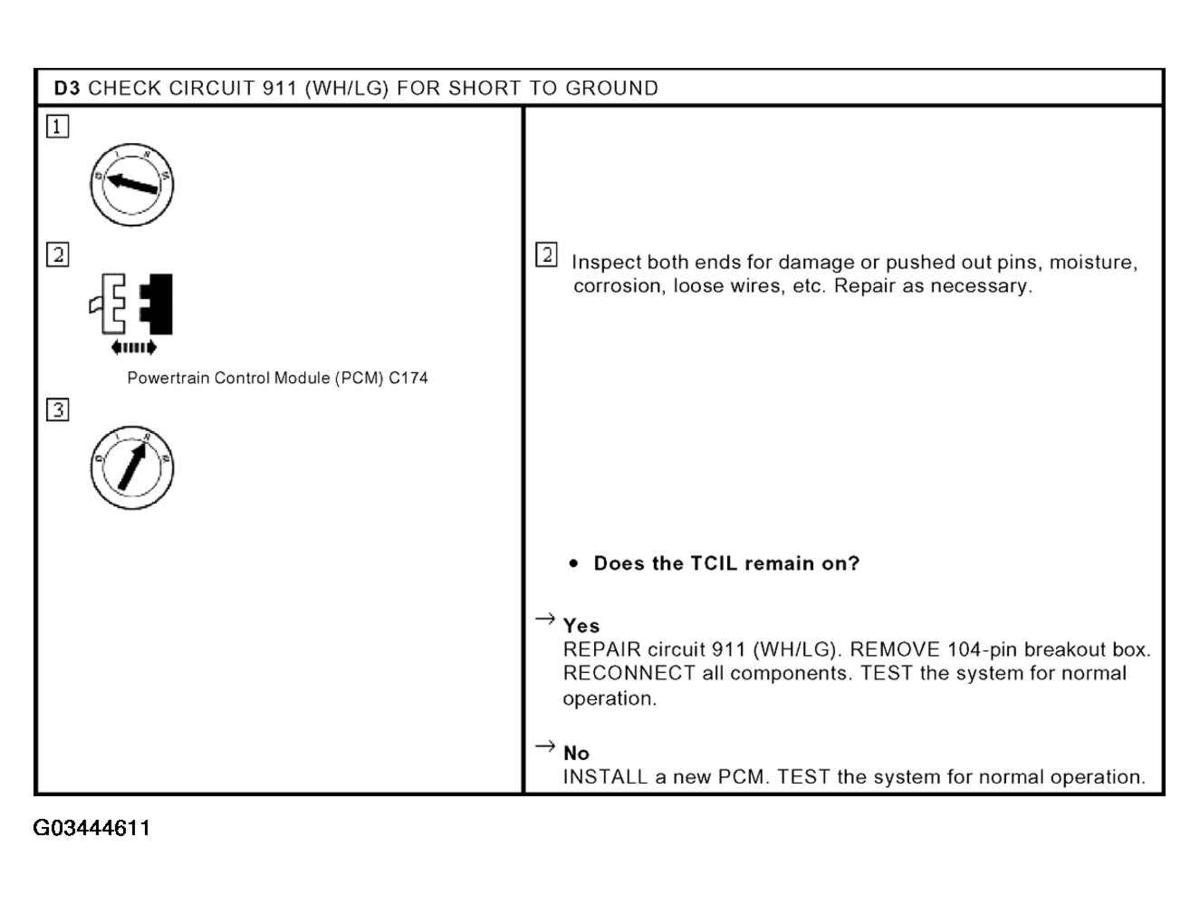

Fig 2: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (D3)
G03444611Courtesy of FORD MOTOR CO.
