Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

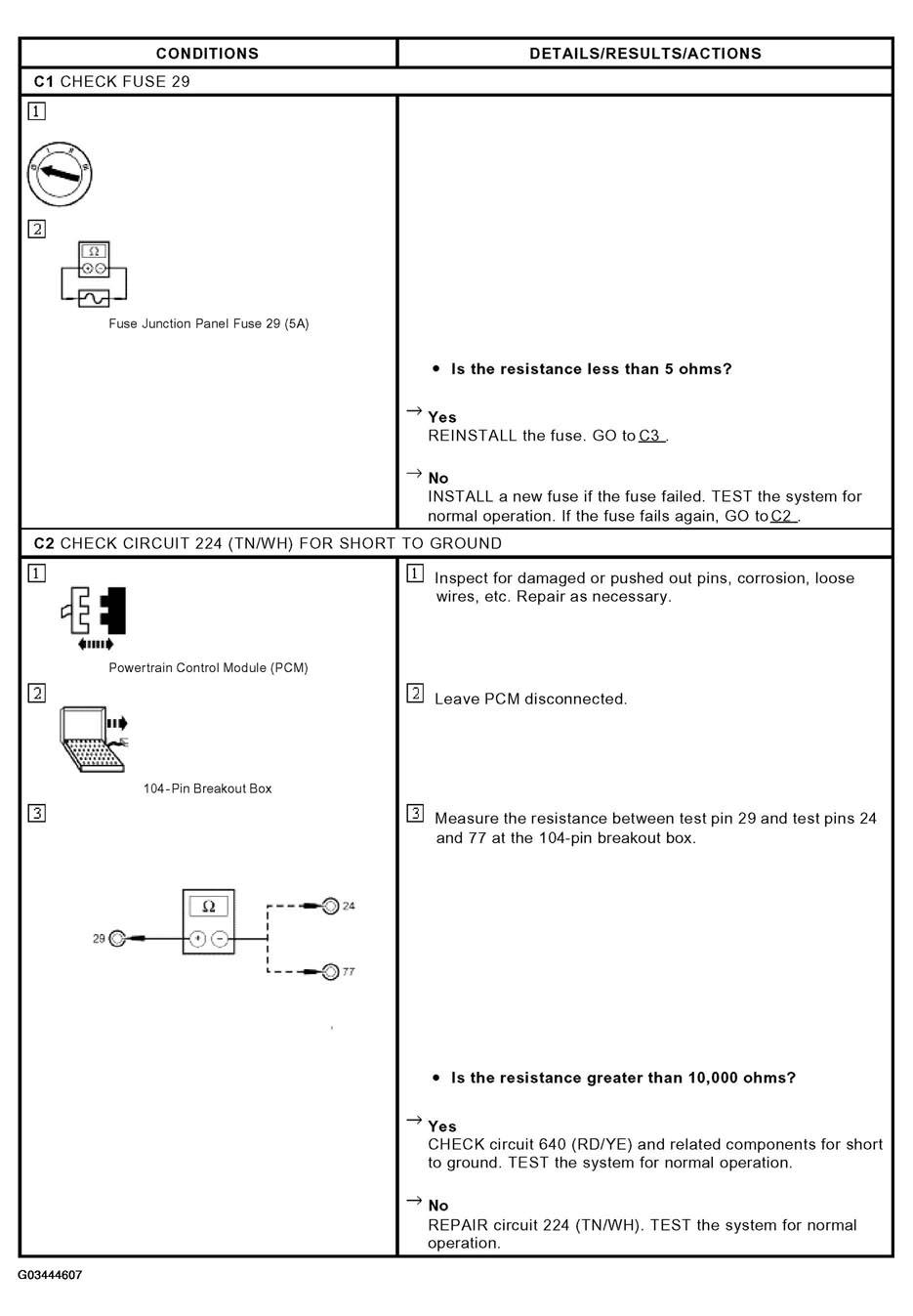

Fig 1: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C1-C2)
G03444607Courtesy of FORD MOTOR CO.

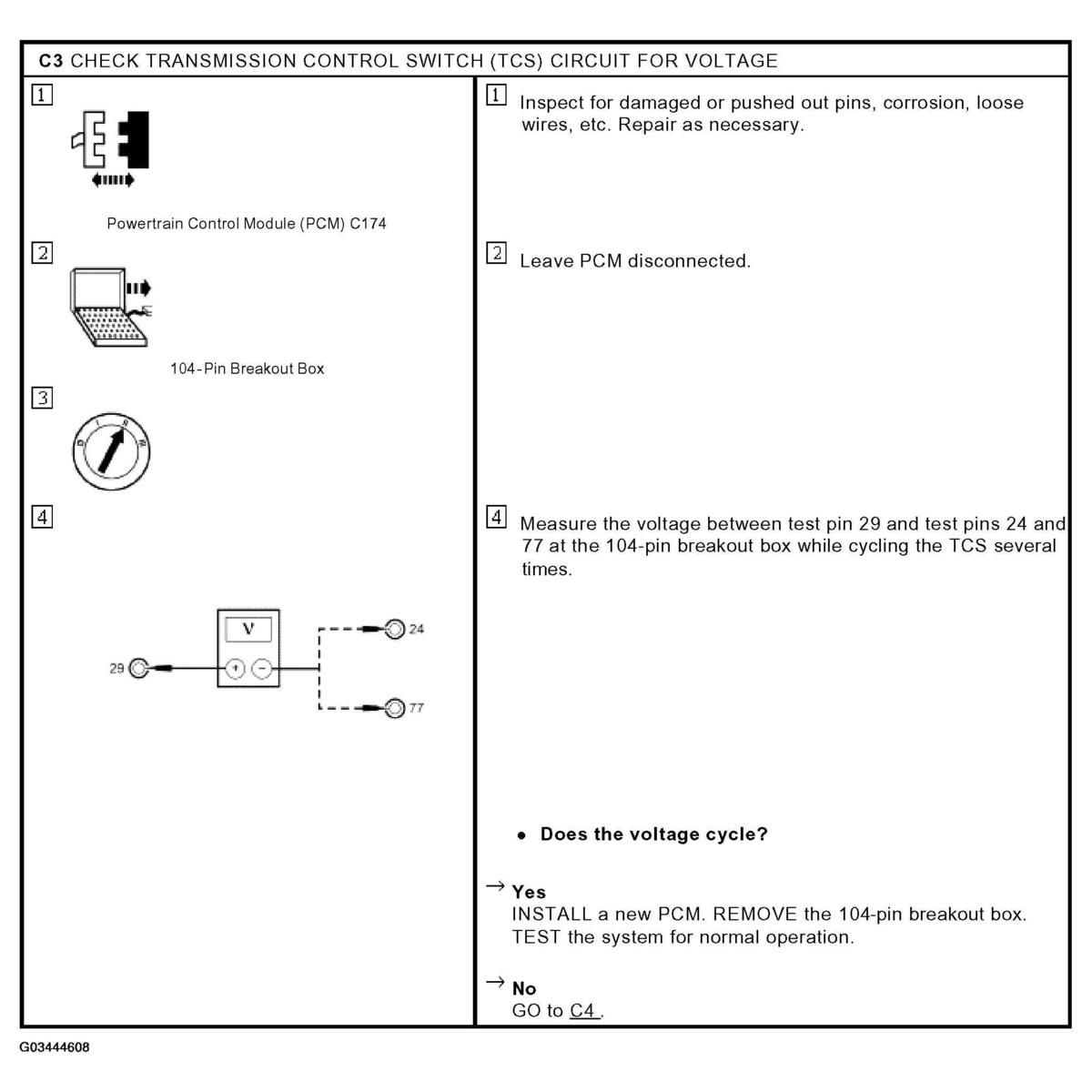

Fig 2: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C3)
G03444608Courtesy of FORD MOTOR CO.

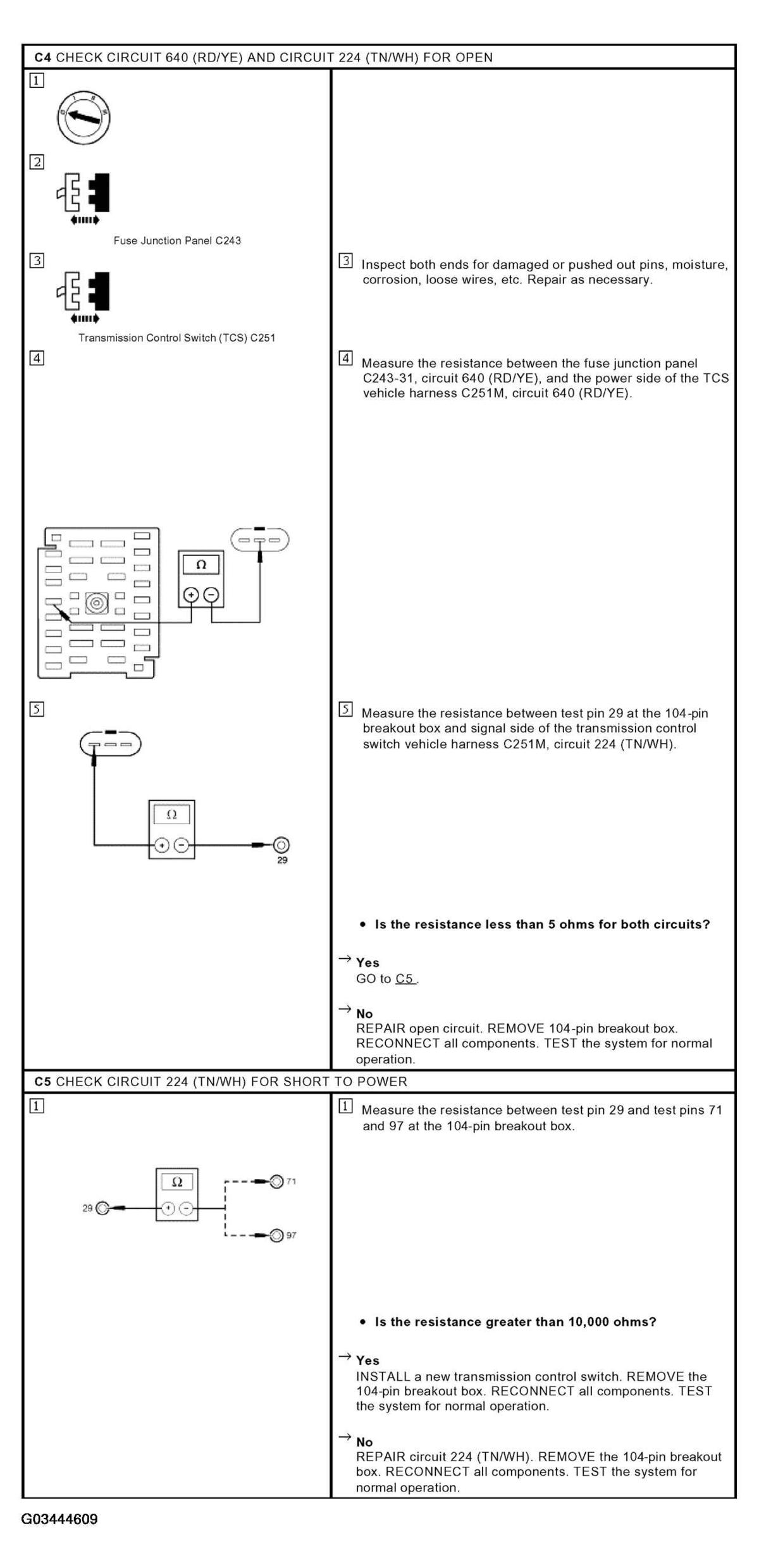

Fig 3: Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (C4-C5)
G03444609Courtesy of FORD MOTOR CO.
