Transmission Insulator and Retainer: Installation

    CAUTION: Be sure not to raise the back of the transmission too high. If it makes contact with the underbody, damage to the TSS and OSS sensors will occur.

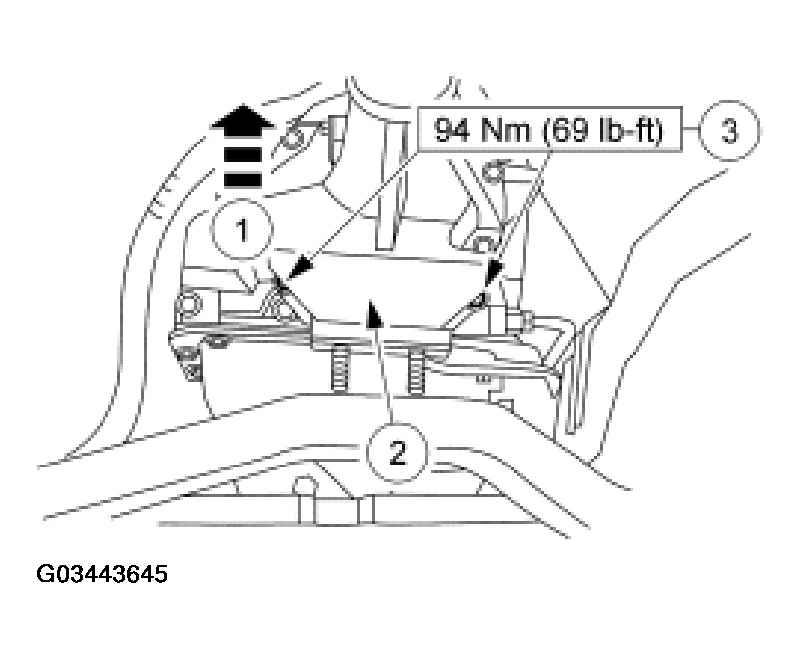

    Fig 1: Installing Rear Transmission Mount
    G03443645Courtesy of FORD MOTOR CO.
  1. Install the rear transmission mount.
    1. Raise the transmission up.
    2. Install the rear transmission mount.
    3. Install the bolts.
  2. Lower the transmission on to the rear crossmember support.

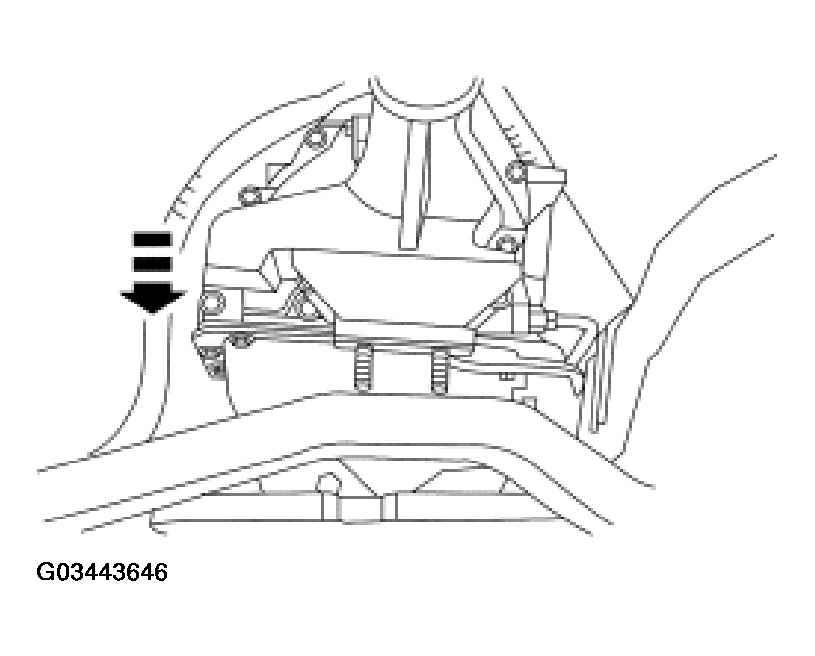

    Fig 2: Lowering Transmission Onto Rear Crossmember Support
    G03443646Courtesy of FORD MOTOR CO.
  3. Install the exhaust hanger bolt.

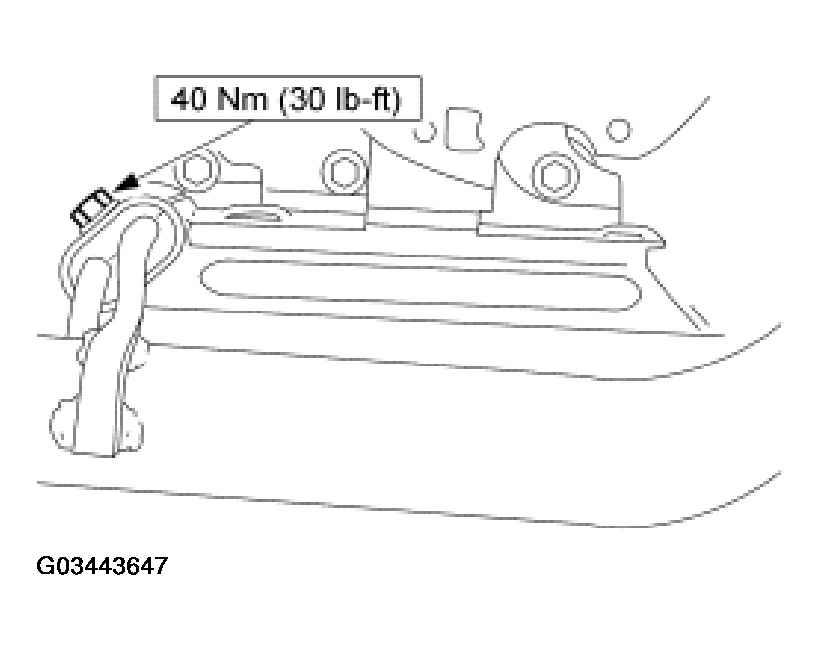

    Fig 3: Installing Exhaust Hanger Bolt
    G03443647Courtesy of FORD MOTOR CO.
  4. Install the nuts.

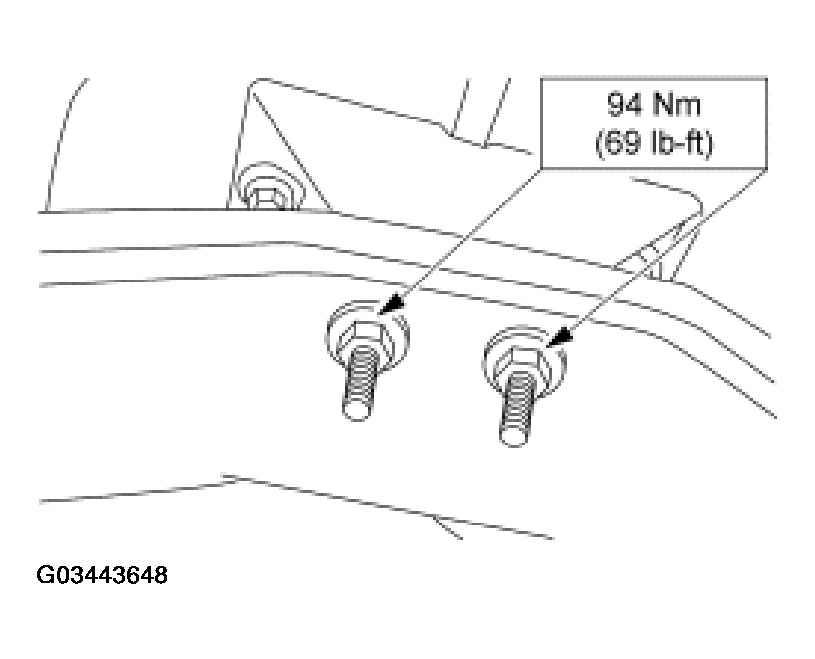

    Fig 4: Installing Nuts
    G03443648Courtesy of FORD MOTOR CO.
  5. Remove the high-lift transmission jack with the special tool from the transmission.

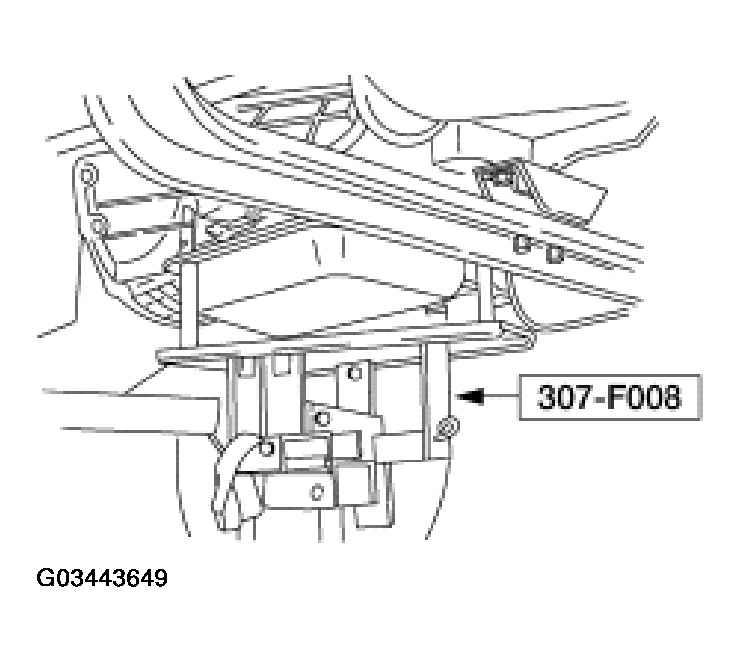

    Fig 5: Removing High-Lift Transmission Jack With Special Tool From Transmission
    G03443649Courtesy of FORD MOTOR CO.
  6. Install the transmission fluid pan-to-case retaining bolts.

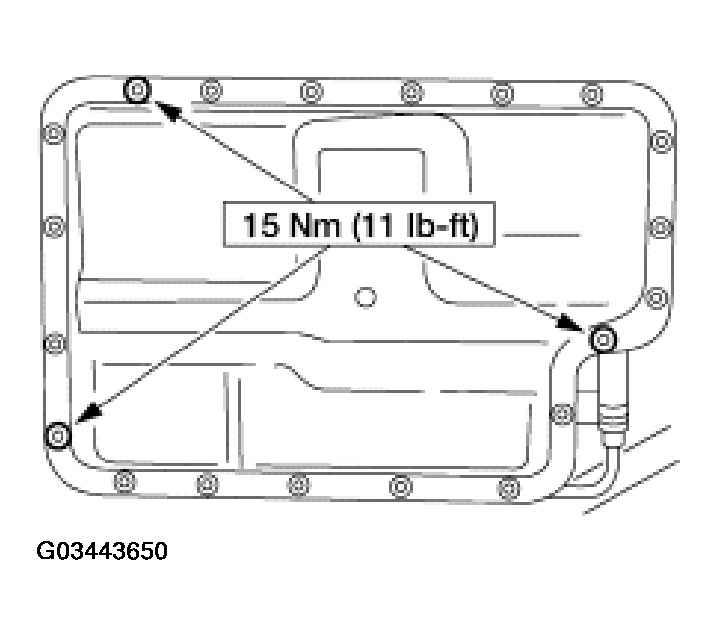

    Fig 6: Installing Transmission Fluid Pan-To-Case Retaining Bolts
    G03443650Courtesy of FORD MOTOR CO.
  7. Lower the vehicle.
