Transmission Filler Tube: Installation

    NOTE: Coat the O-ring at the bottom of the fluid filler tube with transmission fluid. If removed, install the starter wiring harness.

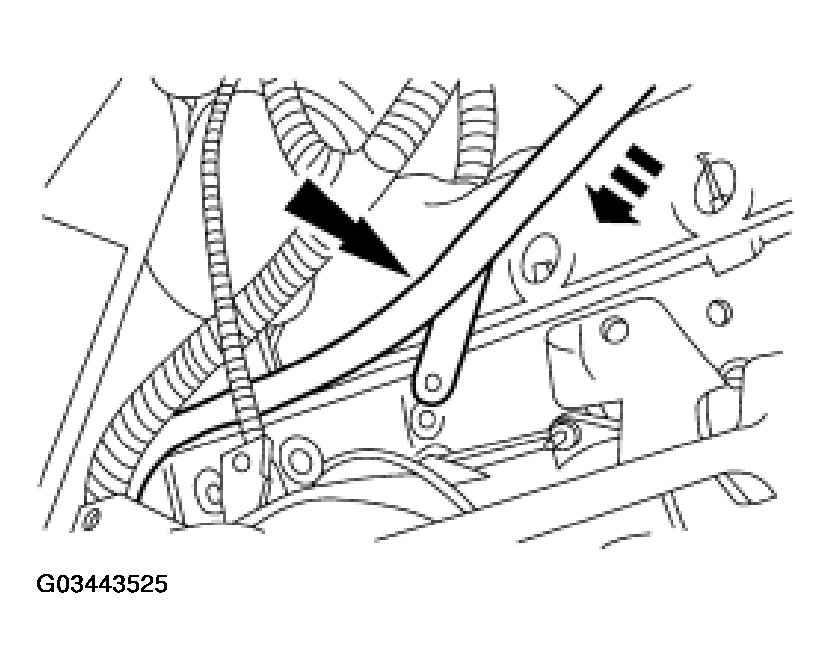

    Fig 1: Installing Fluid Filler Tube
    G03443525Courtesy of FORD MOTOR CO.
  1. Install the fluid filler tube.
  2. Install the bolt.

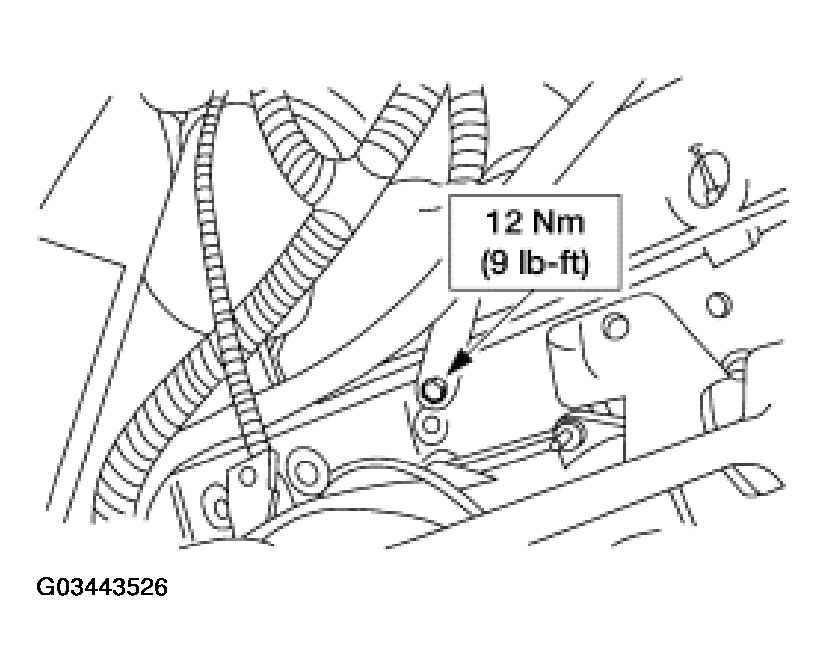

    Fig 2: Installing Bolt
    G03443526Courtesy of FORD MOTOR CO.
  3. Install the inner wheel liner.

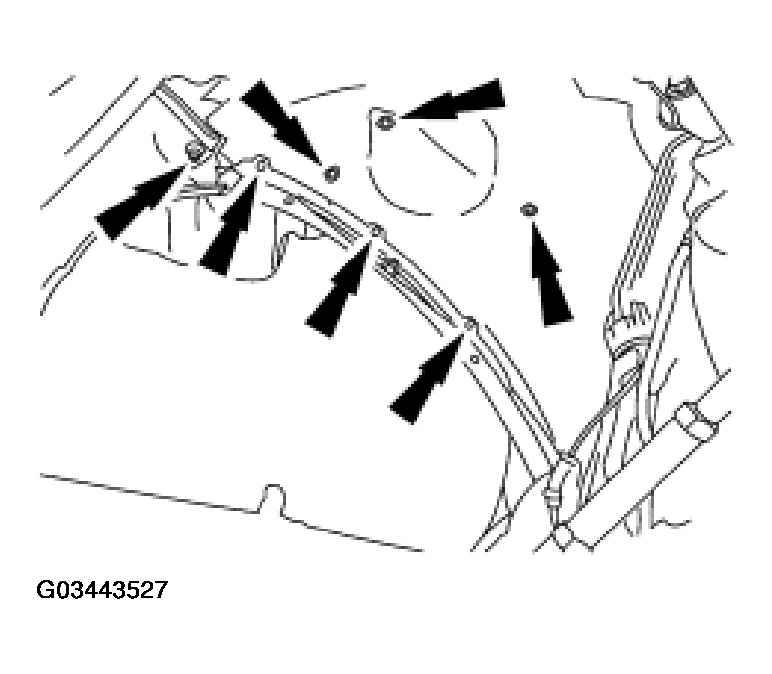

    Fig 3: Installing Inner Wheel Liner
    G03443527Courtesy of FORD MOTOR CO.
  4. Install the RH front wheel.
  5. Lower the vehicle.
  6. Install the fluid level indicator.

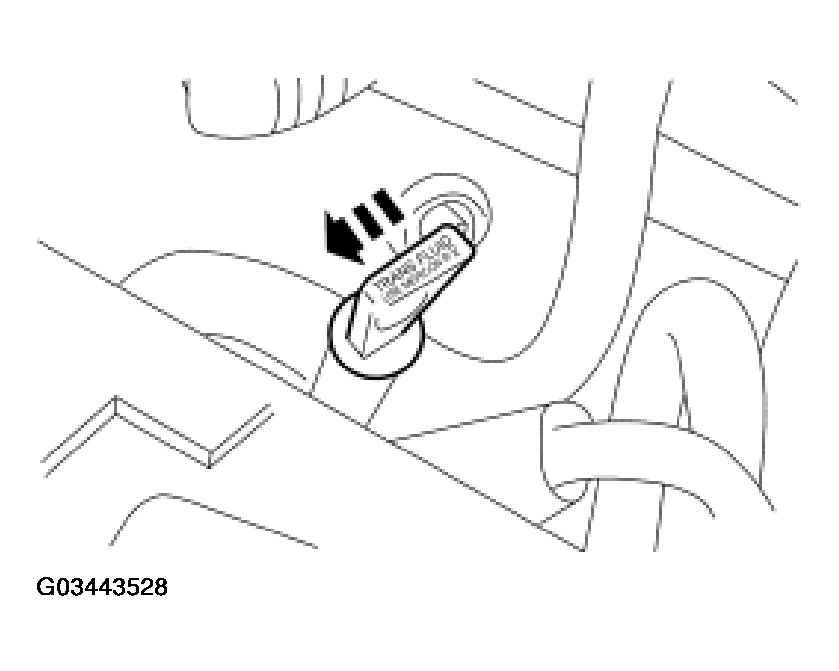

    Fig 4: Installing Fluid Level Indicator
    G03443528Courtesy of FORD MOTOR CO.
